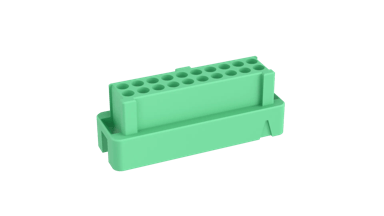

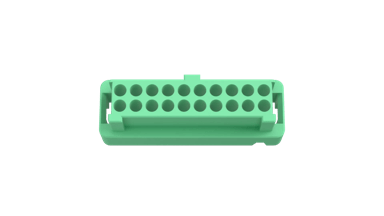

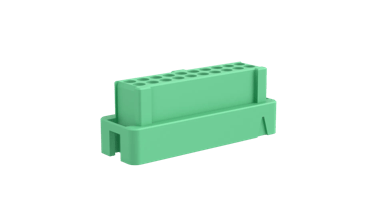

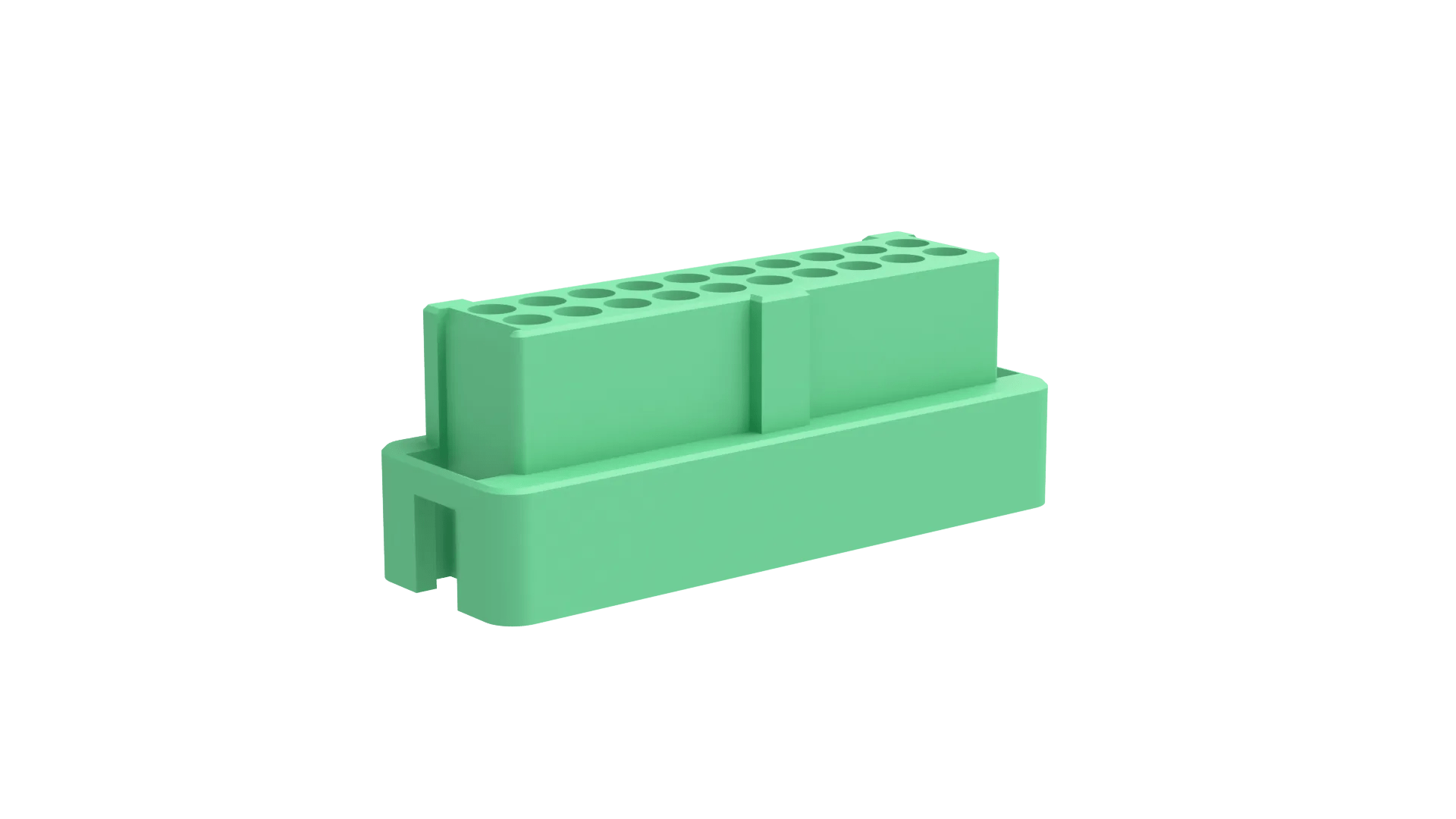

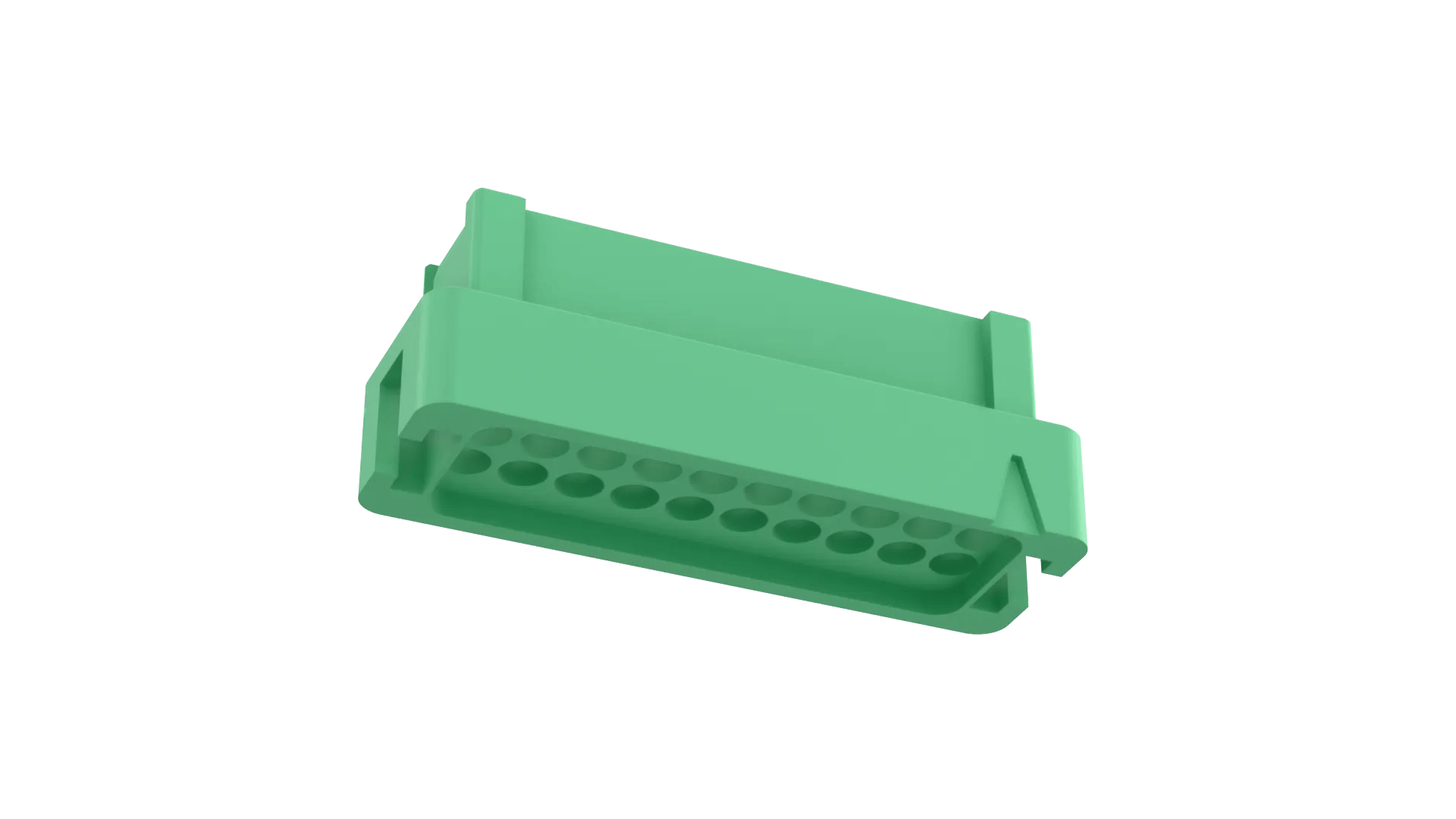

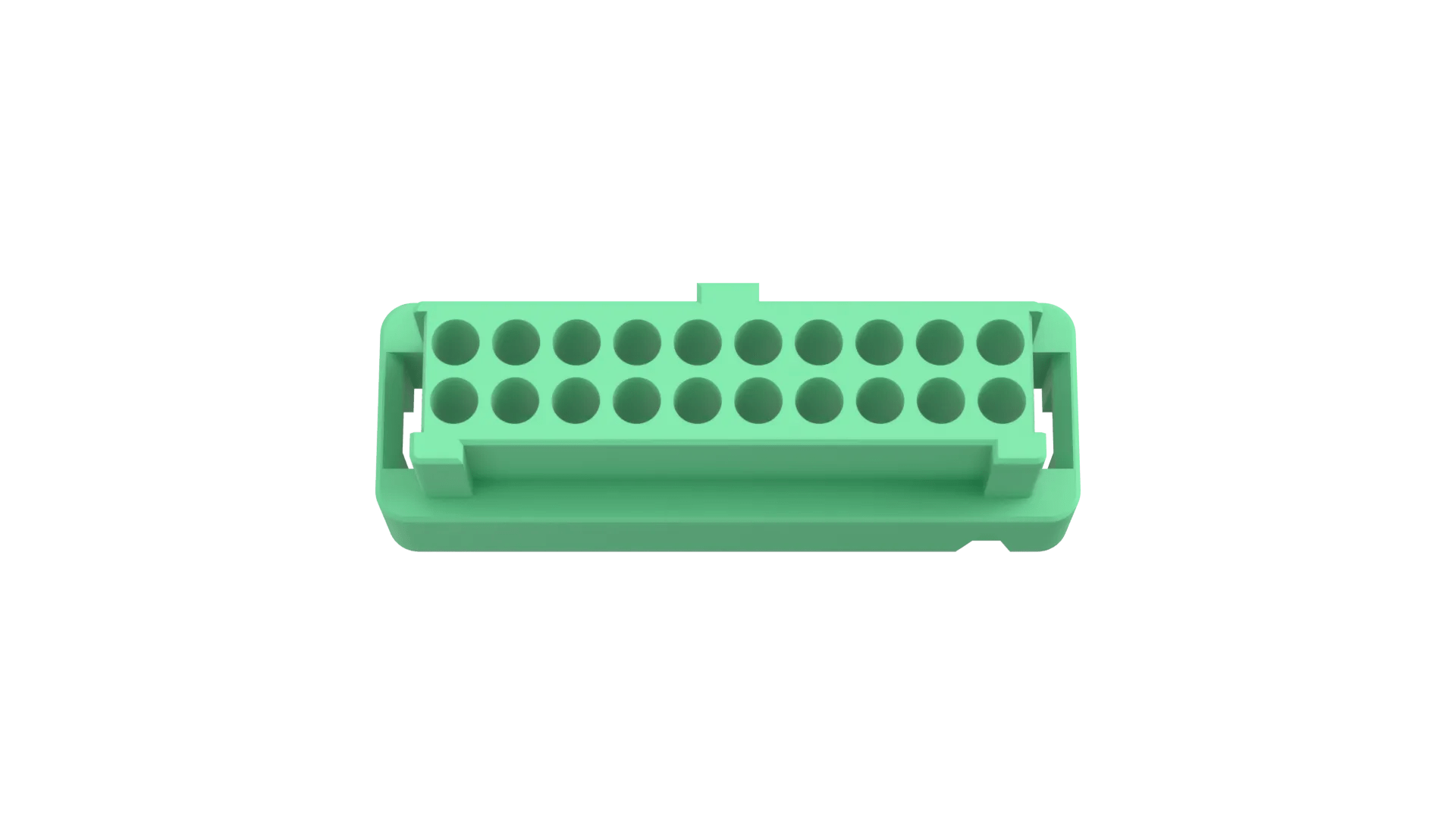

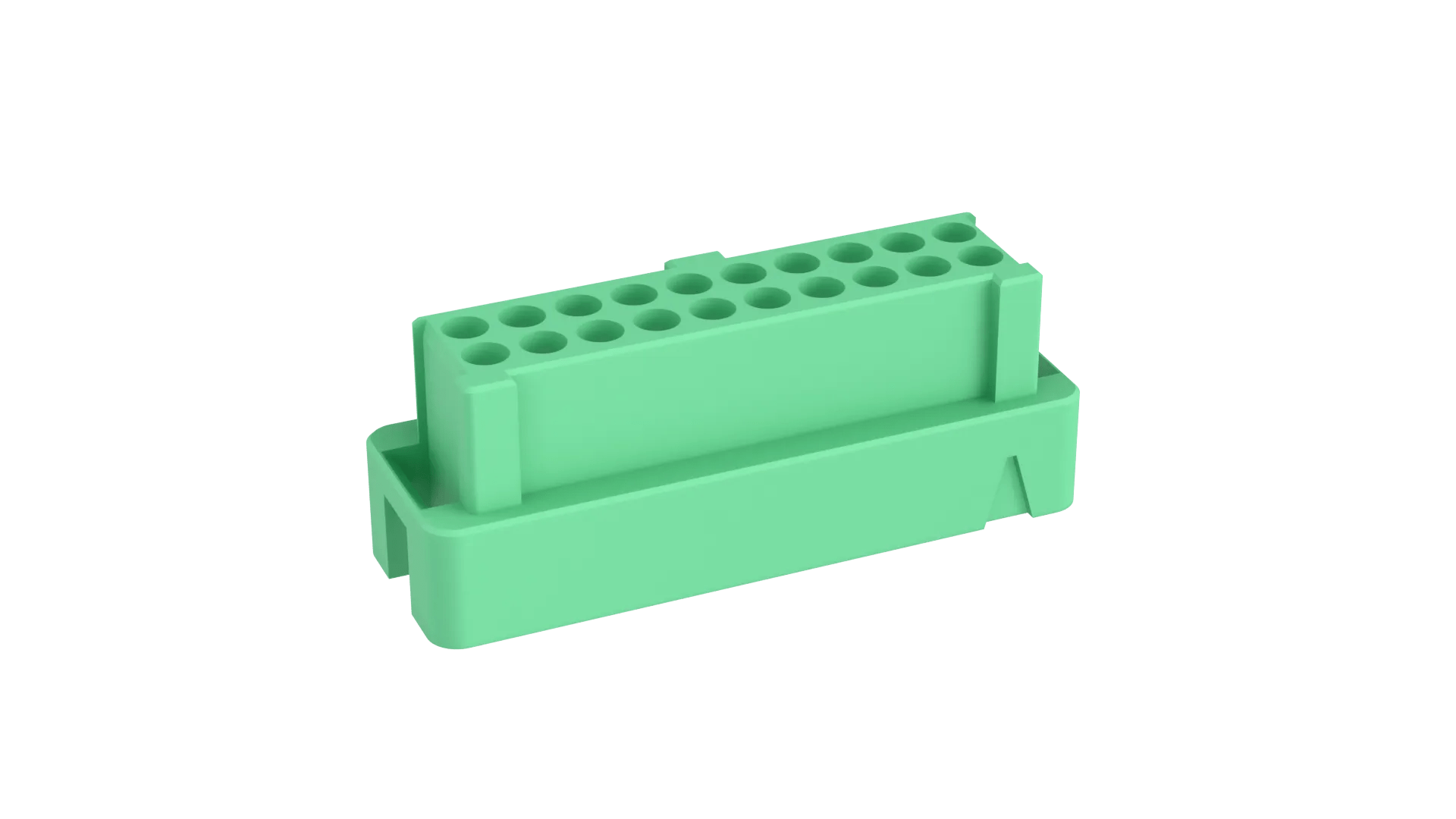

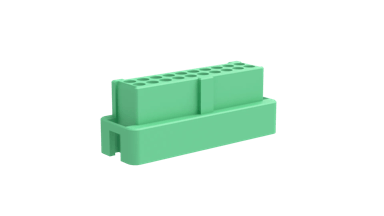

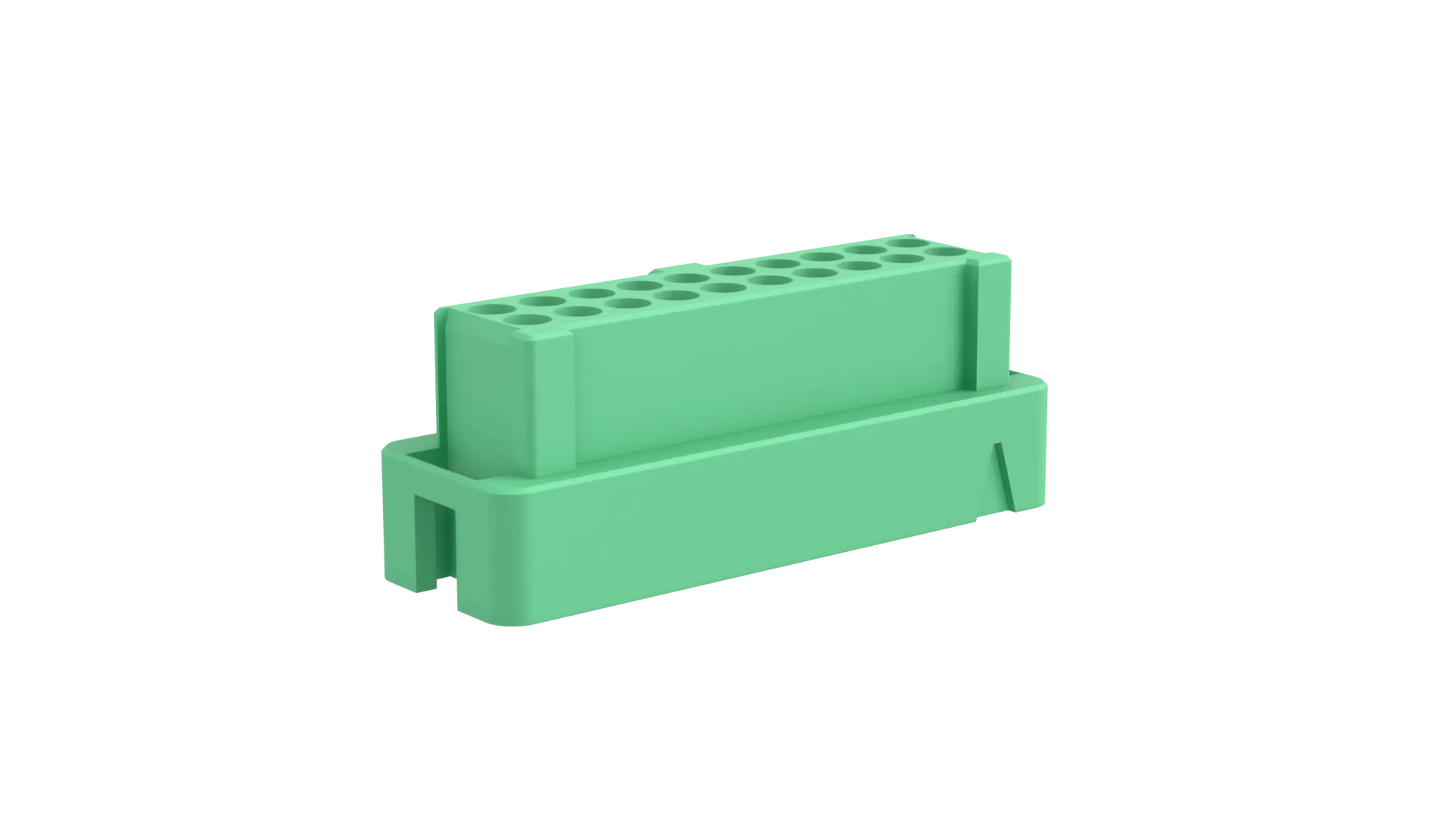

Gecko DIL Female Crimp Connector Housing (compatible with latches), 10+10 contacts

HRi

Traceparts account required

G125-2042096L0

Gecko DIL Female Crimp Connector Housing (compatible with latches), 10+10 contacts


1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Female Double Row Crimp Connector Housing - 20 (10+10) contacts. Compatible housing style for male connectors with latches.

  • Use with crimp contacts G125-0010005 (for 26 AWG), G125-0020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-FW series.

  • For complete pin numbering or pin out information, see Component Specification C125XX.
