  • G125-MC11005L4-0450L - 5+5 Pos. Male DIL 26AWG Cable Assembly, 450mm, single-end, Latches
  • Youtube Video for G125-MC11005L4-0450L
  • Youtube Video for G125-MC11005L4-0450L

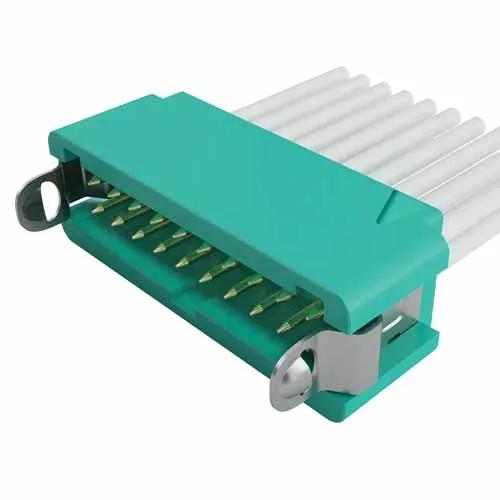

Representative image of product family.

  • G125-MC11005L4-0450L - 5+5 Pos. Male DIL 26AWG Cable Assembly, 450mm, single-end, Latches

G125-MC11005L4-0450L

5+5 Pos. Male DIL 26AWG Cable Assembly, 450mm, single-end, Latches

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Male Single-Ended with white 26 AWG cable, 450mm long - 10 contacts (5+5).
  • Manufactured with G125-1010005 male crimp contacts and G125-3041096L4 male Double Row crimp housing.
  • Connector housing is fitted with copper alloy latches.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Requires exemption 6c)

Product Information

Specification

+
Product Type: 1.25mm Pitch High-Reliability Connector - Gecko with Latches
Contact Pitch: 1.25mm
Contact Gender: Male/Plug
Connector Orientation: Straight
Connection Type: Cable Assembly
Mating Pin Size: Ø0.4mm
Current Rating: 2A
Operating Temperature: -65°C to +150°C
Style of Latches: Locking Latch

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Brass
Housing Material: Polyamide (Nylon) 4T
Housing Color: Green
Housing Material UL Rating: UL94V-0
Individual Part Weight: 9.304g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 10
Body Length: 9.8mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Conductor Size of compatible cable: 26AWG
Mating Profiles/Heights

Related Products

+
Insertion / Removal Tool: Z125-902
Dummy Contacts (for keying): G125-0200005
Spare Contacts: G125-1010005 G125-MW10450L94
Separator Tool (to assist un-mating): Z125-9261000
Product Family: G125-MCL

Mating Products

Alternative products

G125-MC11005L4-0150L - 5+5 Pos. Male DIL 26AWG Cable Assembly, 150mm, single-end, Latches

Closest alternative:

G125-MC11005L4-0150L

5+5 Pos. Male DIL 26AWG Cable Assembly, 150mm, single-end, Latches
