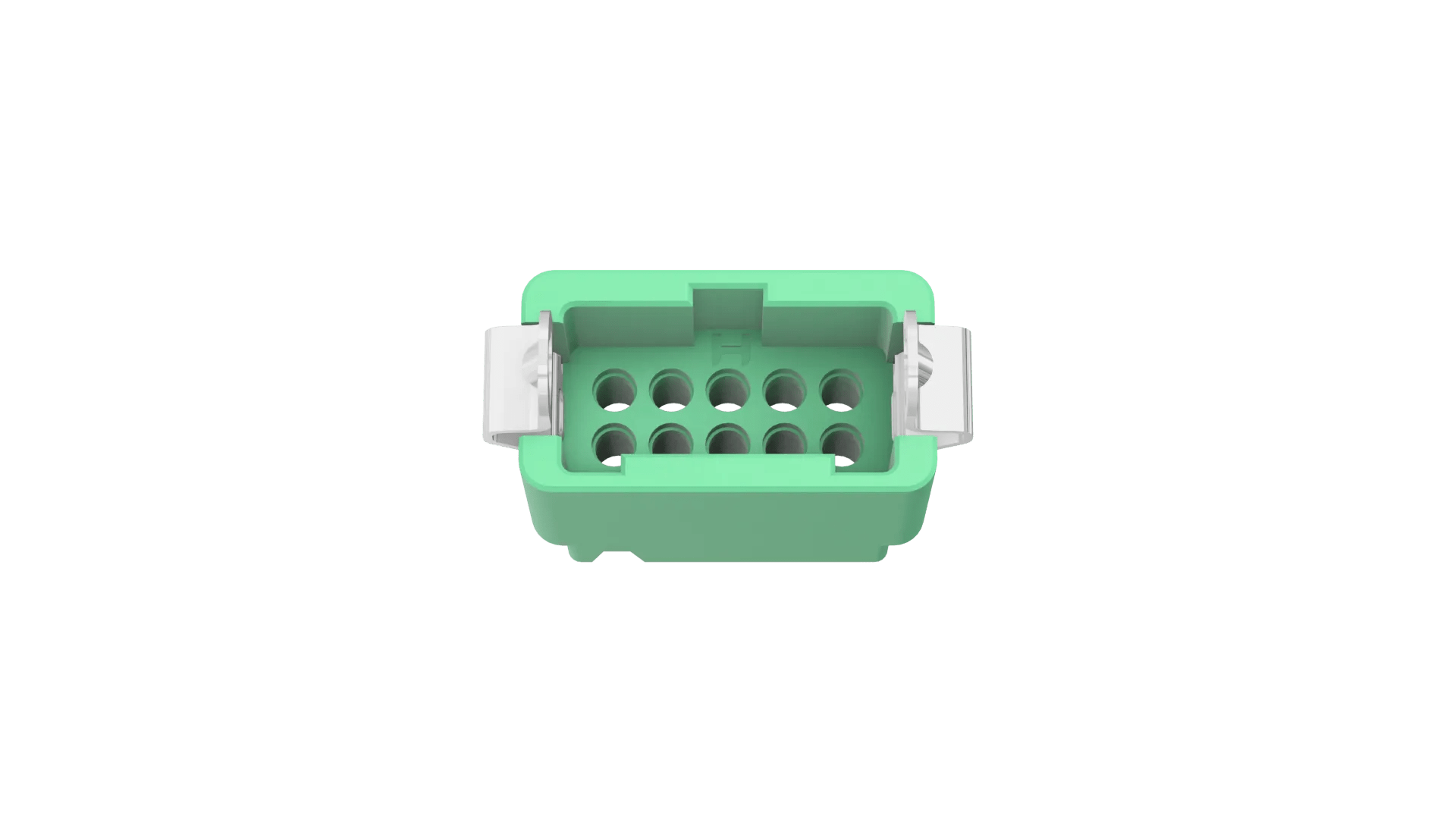

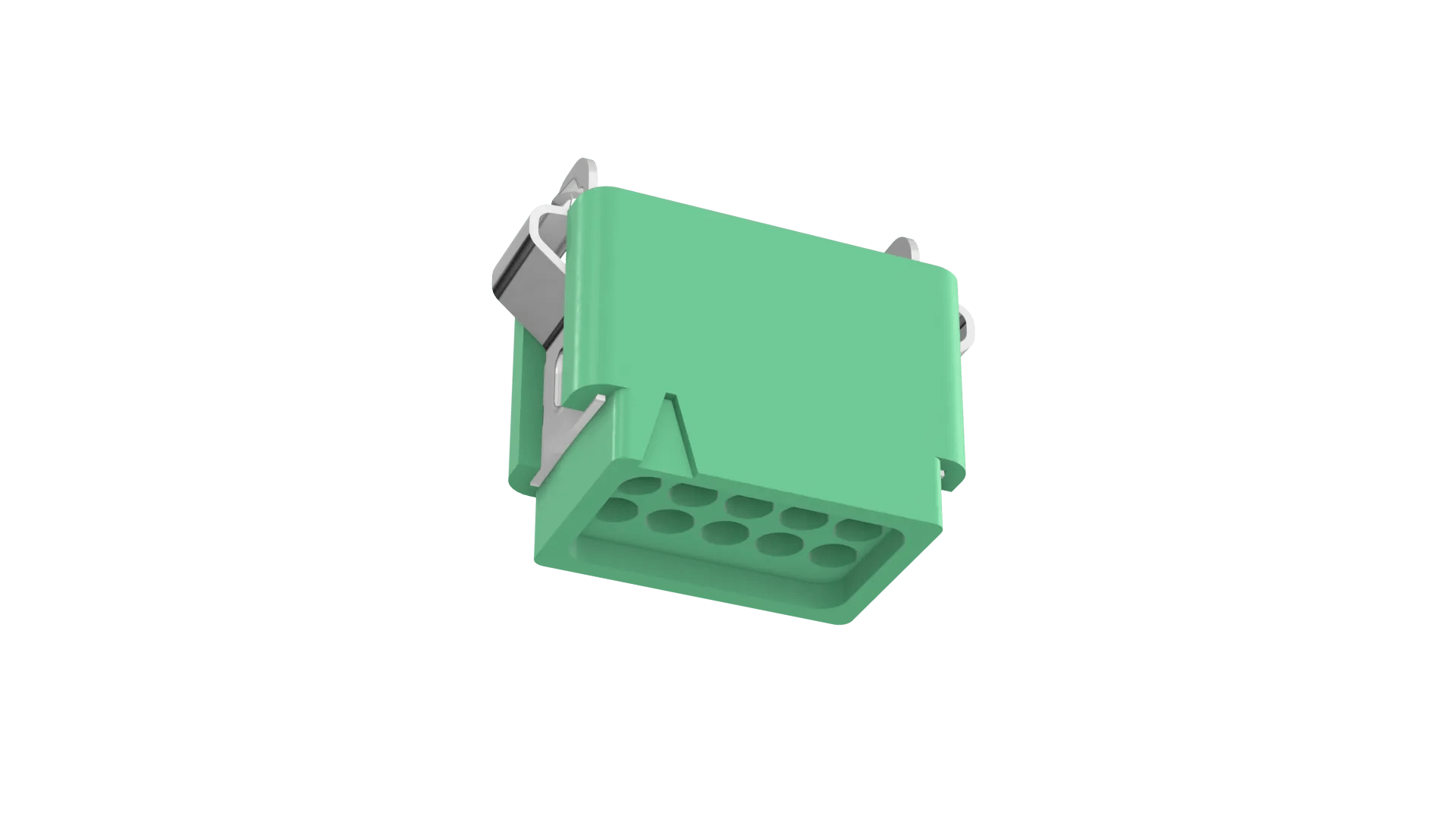

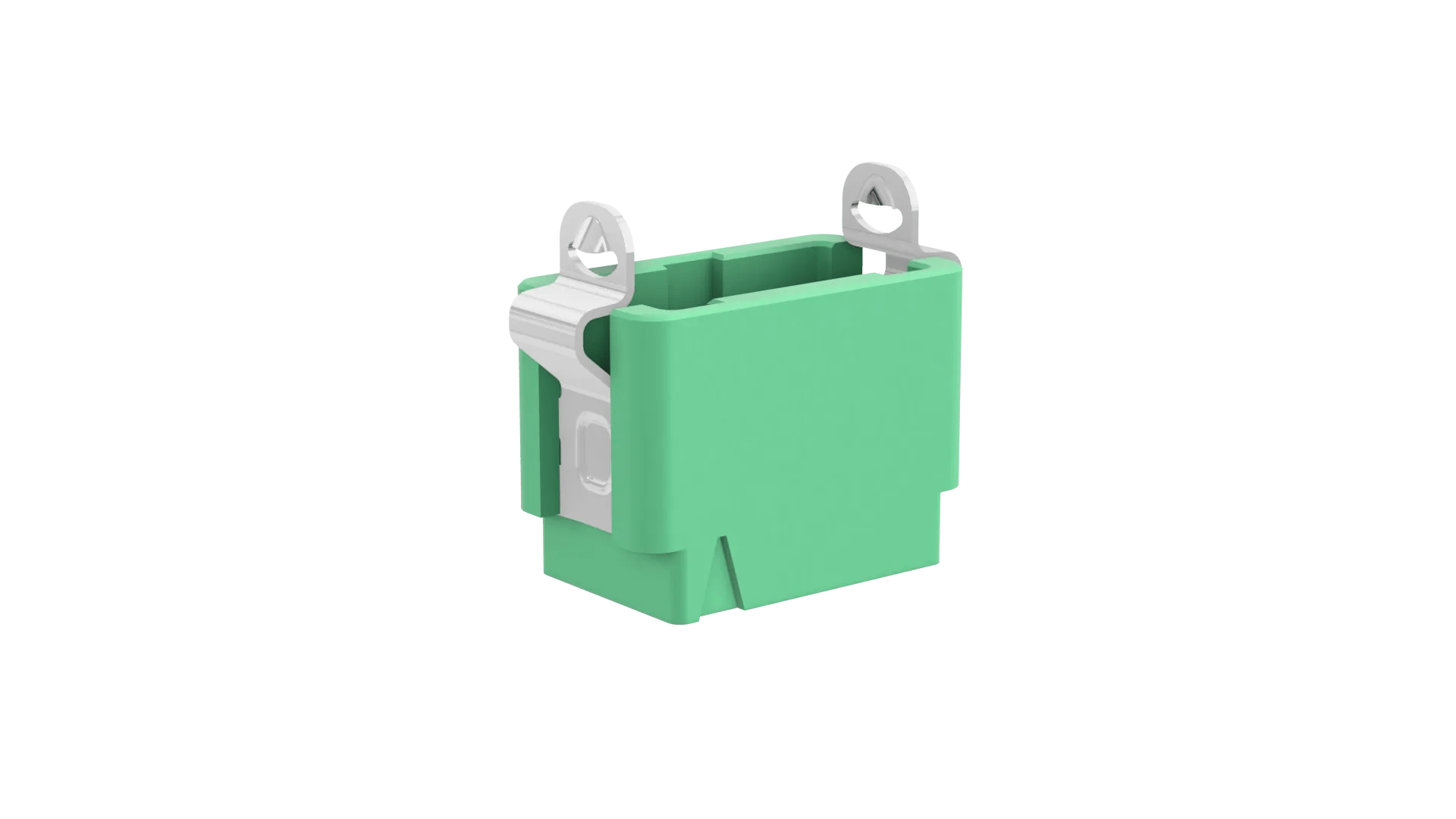

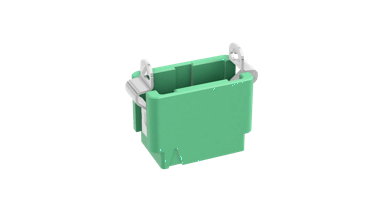

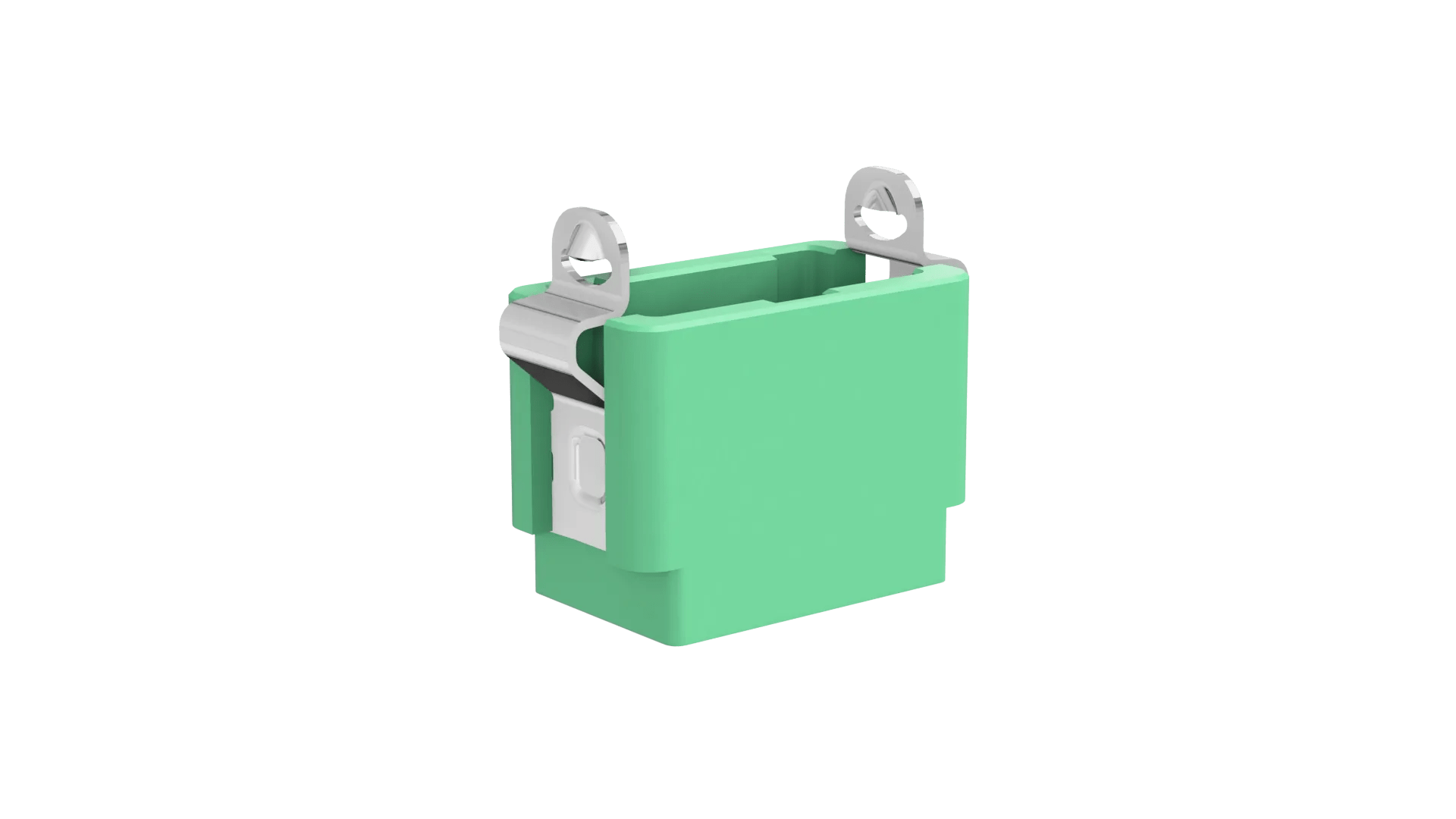

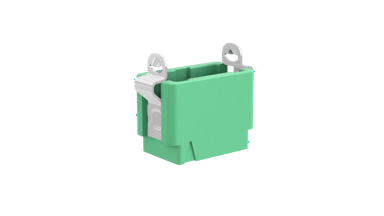

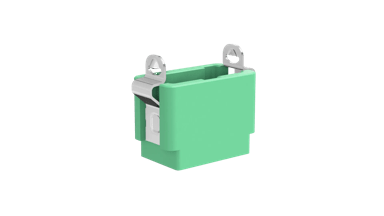

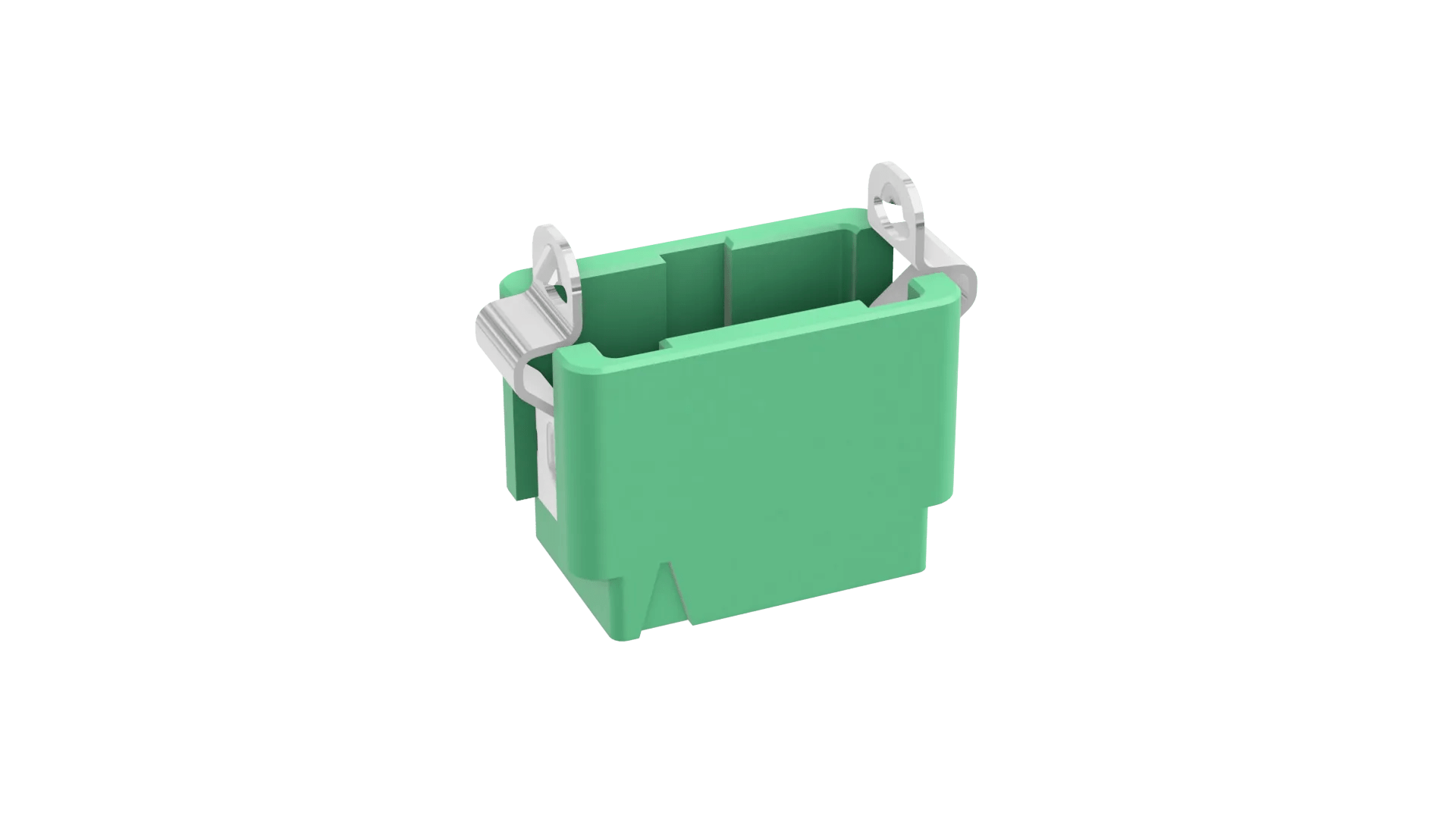

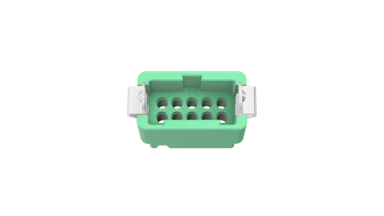

Male Double Row Crimp Connector Housing with latches - 10 (5+5) contacts. Fitted with copper alloy latches.
Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Latching Style
Locking Latch
Mating Pin Size
Ø0.4mm
Number of Rows
2
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
10
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
2.8A max individual contact, 2A max simultaneous (25°C)
Polarised
Yes
Cuttable
No
Materials
Housing Material
Polyamide (Nylon) 4T
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
0.254g
Dimensions
10.20 x 4.90 x 6.50
Downloads
Technical Documentation
Technical Drawing / Datasheet - G125-304XX96L4.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko with Latches Mating Profiles
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet
IS-38 - Z125-902 Assembly Tool Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Gecko range: signal connectors (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for Gecko G125-304 series
RoHS Declaration - G125-3041096L4
