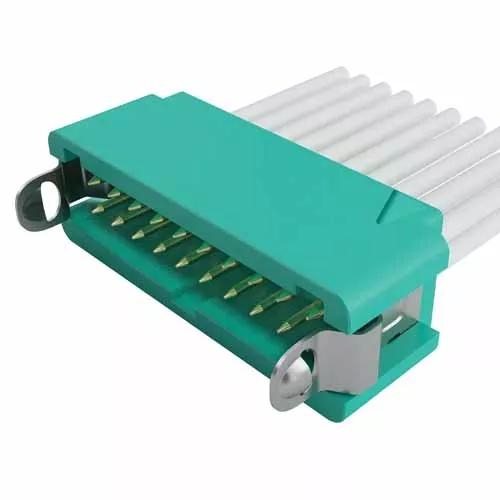

G125-MC11005L4-0150L

Gecko Cable Assembly, Male Single-Ended, with Latches, white 26 AWG cable, 150mm long, 5+5 contacts

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • Male Single-Ended with white 26 AWG cable, 150mm (6") long - 10 contacts (5+5). Connector housing is fitted with copper alloy latches.

  • Manufactured with G125-1010005 male crimp contacts and G125-3041096L4 male Double Row crimp housing. Gold finish on contact area.

  • For complete pin numbering or pin out information, see Component Specification C125XX.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Latching Style:

    Locking Latch

  • Mating Pin Size:

    Ø0.4mm

  • Number of Rows:

    2

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB/US

  • Side Stackable:

    No

  • Number of Signal Contacts:

    10

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    2.8A max individual contact, 2A max simultaneous (25°C)

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 4T

  • Base Material of Contact:

    Brass

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Green

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    3.364g

  • Dimensions:

    150.00 x 10.20 x 4.90

  • Wire Size:

    26 AWG

Downloads

    Product Information

  • Catalog page - Gecko with Latches Mating Profiles

  • Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Product Training Module - Panel Mount with Gecko-SL

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

    • Technical Documentation

  • Technical Drawing / Datasheet - G125-XXXXXXXLX-XXXXL.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

    • Environmental Compliance

  • RoHS - G125-MC11005L4-0150L

  • Material composition for G125-MC1XX05L4-YYYYL series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

    • Test Reports

  • Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
