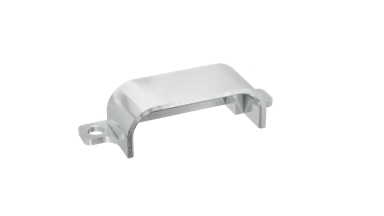

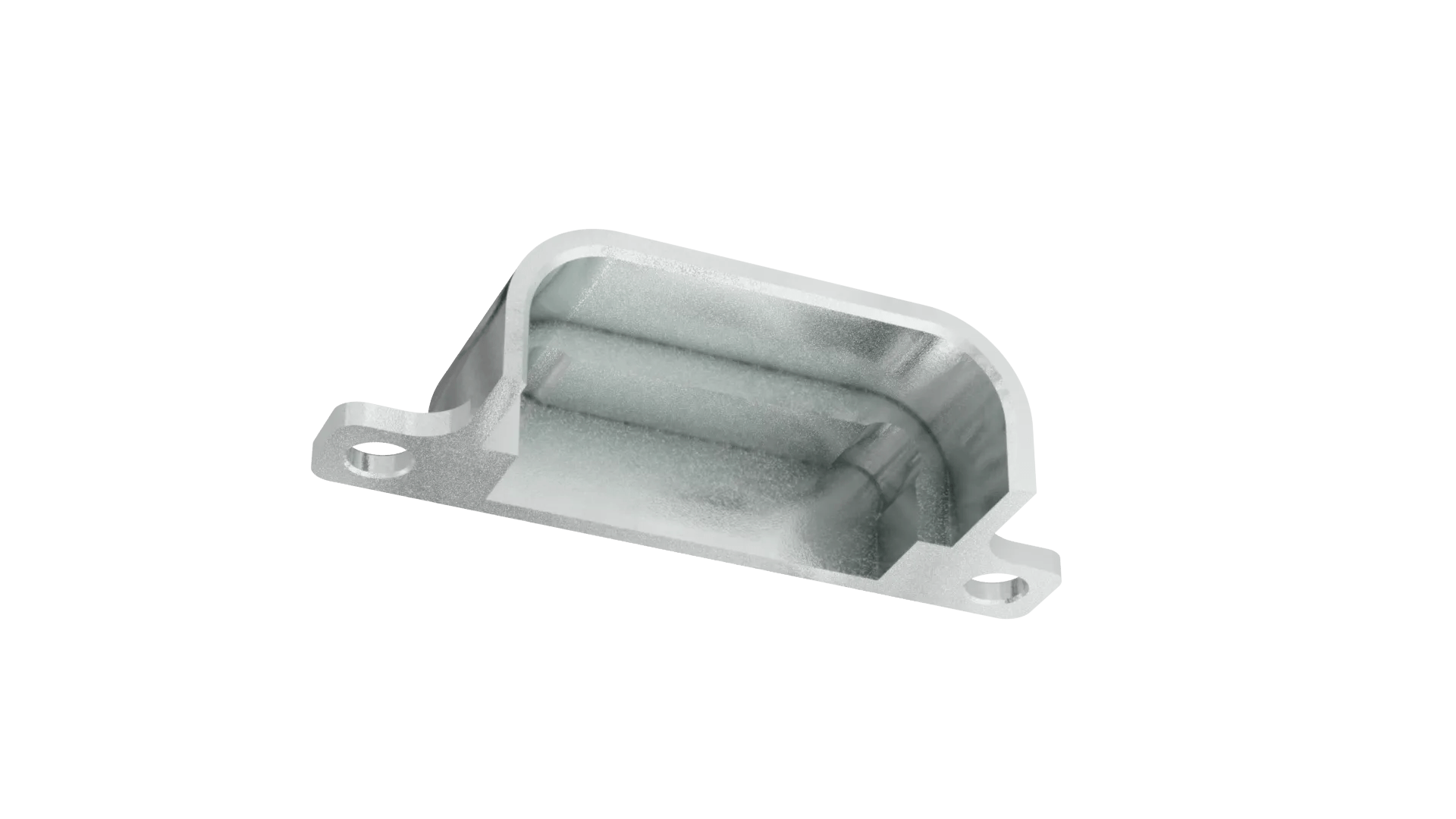

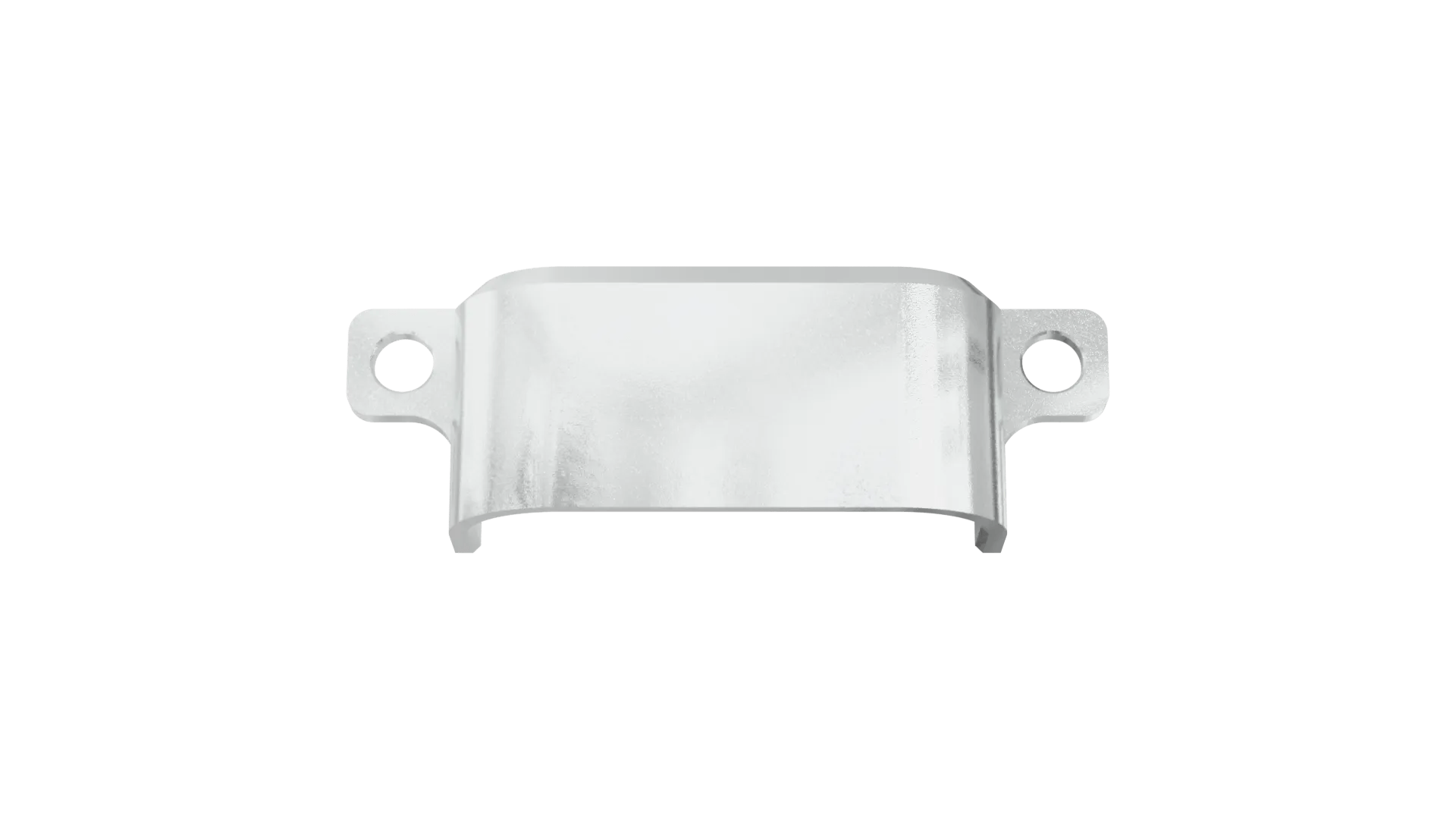

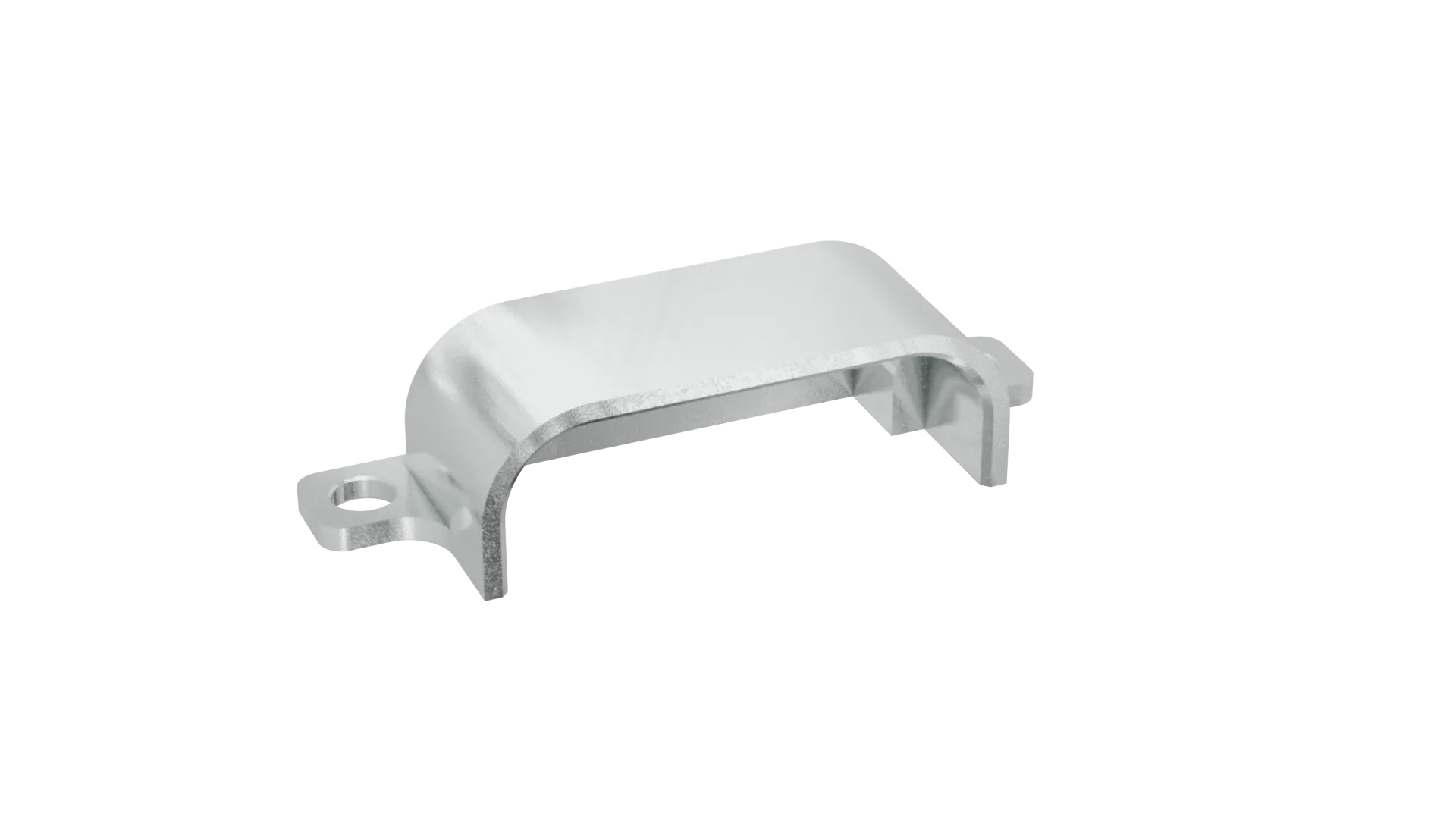

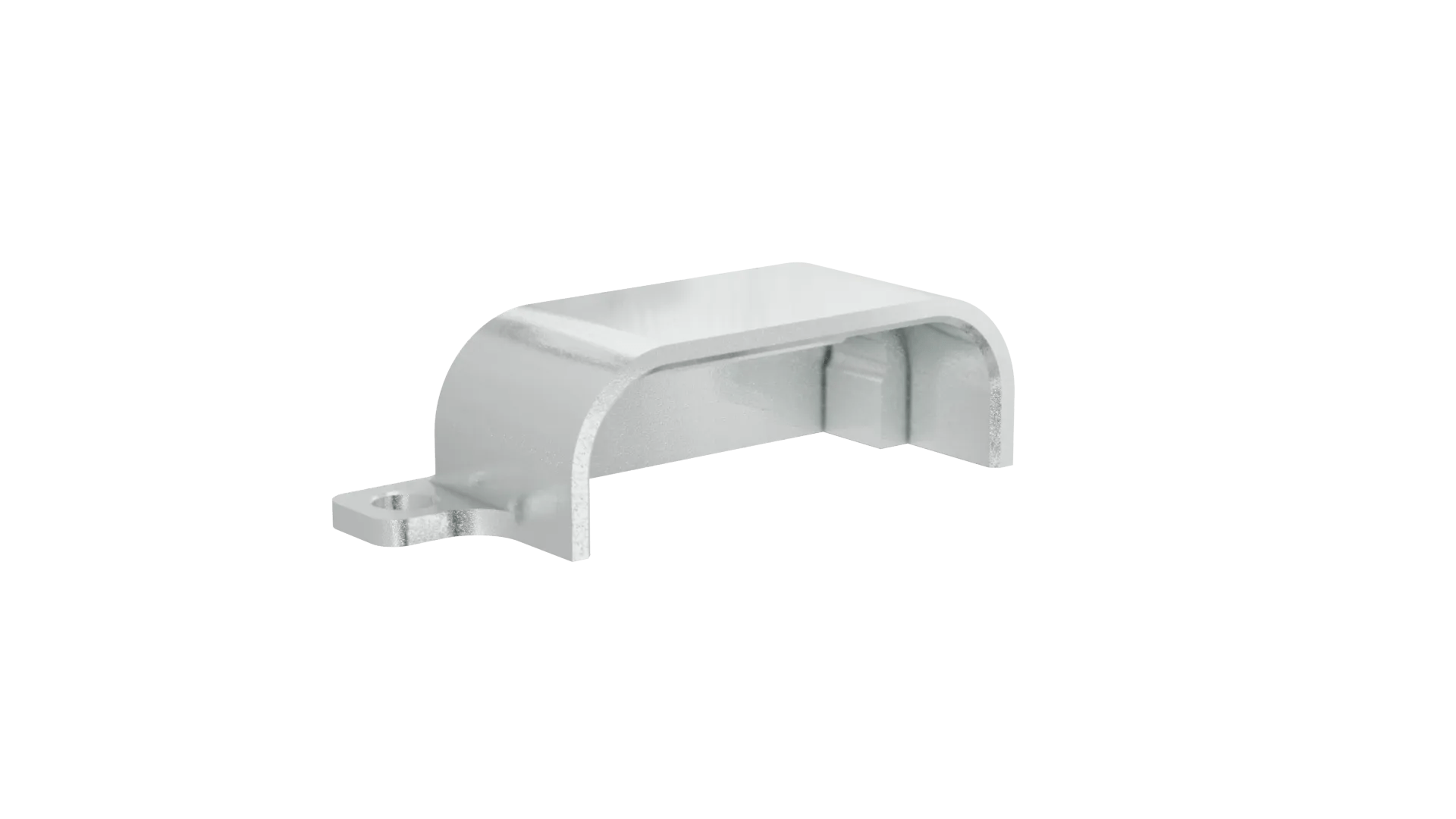

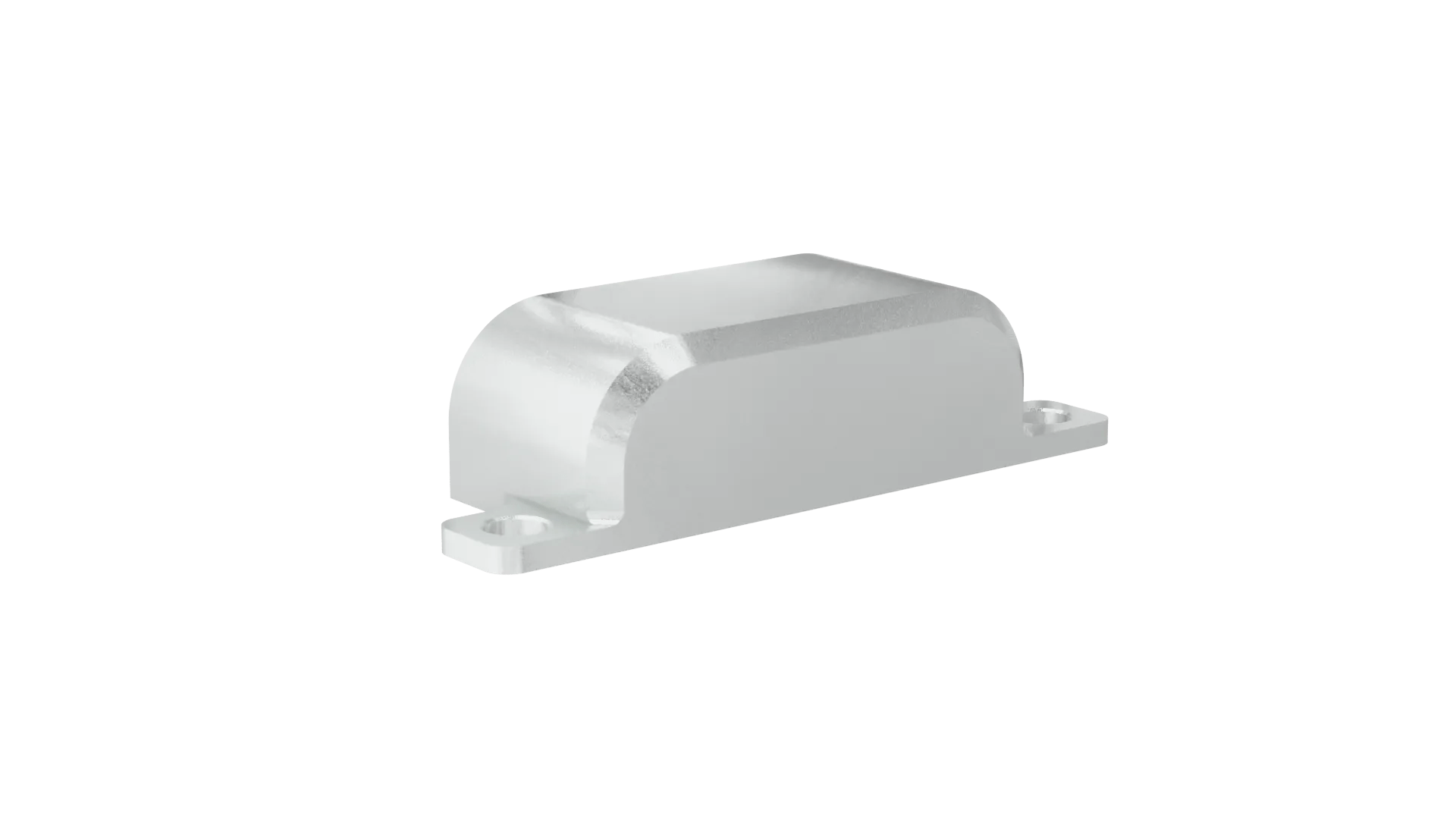

Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors. Accessory only - connectors to be purchased separately.
Use with the following 10-contact connector: male horizontal PCB connector G125-MH11005M4P.
Use hex socket bolt G125-4520000B with hex nut G125-4510000B for mounting to PCBs up to 2mm thickness.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Compatible with Board Mount
Number of Rows
2
Connector Orientation
Horizontal
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
10
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable
No
Materials
Housing Material
Aluminium Alloy
Packaging Style
Bulk/Loose
Housing Colour
Nickel
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
1.883g
Dimensions
31.10 x 10.00 x 7.54
Height of Connector above PCB
7.54mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - G125-970.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Product Information
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Training Module - Panel Mount with Gecko-SL
Product Datasheet - Gecko range: signal connectors (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-970 series
RoHS Declaration - G125-9701002
