Image may be representative. Refer to the product title for more information.

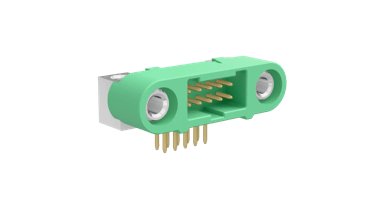

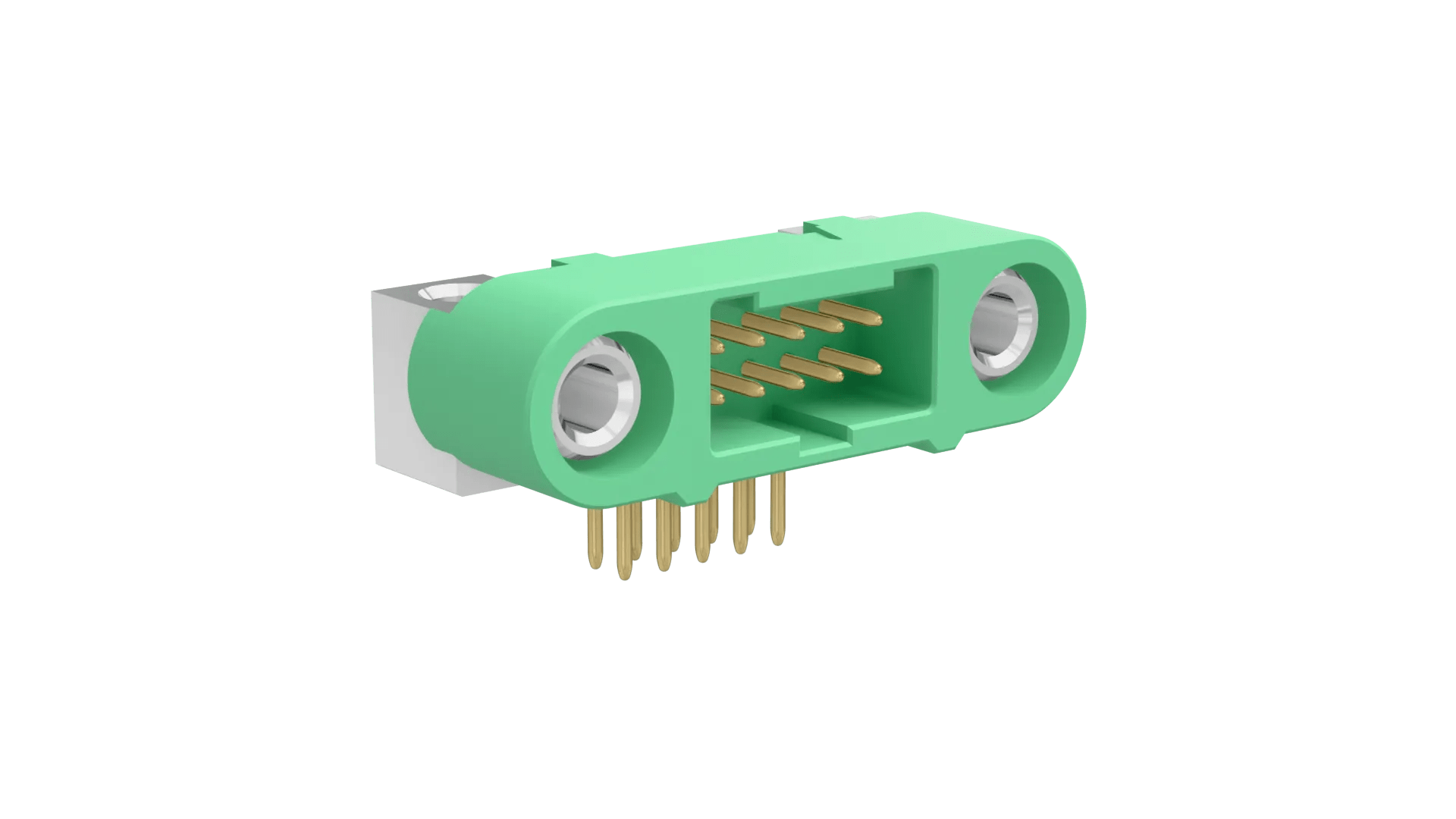

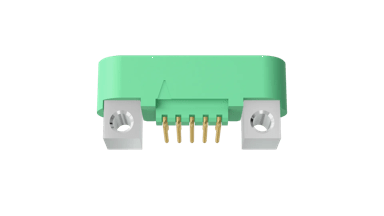

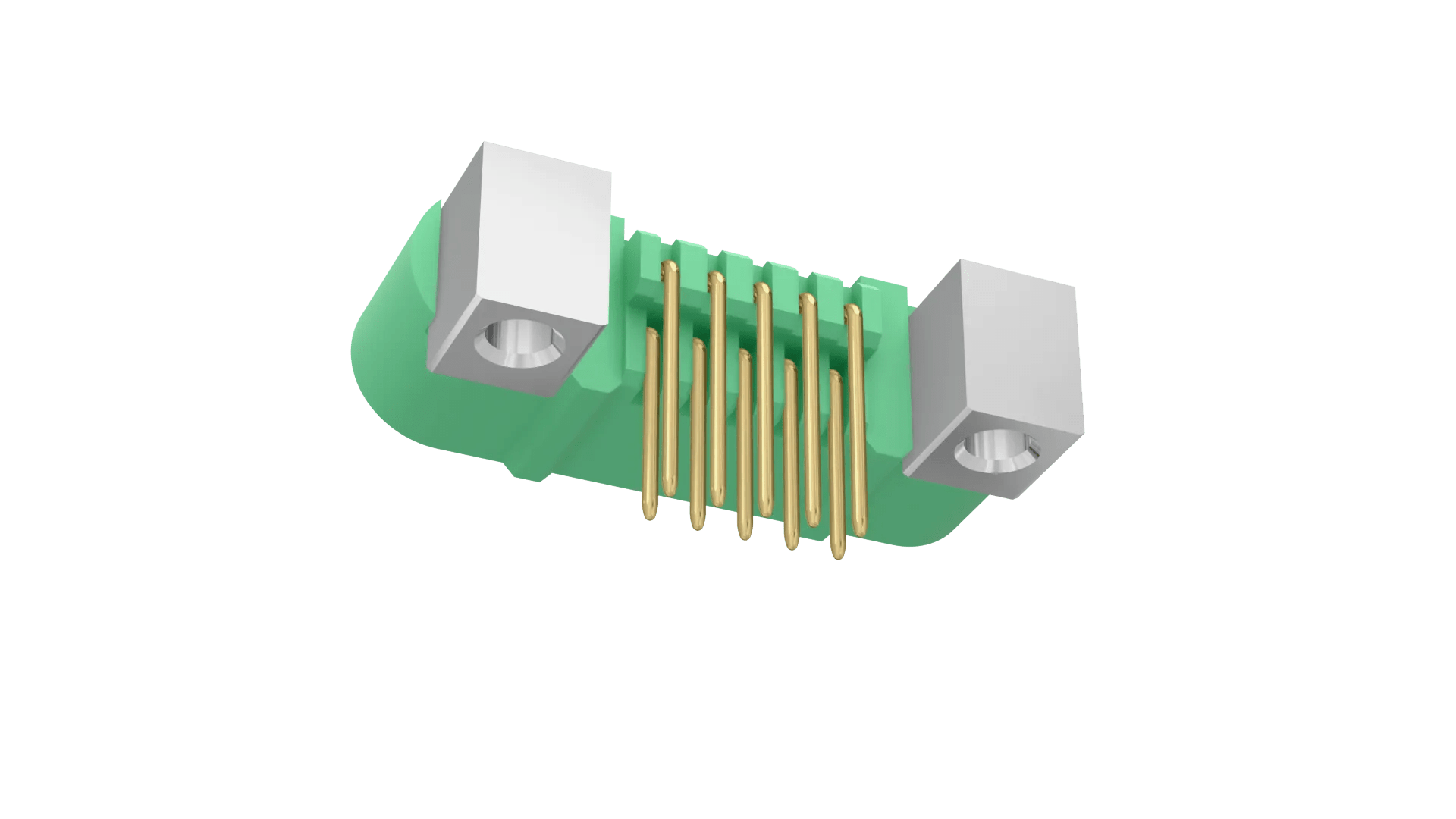

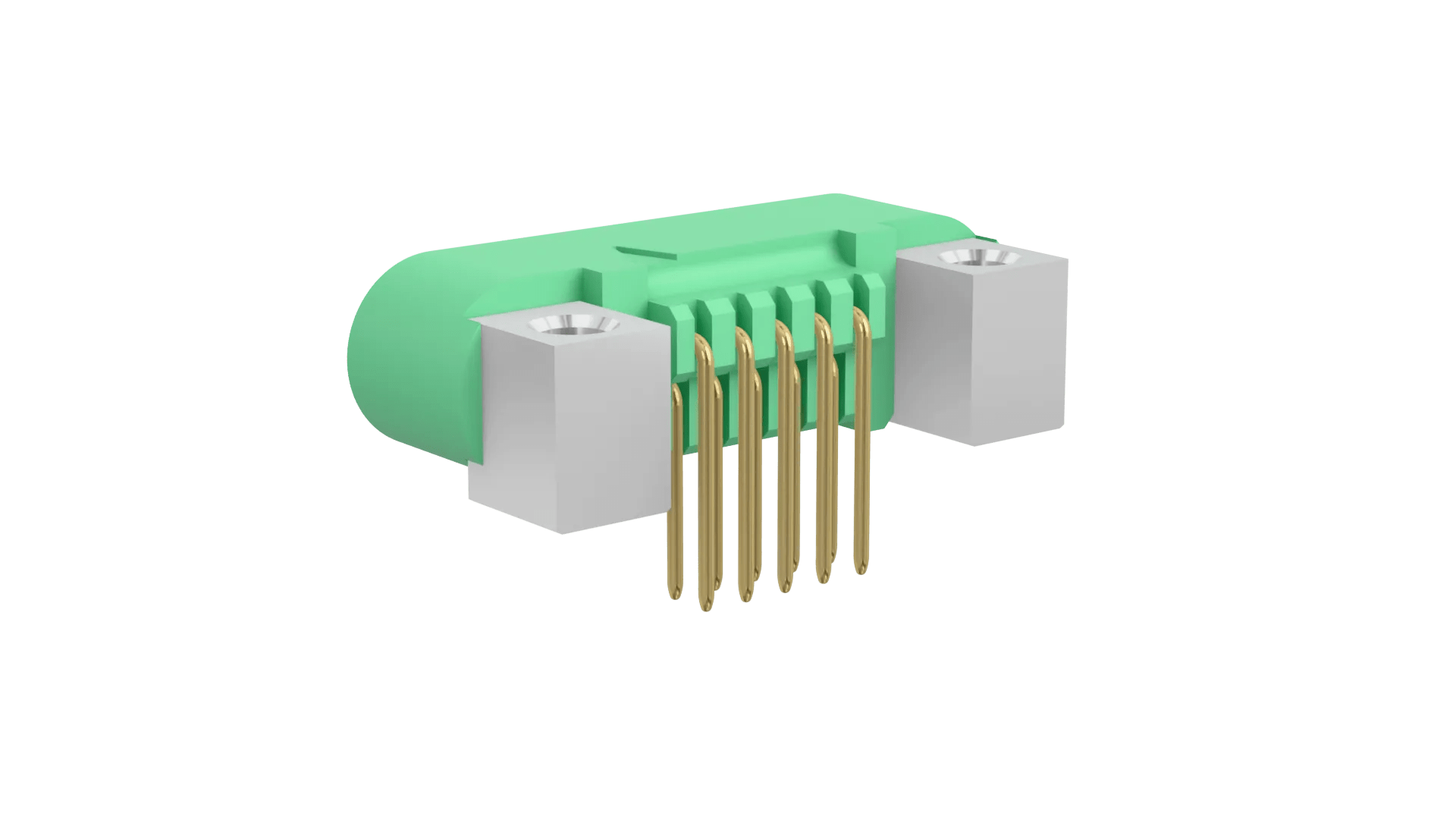

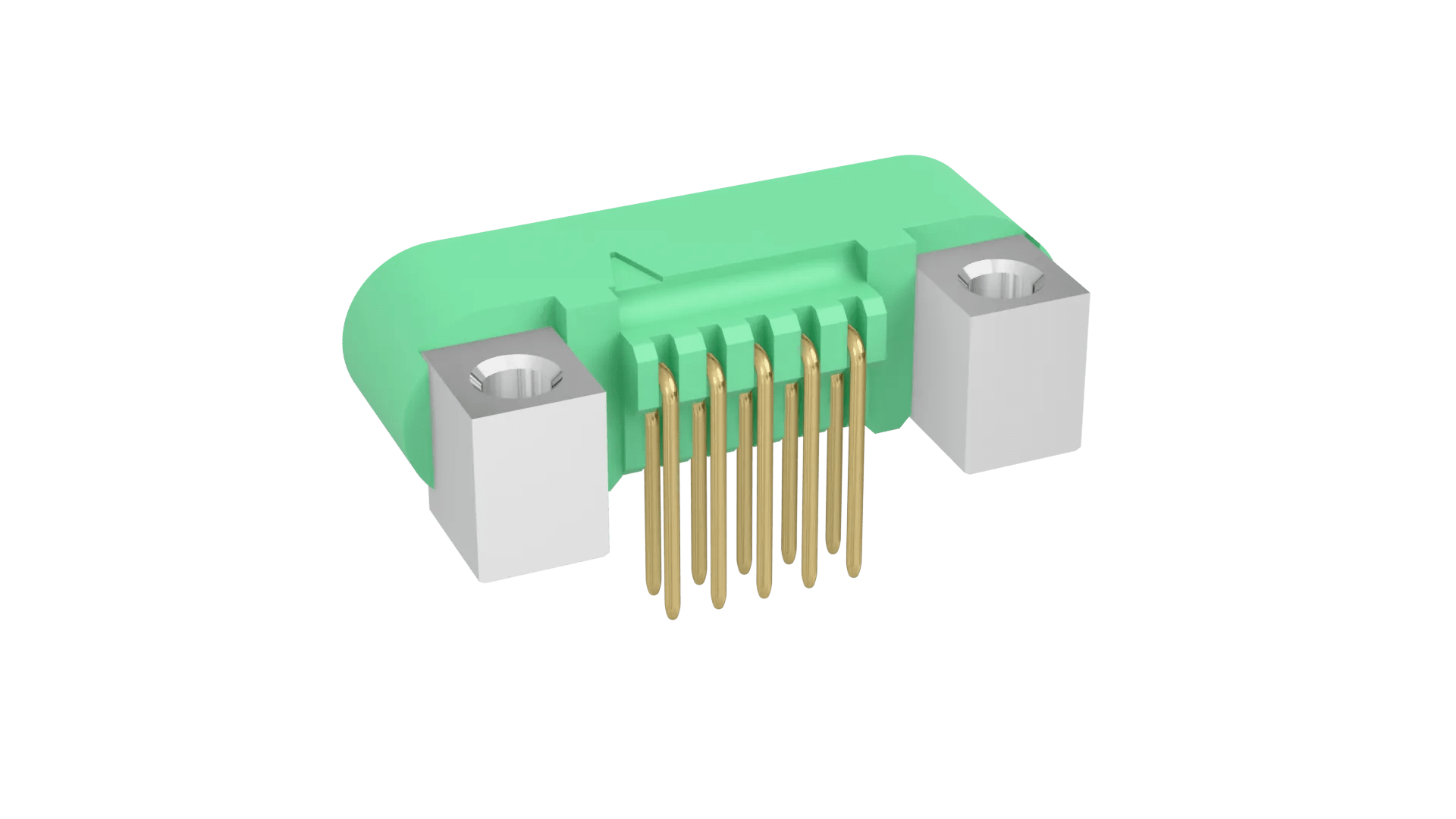

Male Double Row 3mm PC Tail connector, Screw-Lok fixings suitable for board mount - 10 contacts (5+5). Use with hex socket bolts G125-4520000B (5mm) for board mount retention.
Supplied in tape strips. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size
Ø0.4mm
Number of Rows
2
Connector Orientation
Horizontal
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
10
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
2.8A max individual contact, 2A max simultaneous (25°C)
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel Strip
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
1.344g
Dimensions
17.70 x 7.70 x 8.50
Thread Size
M2
PC Tail Length
3.30mm
Height of Connector above PCB
5.30mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - G125-MH1XX05M4P.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko-SL Mating Profiles
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Datasheet - Gecko range: signal connectors (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Test Report HT073 - Gecko-SL Horizontal General (Electrical + Mechanical and Environmental)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-MH1XX05MXX series
RoHS Declaration - G125-MH11005M4P
