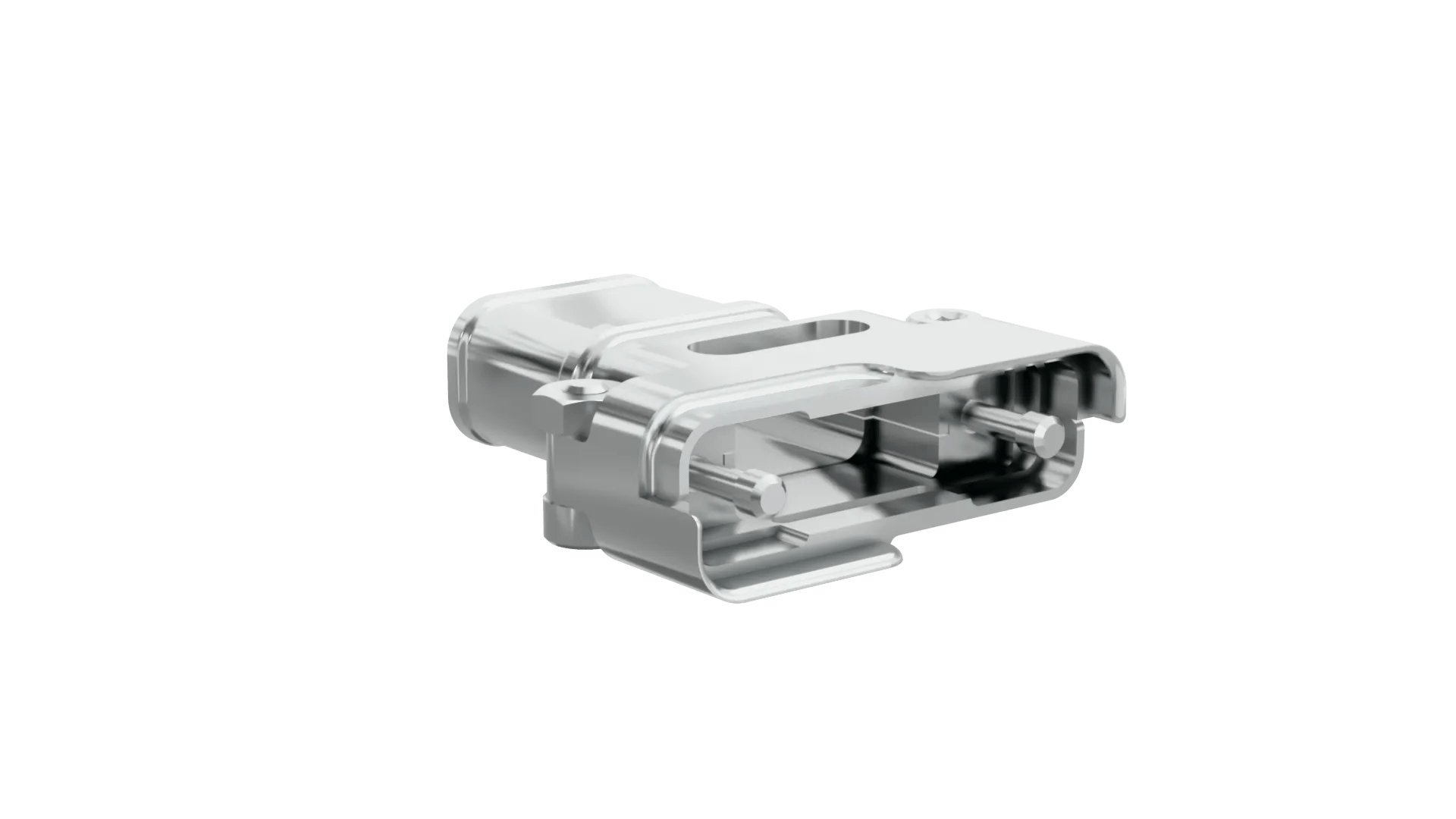

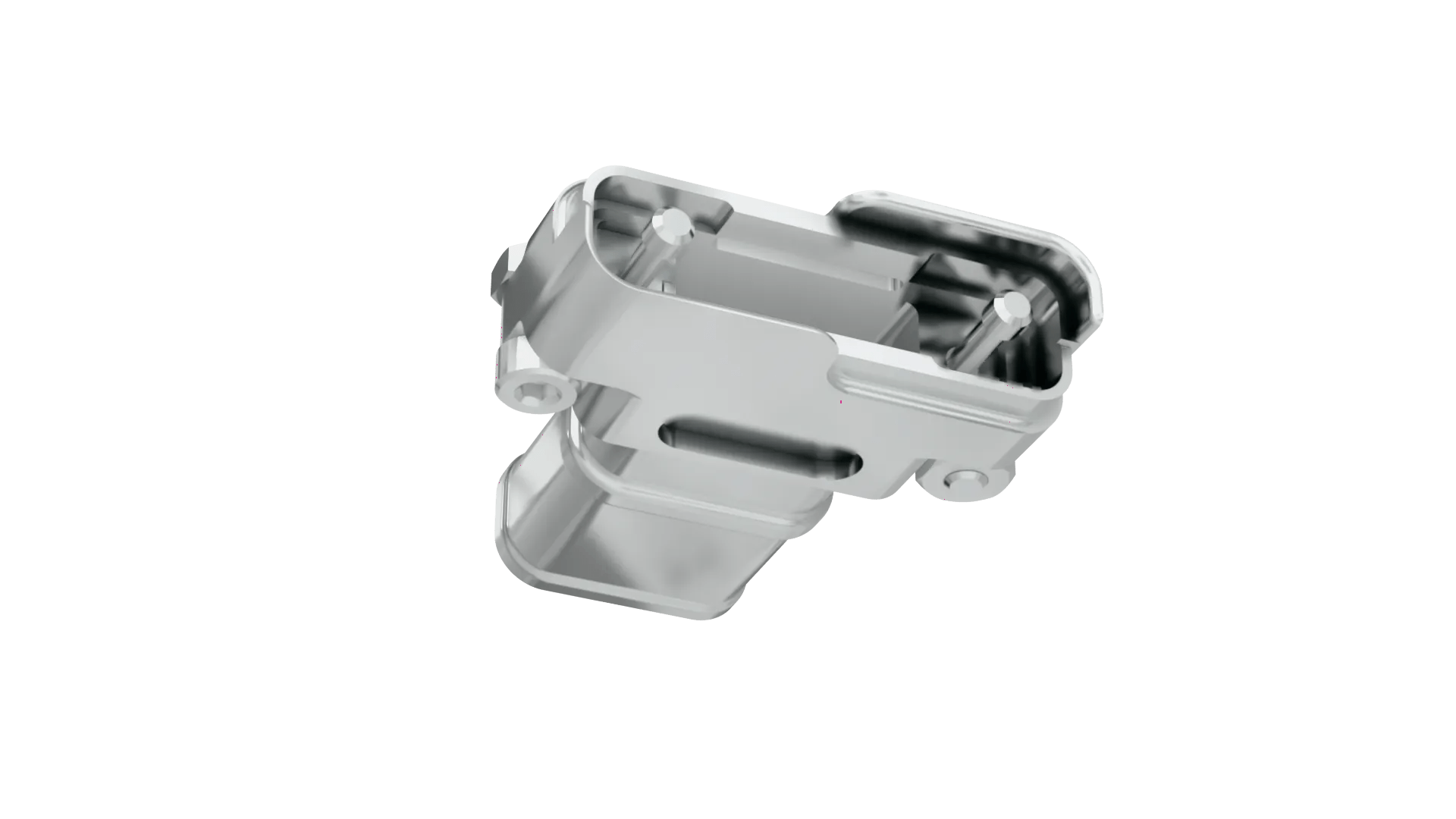

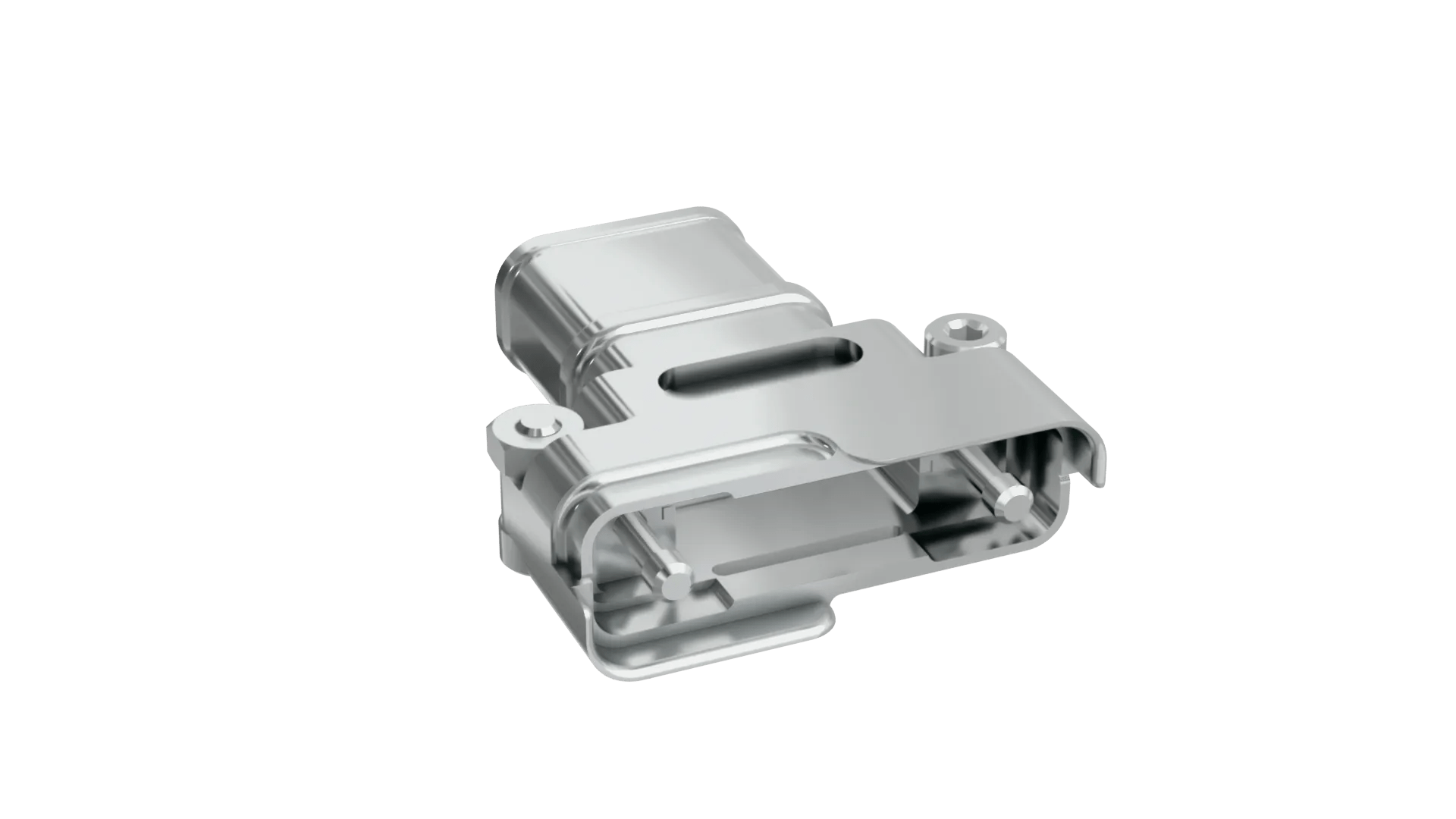

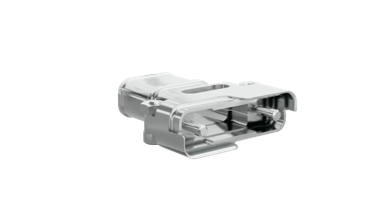

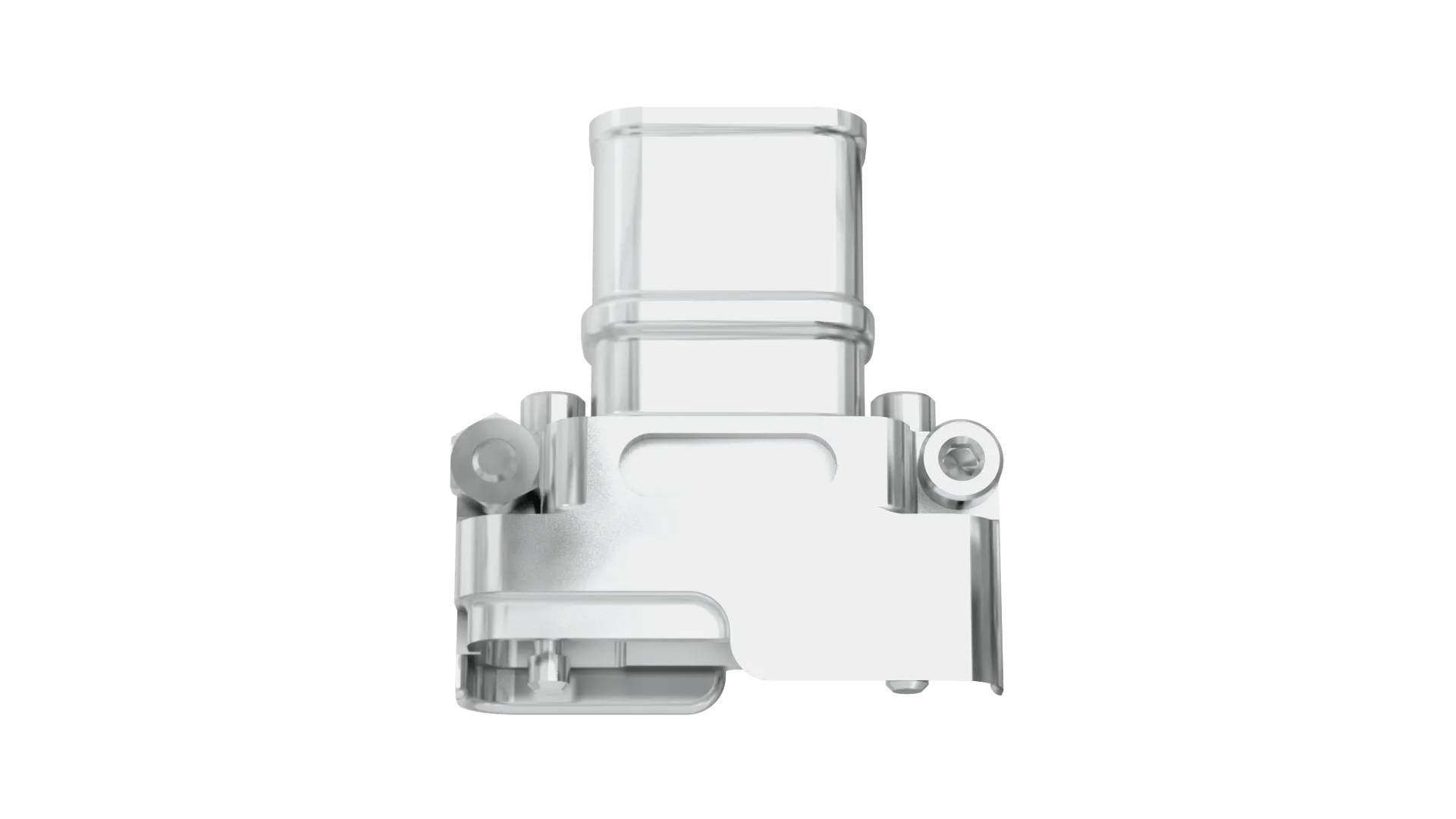

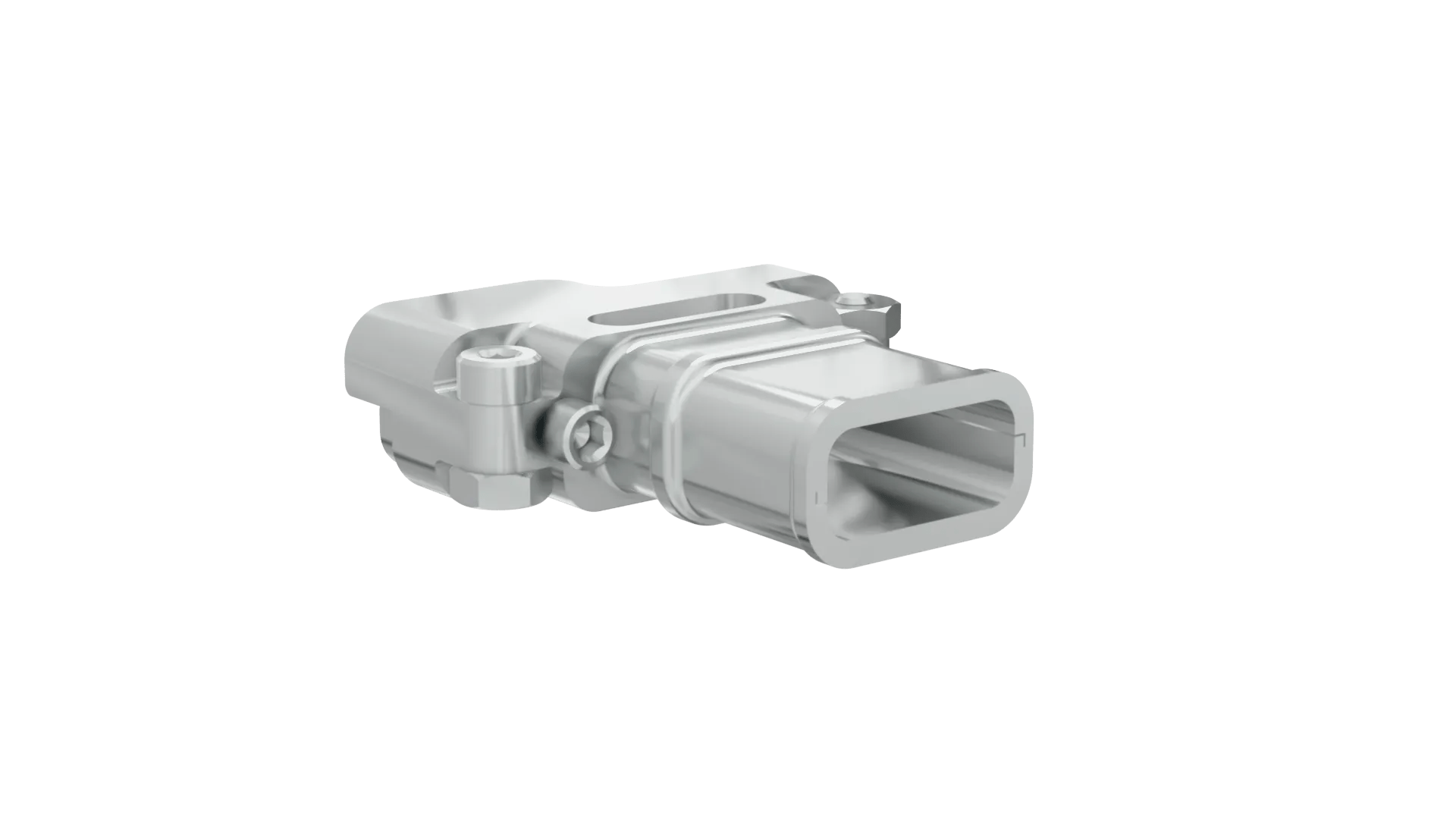

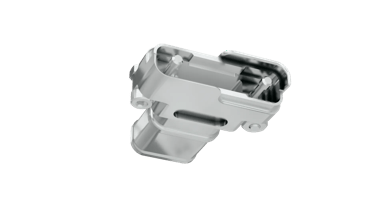

Metal Backshell kit for cable connectors - includes 2 metal hood halves, extended fixing screw-loks with hex socket heads, and short screws & nuts for joining the halves. For spare extended screw-loks, order G125-4440000.
Use with the following 2-power/4-signal cable housings: female receptacle G125-2249600-02-04-00 for standard gender fixings, or male plug G125-3249600-02-04-00 for reverse gender fixings. Mate-before-Lock. Can be fitted after cable assembly construction.
Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid. See instruction sheet IS-45 for advice on use.
