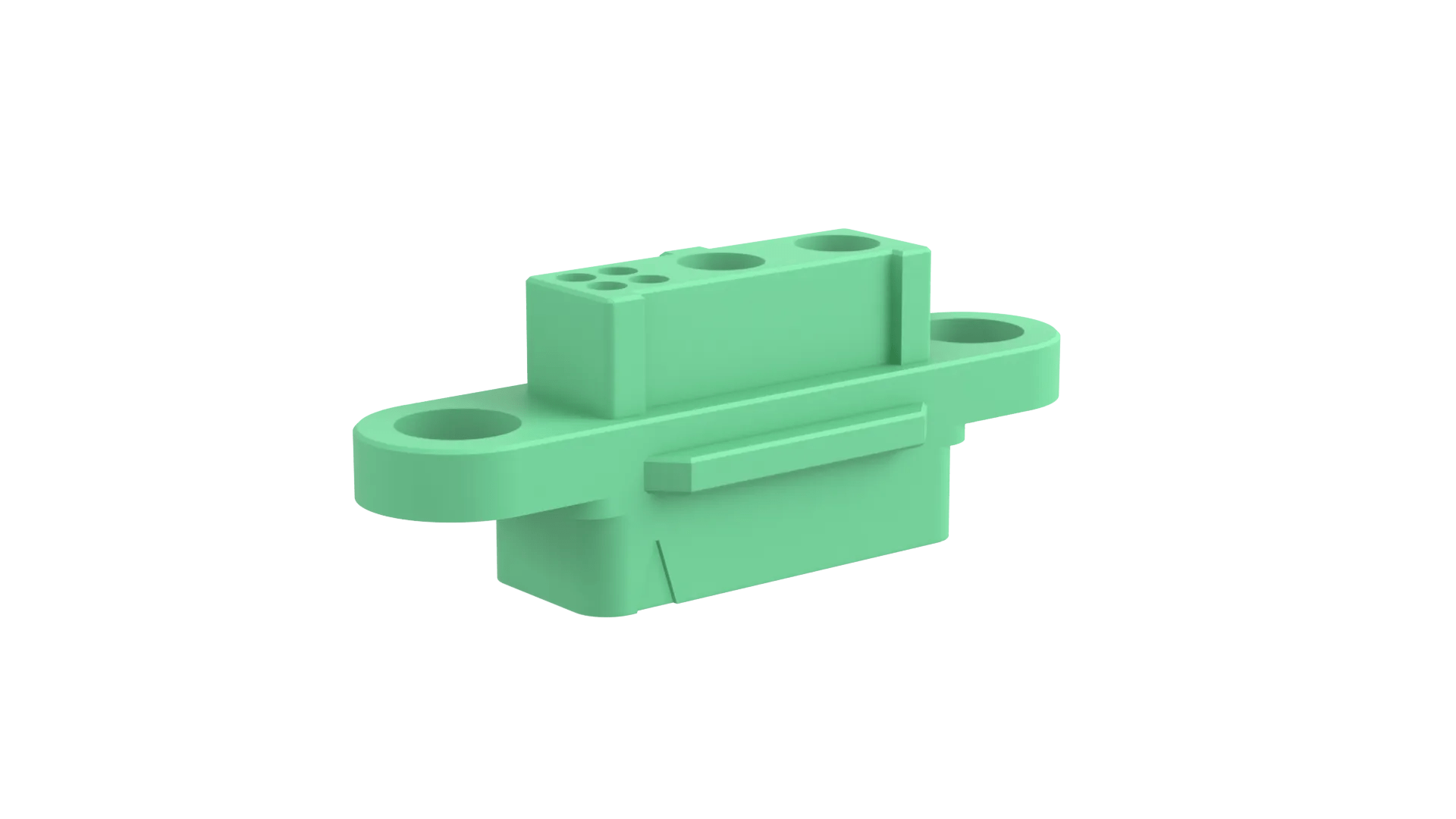

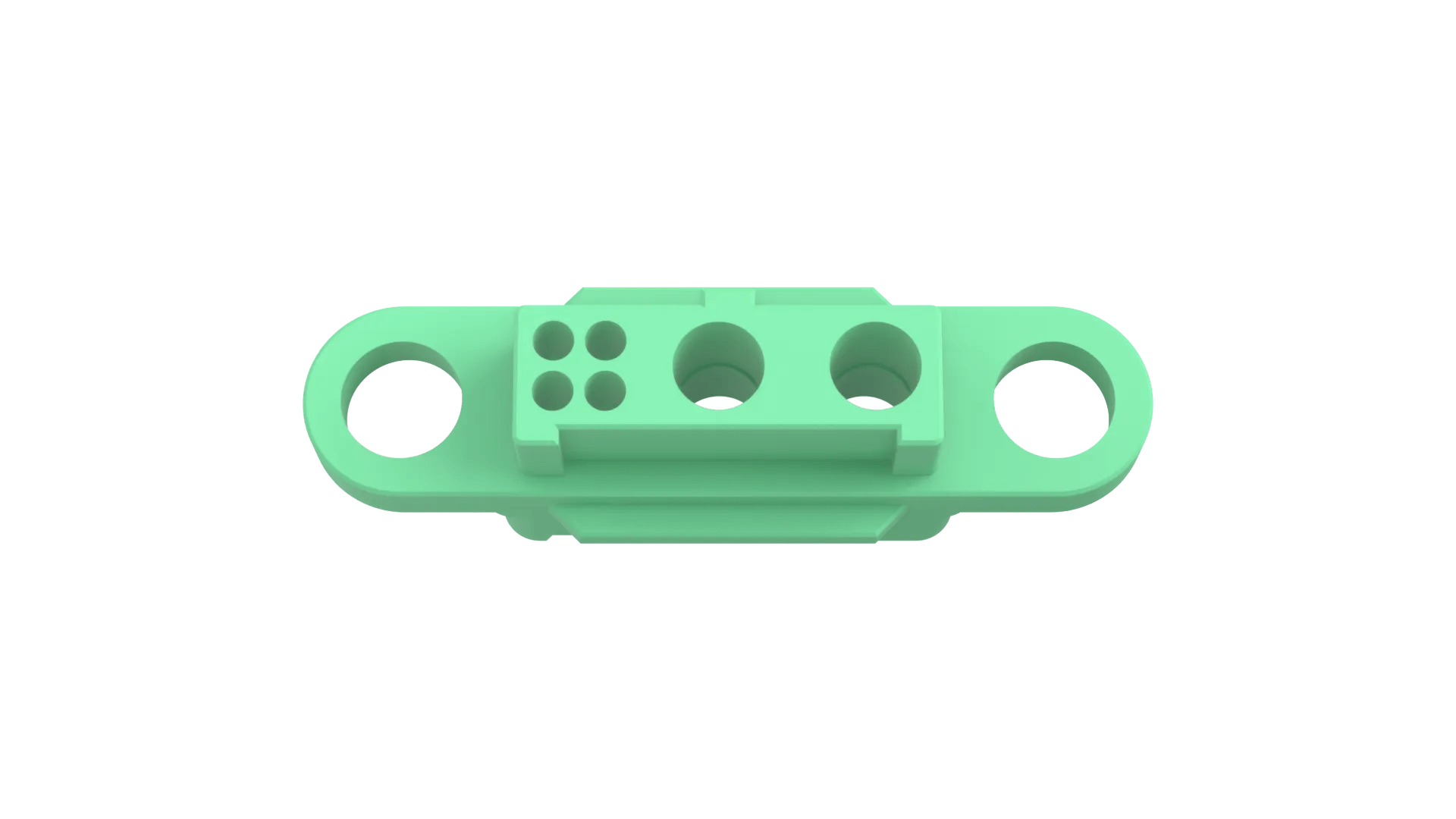

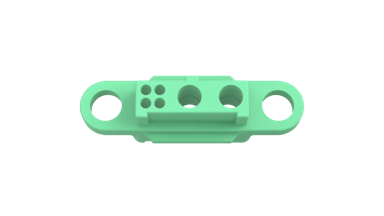

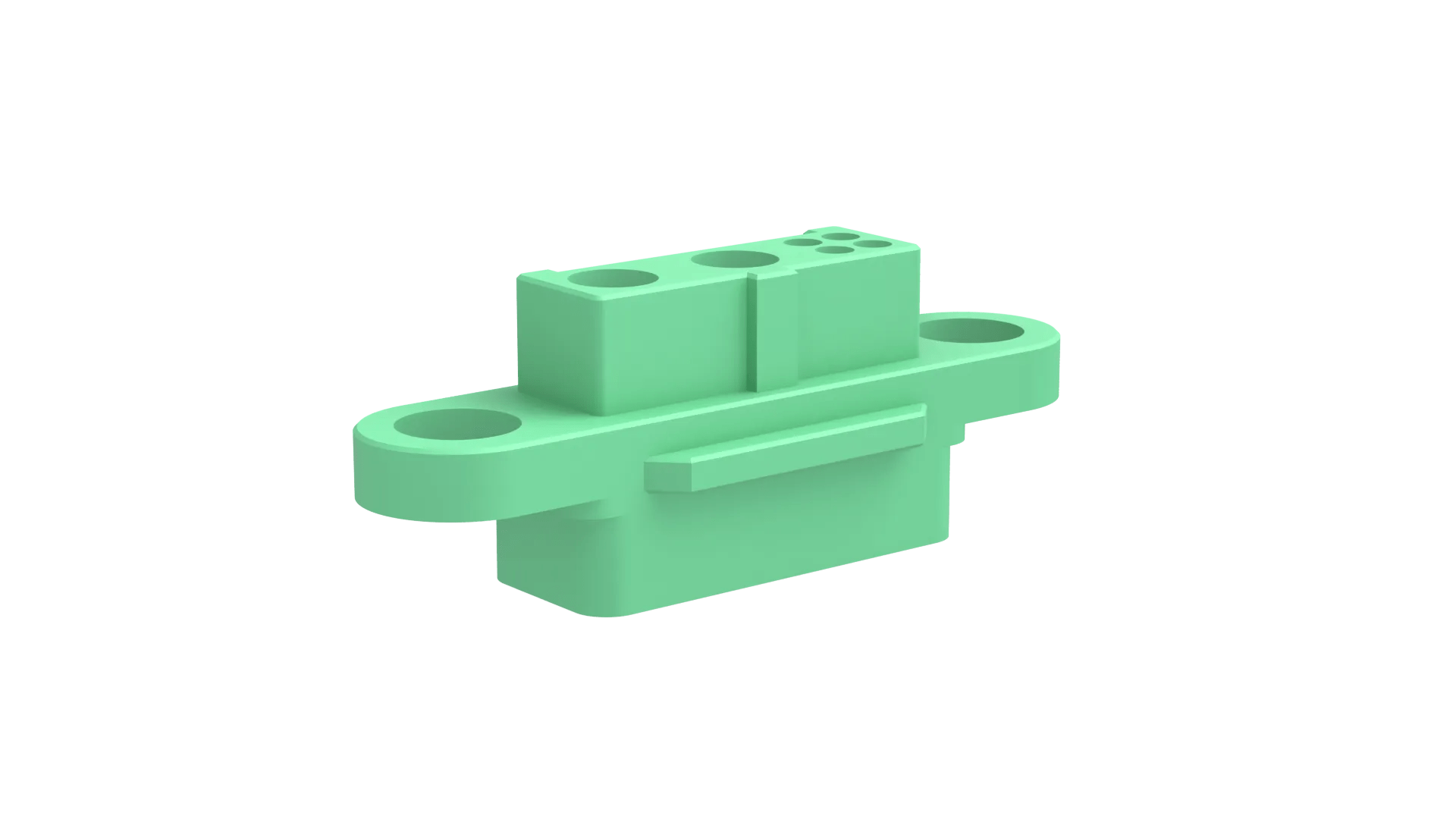

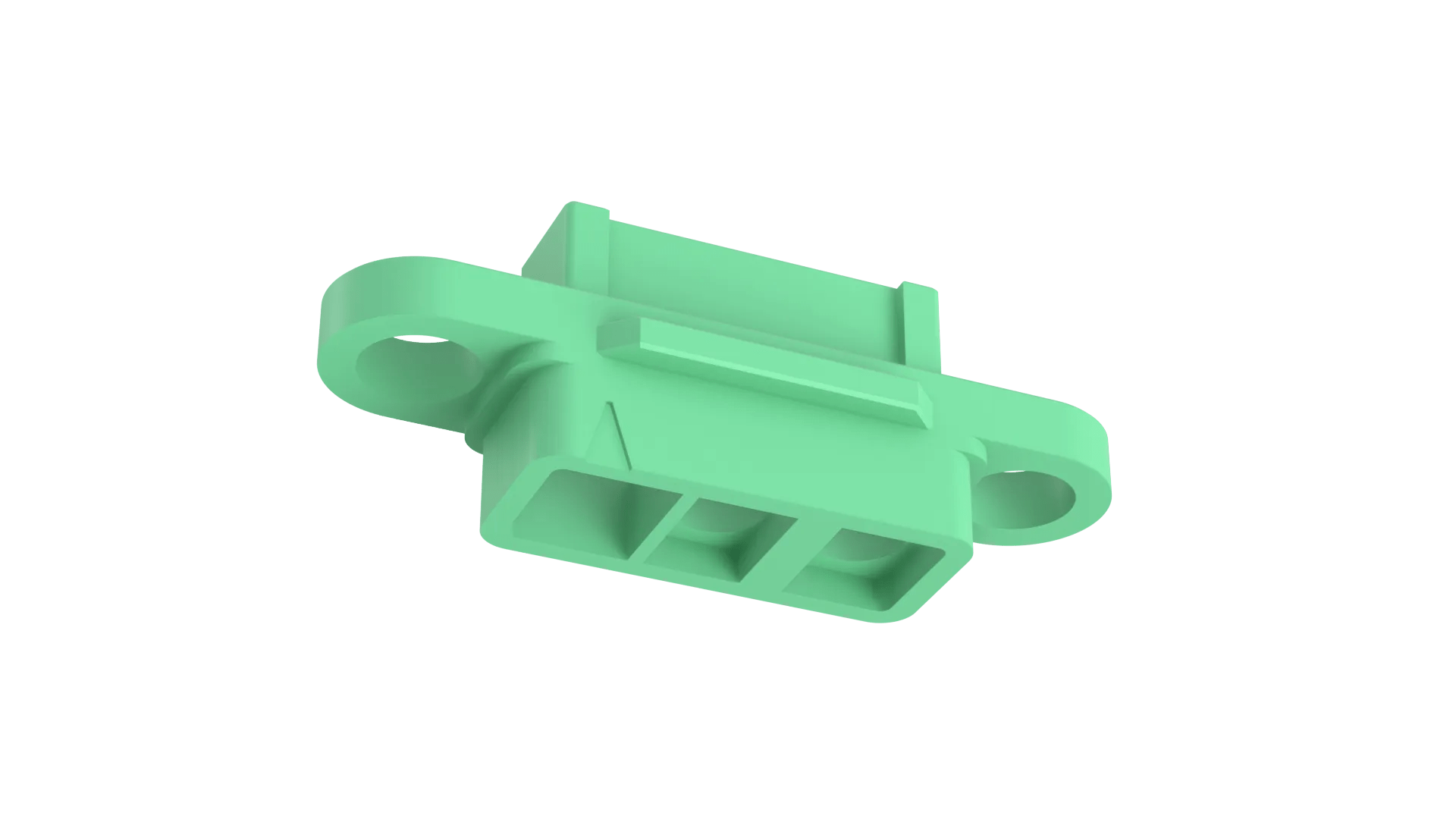

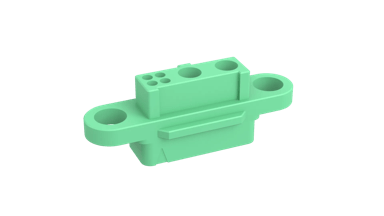

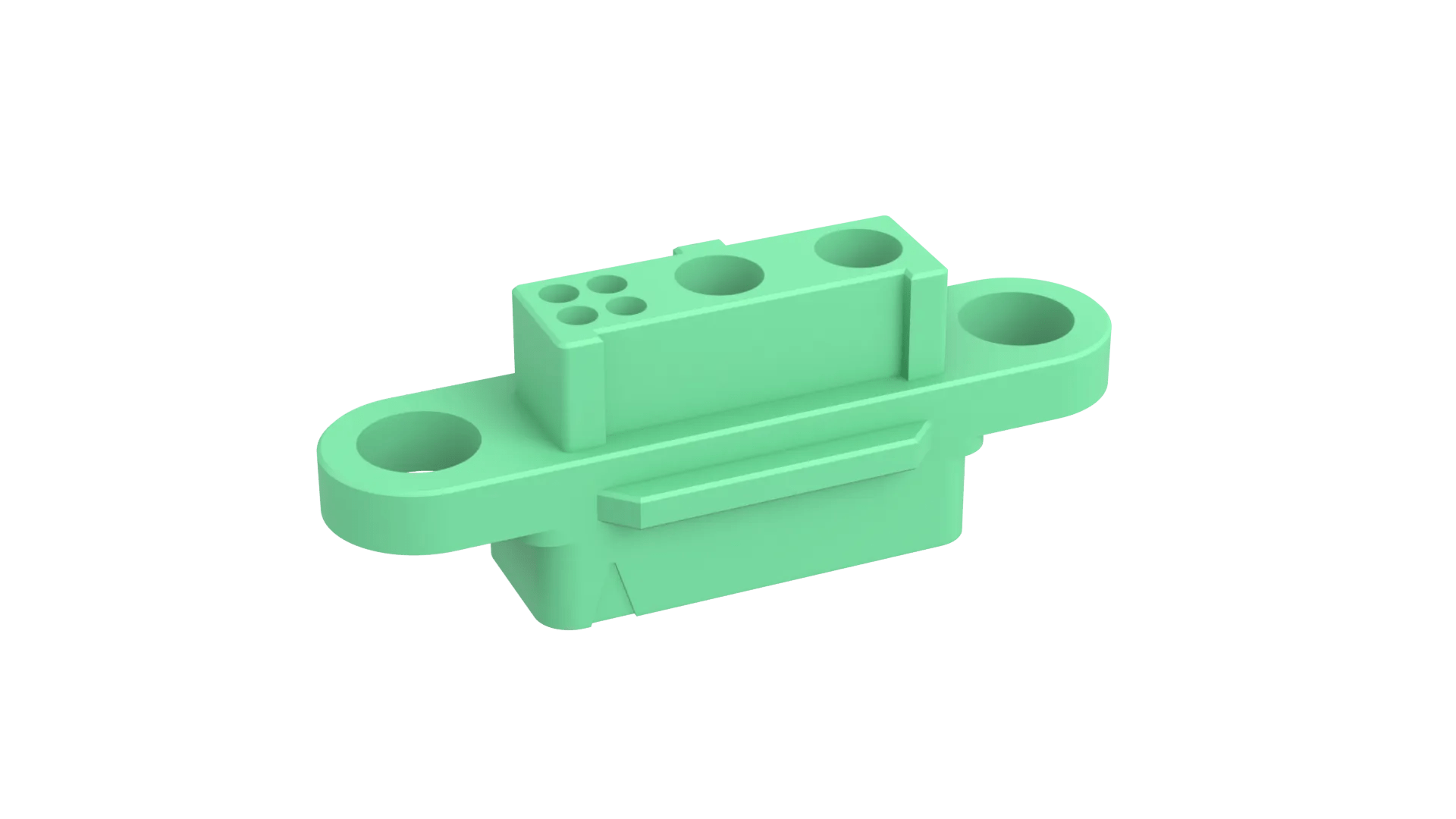

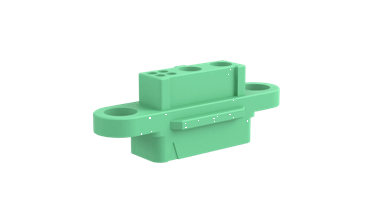

Female receptacle straight cable connector housing - 2 power, 4 signal contact arrangement. For use with metal backshell kit G125-964F1-02-04-00. Screw-Lok compatible connector housing style, no fixings included.
Contacts to be purchased separately - use with signal crimp contacts G125-0010005 (for 26 AWG) or G125-0020005 (for 28-32 AWG), and power crimp contacts G125-0500005 (for 18 AWG). Pre-cabled contacts also available: for signal, see G125-FW; for power, see G125-FP.
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
None fitted
Mating Pin Size
Ø0.4mm, Ø1mm
Number of Rows
Mixed
Connector Orientation
Straight
Side Stackable
No
Number of Power/Coax Contacts
2
Number of Signal Contacts
4
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Polarised
Yes
Cuttable
No
Materials
Housing Material
Polyamide (Nylon) 4T
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
0.441g
Dimensions
21.05 x 6.50 x 7.60
Thread Size
M2
Downloads
Technical Documentation
Technical Drawing / Datasheet - G125-2249600-XX-XX-00.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko-MT Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet
IS-38 - Z125-902 Assembly Tool Instruction Sheet
IS-44 - Z125-903 Hand Crimp Tool Instruction Sheet
IS-47 - Z125-905 Assembly Tool Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Gecko-MT range (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Test Report HT087 - Gecko-MT Phase 2 additions + General (Electrical + Mechanical and Environmental)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material Composition for G125 MT Series Mouldings
RoHS Declaration - G125-2249600-02-04-00
