Active

G125-9603402

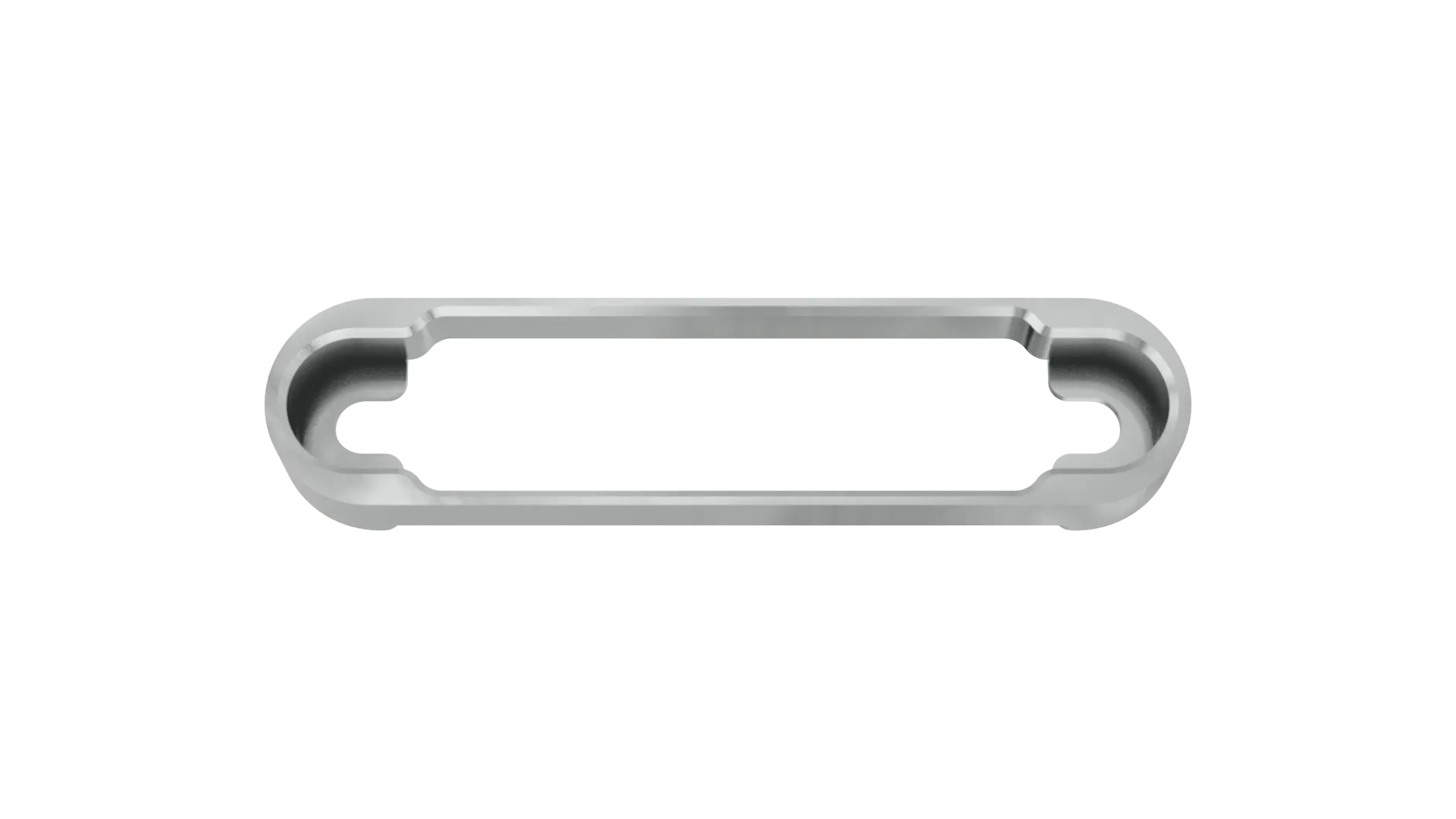

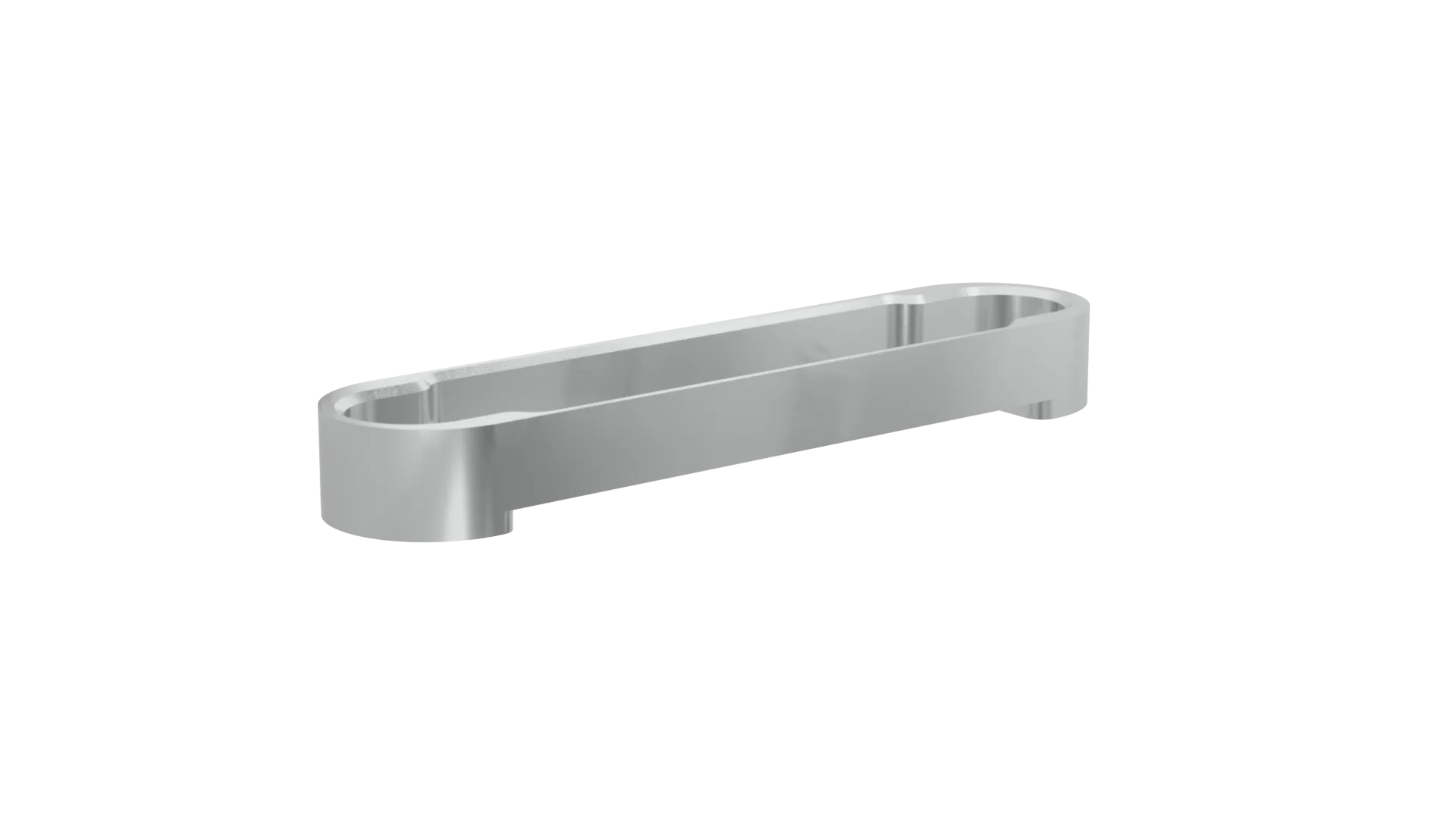

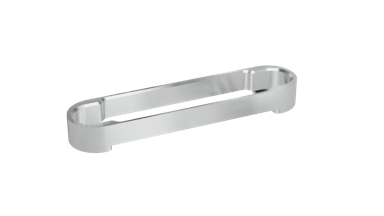

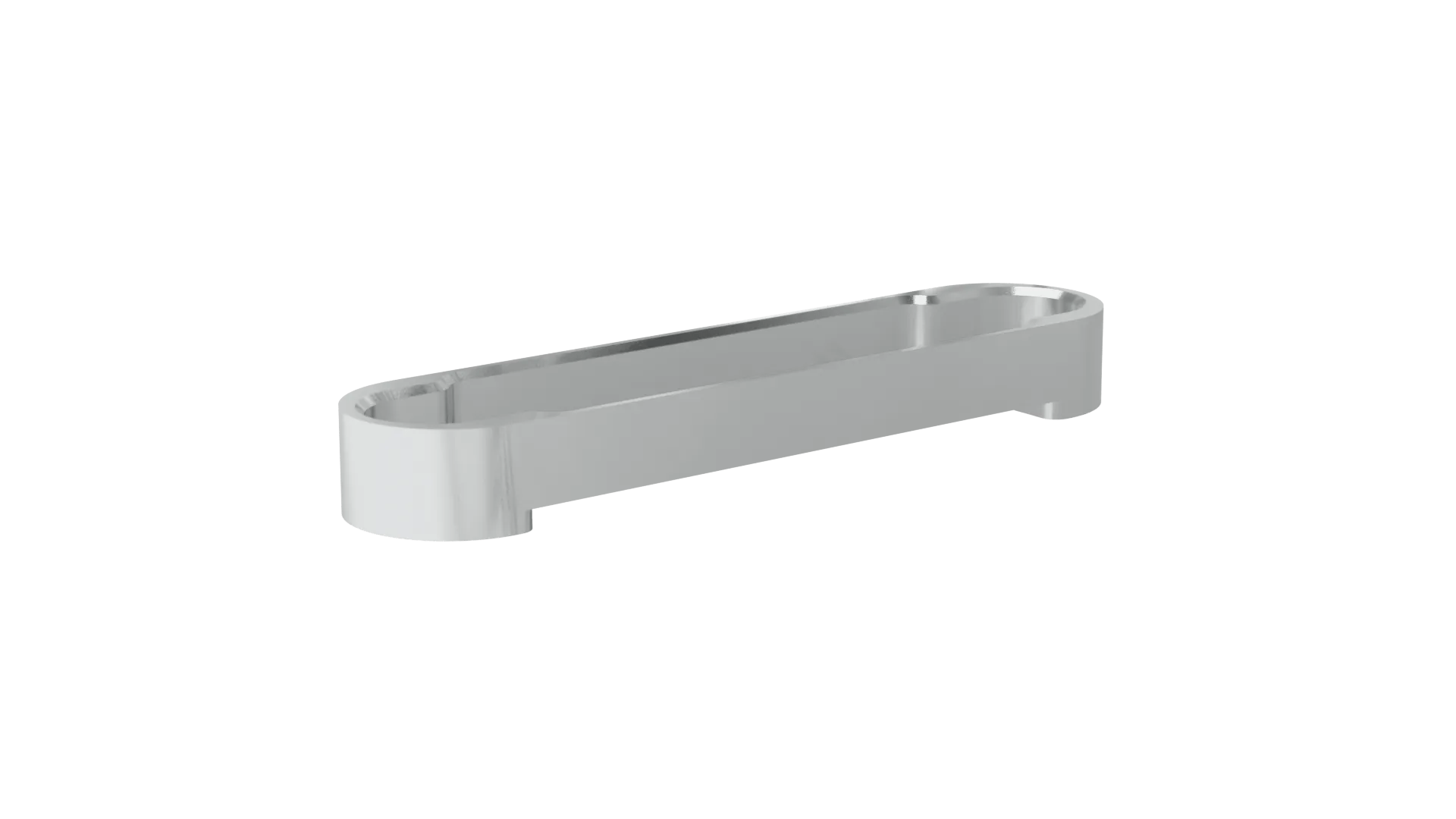

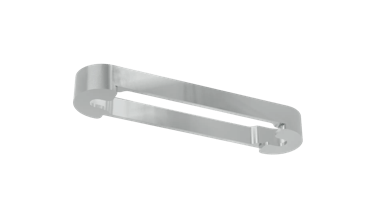

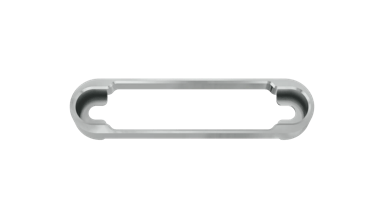

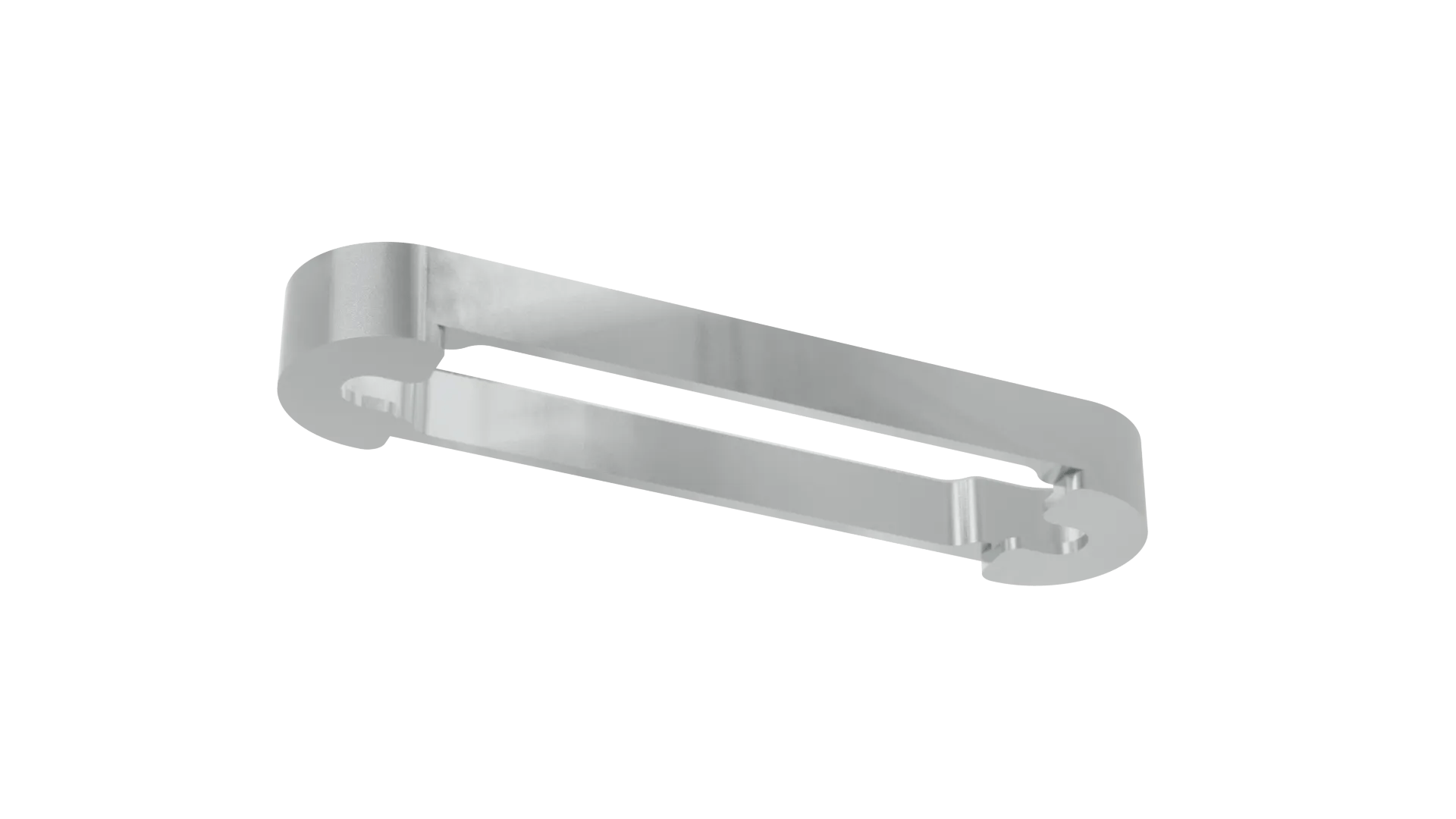

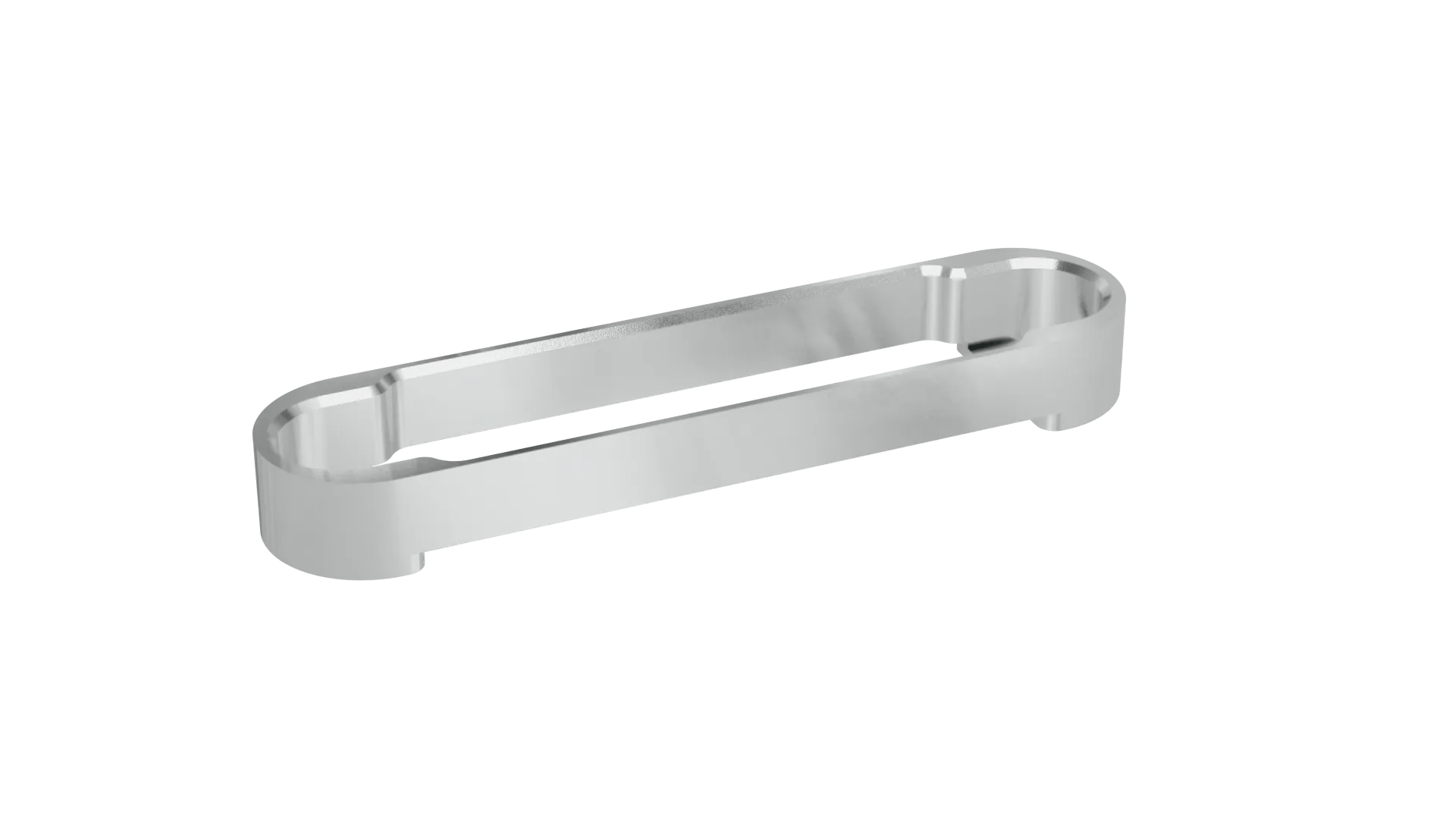

17+17 Pos. Panel Mount Metal Backshell for Gecko-SL

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Metal Backshell item for use with panel mount (cable) or board mount (PCB) connectors. Use with female reverse fix screw-loks, or male standard gender screw-loks.
Use with the following 34-contact connectors or housings: male cable panel mount G125-3243496M2, male PCB connector G125-MV13405M2P, female cable panel mount G125-2243496F3 or female PCB connector G125-FV13405F3P .
If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.

Request Samples

Availability

G125-9603402 - 17+17 Pos. Panel Mount Metal Backshell for Gecko-SL

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Connector Orientation:

Straight

Connection Type:

Panel Mount or Board Mount

Operating Temperature:

-65°C to +150°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Aluminium, Nickel plated

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.738g

Overall Dimensions (L x W x D) in mm:

34.40 x 8.00 x 3.95

Height of Connector above PCB:

3.95mm

Availability

2,048 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - G125-960.pdf

ZIP

G125-9603402 CAD Model (ZIP file containing STP and IGES)

Download

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for G125-960XX02 series

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

PDF

Catalog page - Gecko-SL PCB & Panel Mount Metal Backshell

PDF

Catalog page - Gecko Introduction

PDF

Product Summary - Gecko-SL Metal Backshells

PDF

Product Summary - Gecko-SL High-Reliability Connectors

PDF

Plating thickness on Gecko contacts (signal and power)
