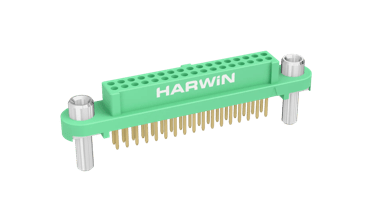

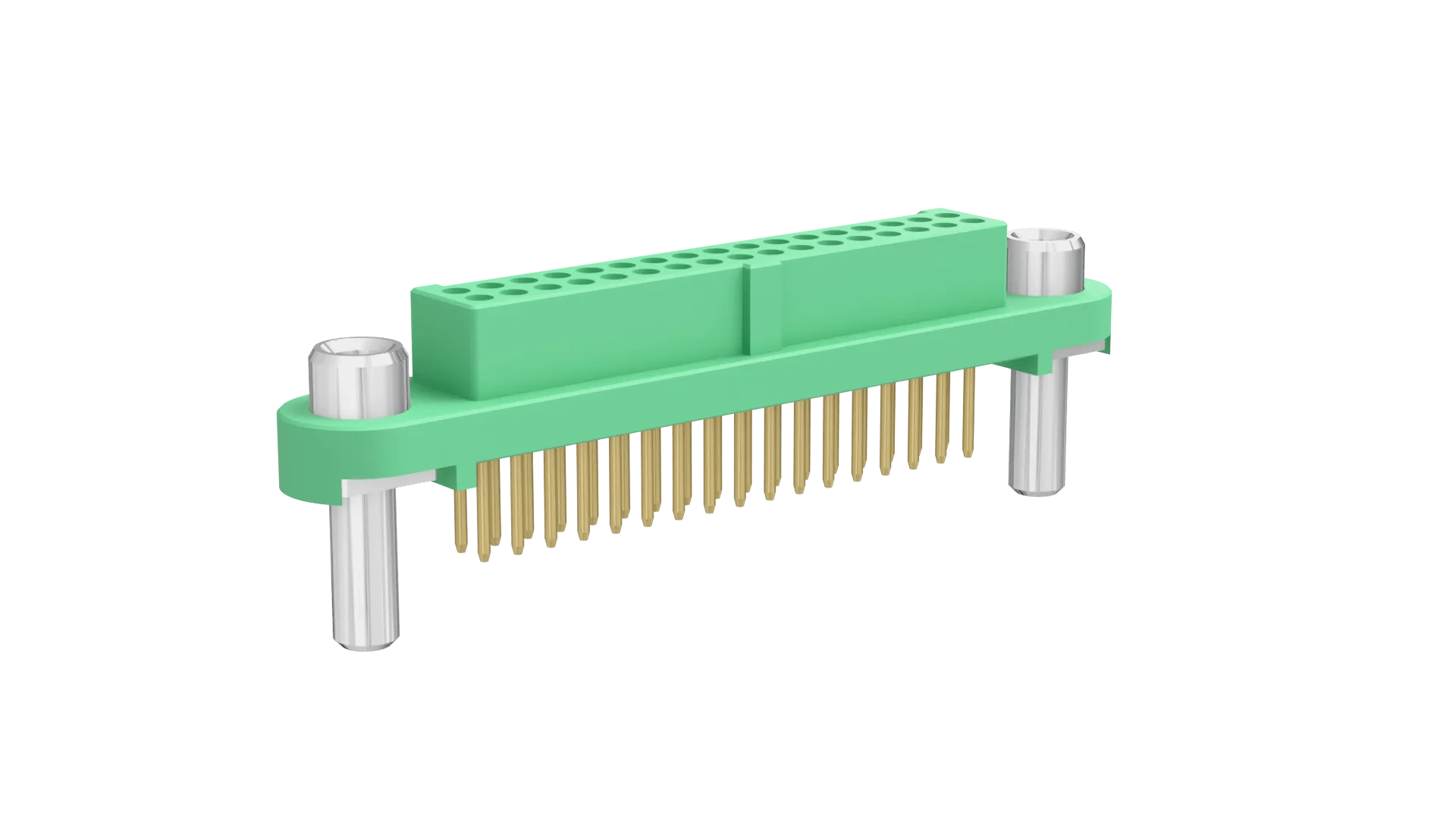

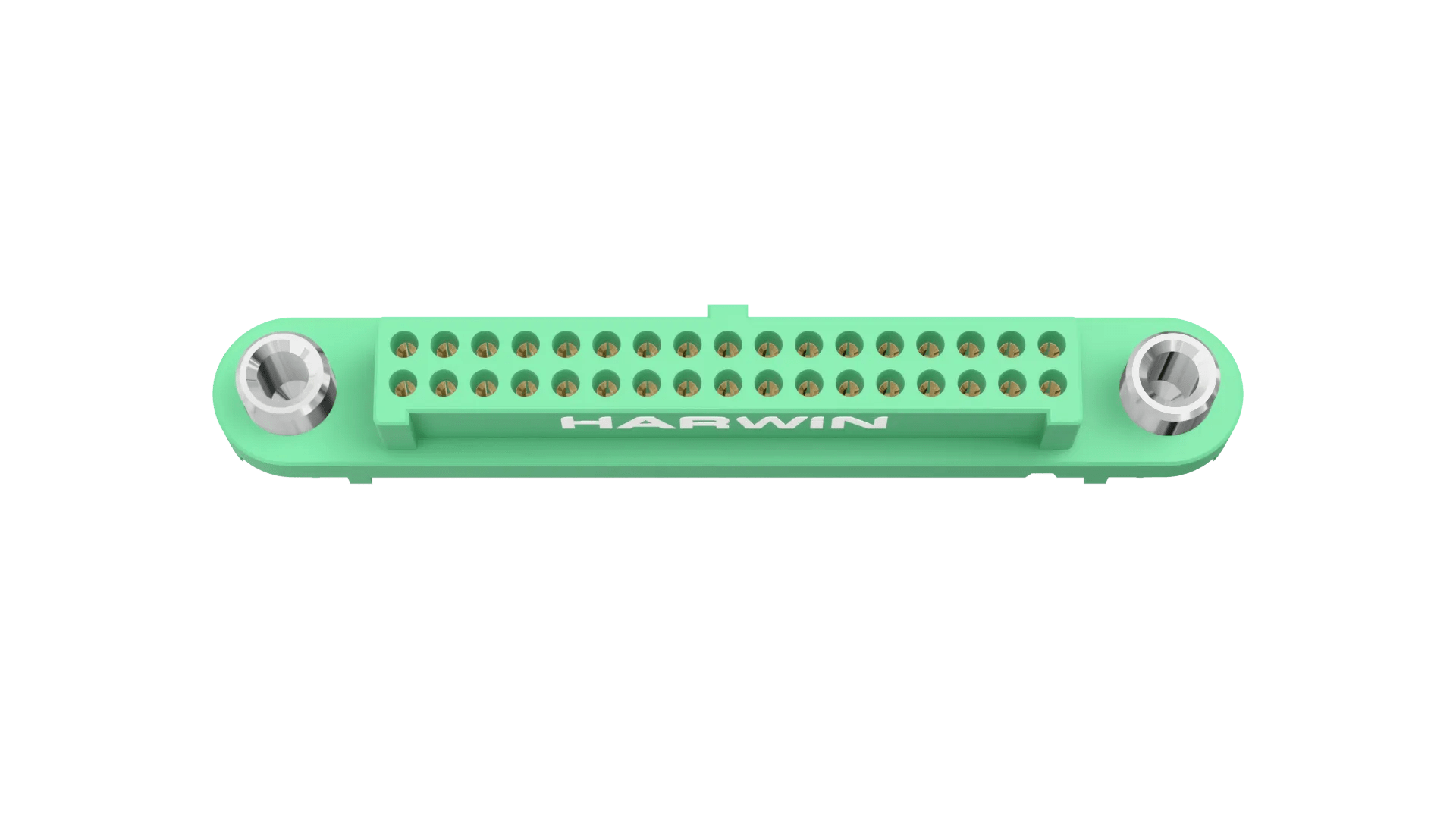

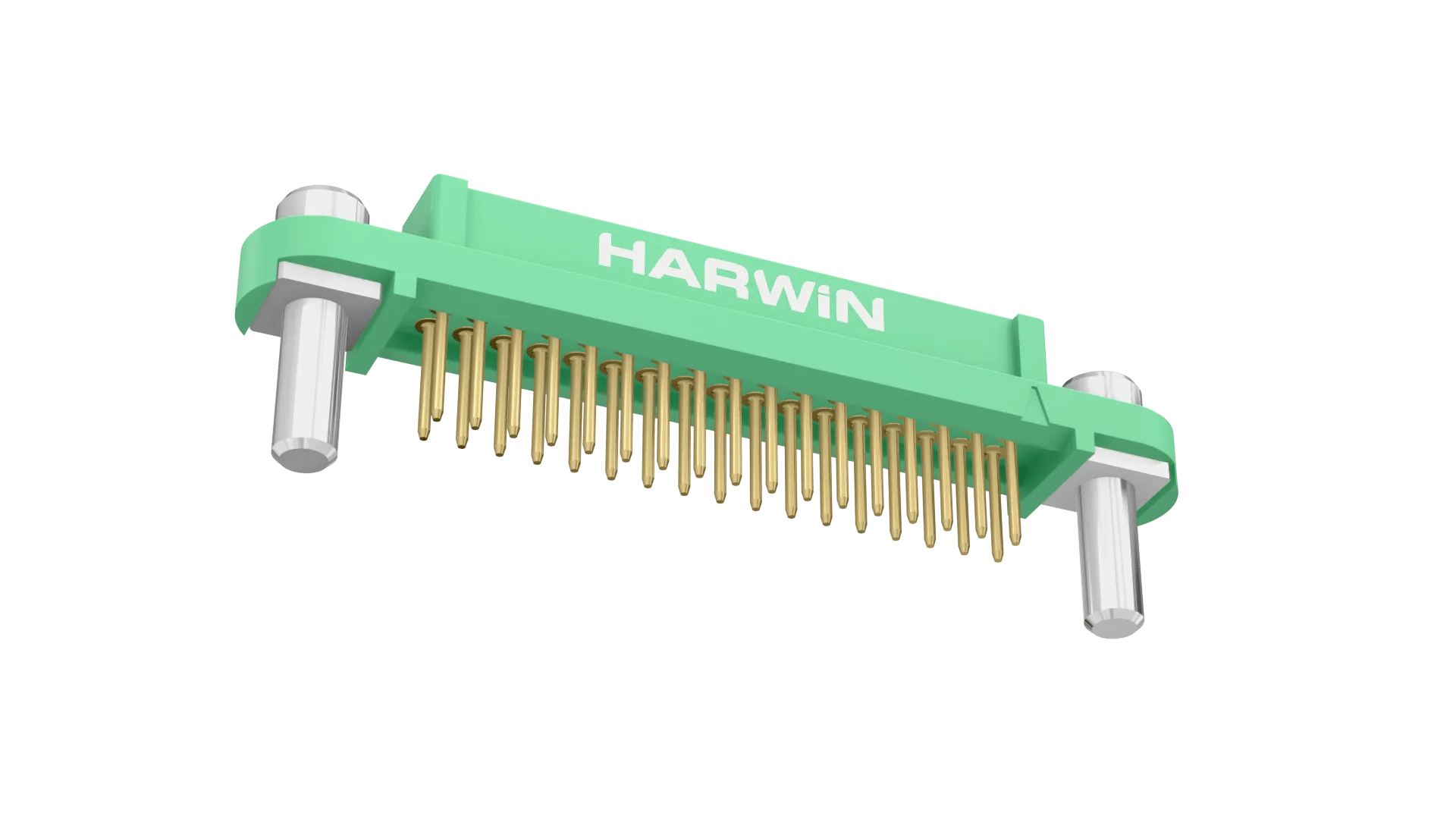

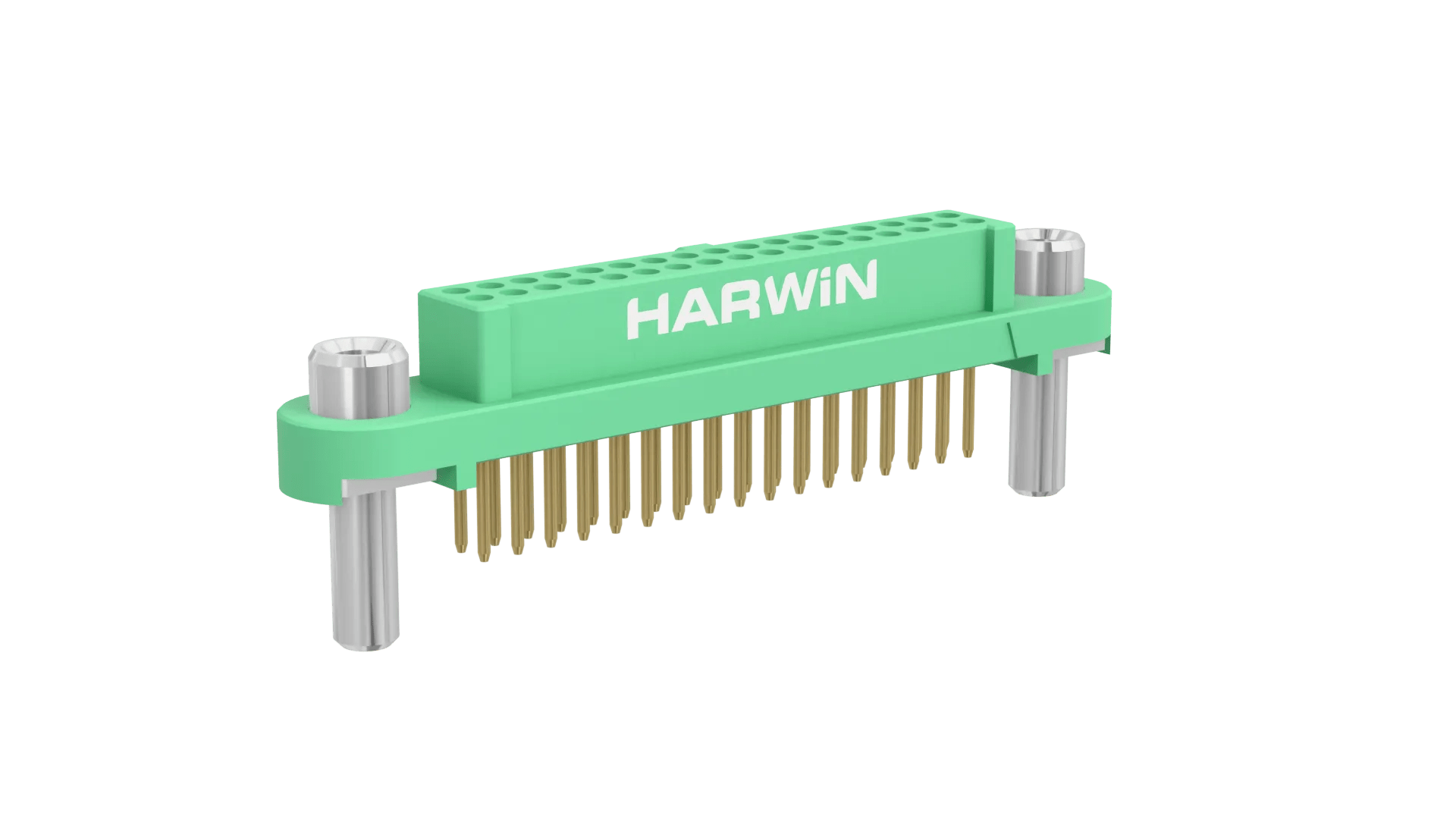

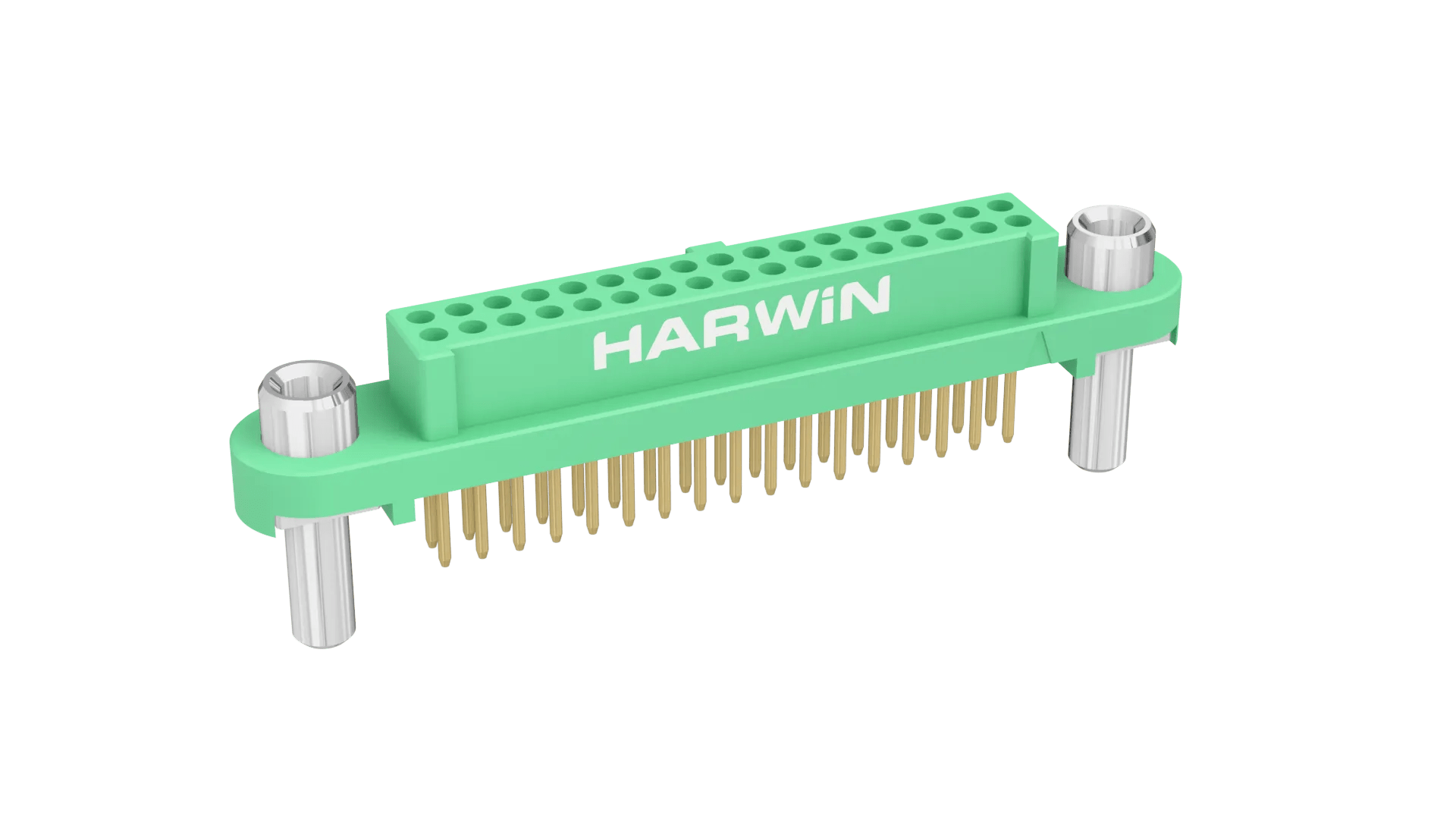

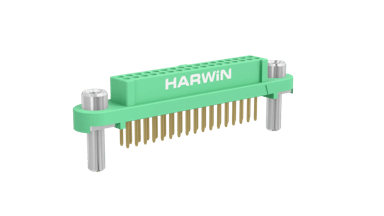

Female receptacle Double Row straight (vertical) connector, throughboard 3mm PCB terminations - 34 contacts (17+17). Fitted with threaded Screw-Lok fixings (for reverse fixing) and 5mm board mount studs. Use hex nut G125-4500000B or slotted nut G125-4510000B for board mount retention.
Packaged in tape strips with pick and place cap. Gold finish on contact areas and terminations. Compatible with metal backshell for board mount (G125-9603402).
For complete pin numbering or pin out information, see Component Specification C125XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size
Ø0.4mm
Number of Rows
2
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
34
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
2.8A max individual contact, 2A max simultaneous (25°C)
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 4T
Base Material of Contact
Beryllium Copper
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel Strip
Finish / Plating on Termination
Gold
Housing Colour
Green
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
1.608g
Dimensions
32.70 x 4.90 x 10.25
Stud Length
5.00mm
Thread Size
M2
PC Tail Length
3.00mm
Height of Connector above PCB
5.25mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - G125-FV1XX05F3P.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Product Information
Catalog page - Gecko-SL Mating Profiles
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Datasheet - Gecko range: signal connectors (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-FV1XX05F3X series
Harwin REACH Statement - G125-FV13405F3P
RoHS Declaration - G125-FV13405F3P
