G125-3242096M2

G125-3242096M2

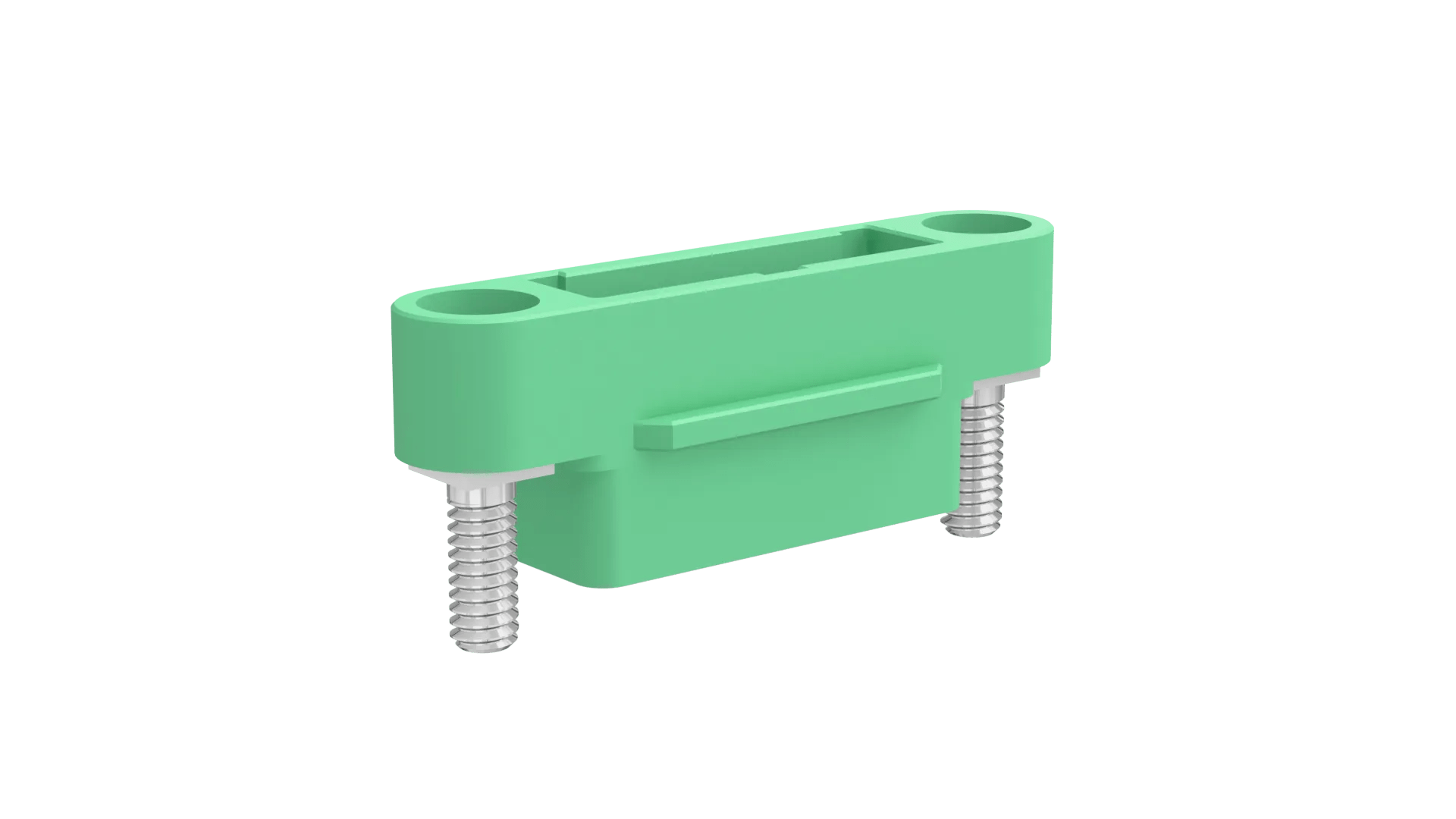

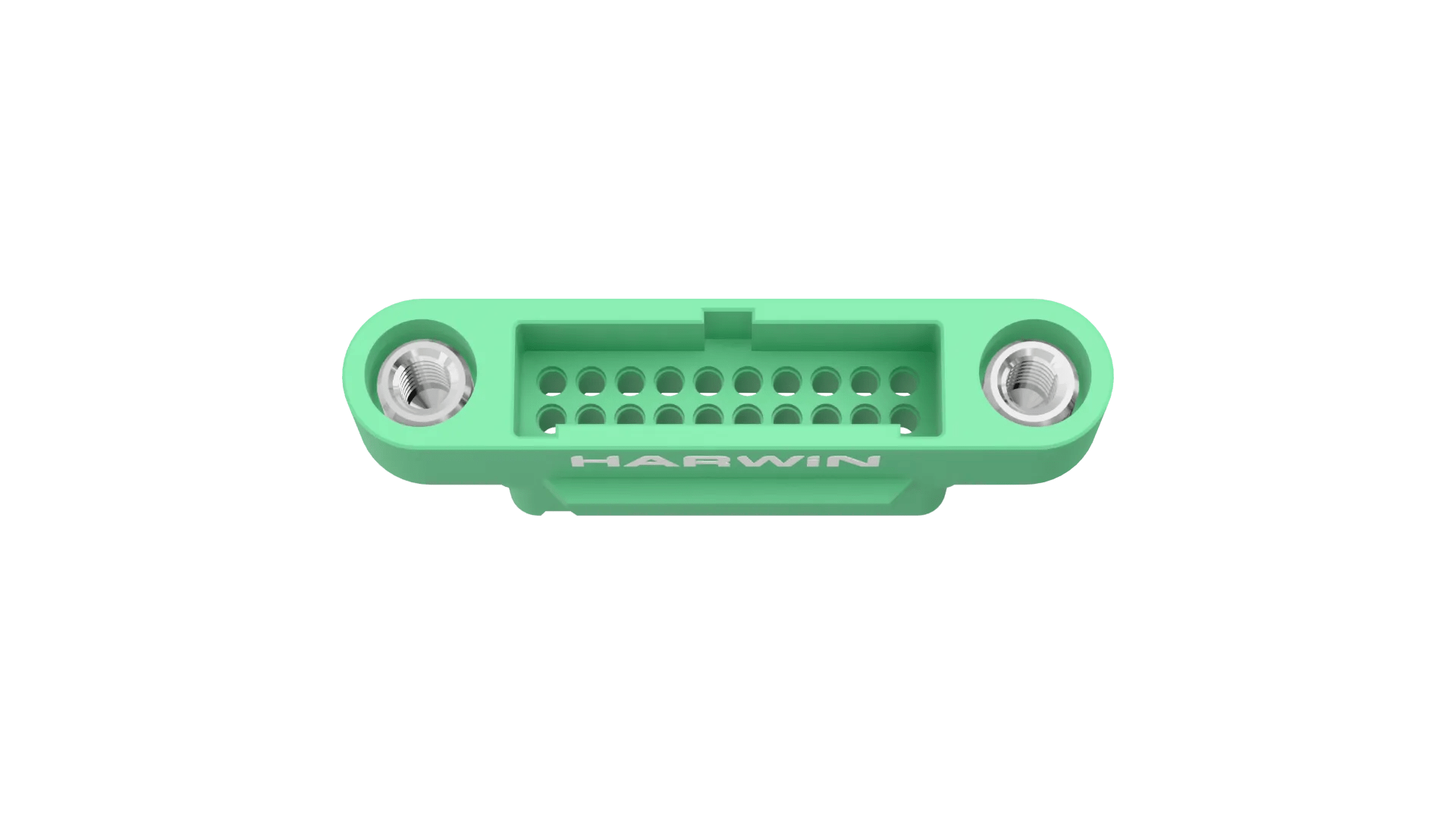

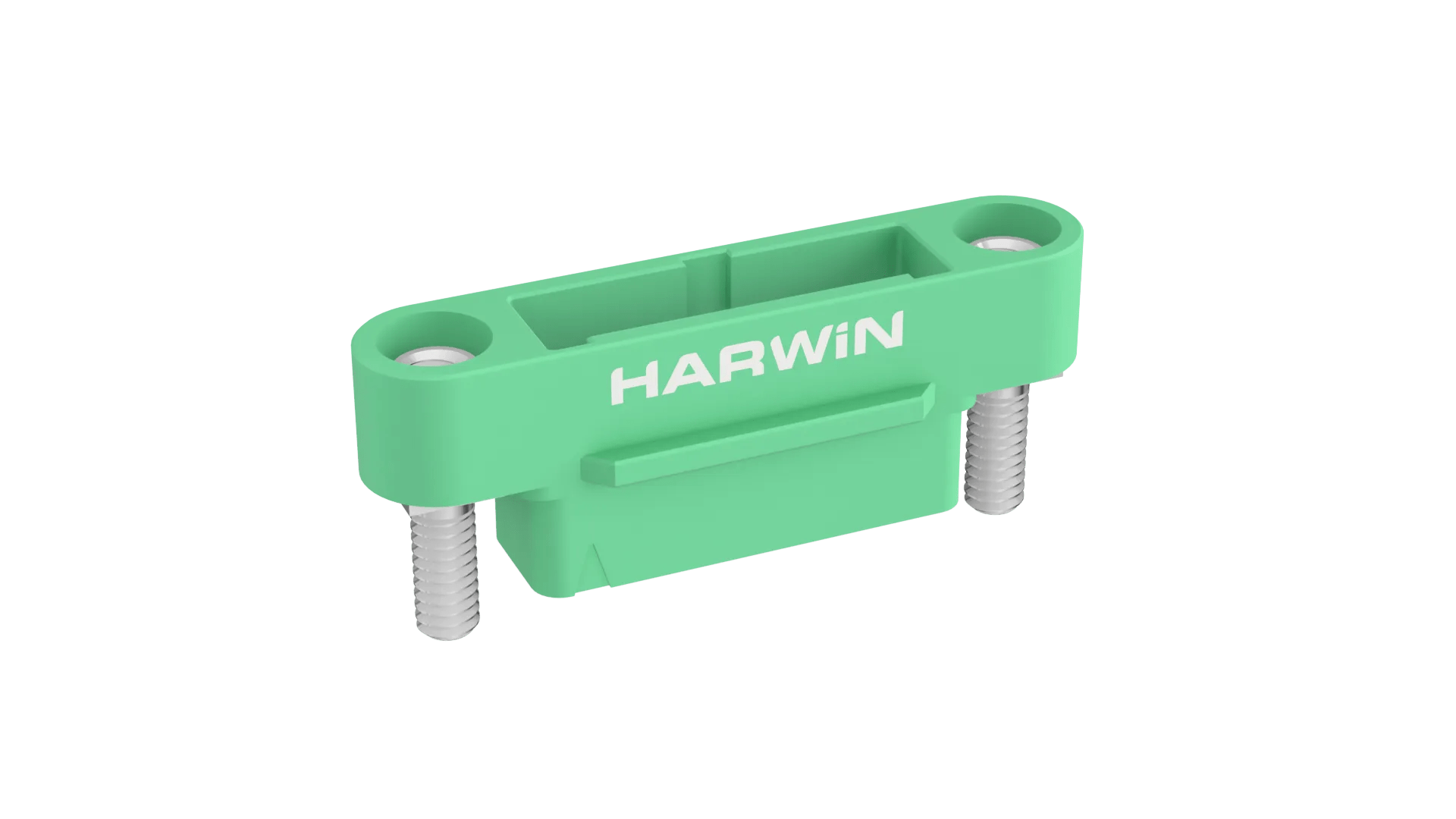

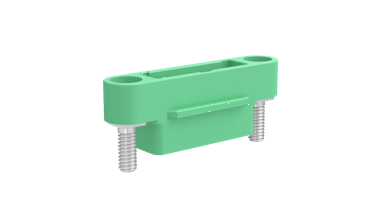

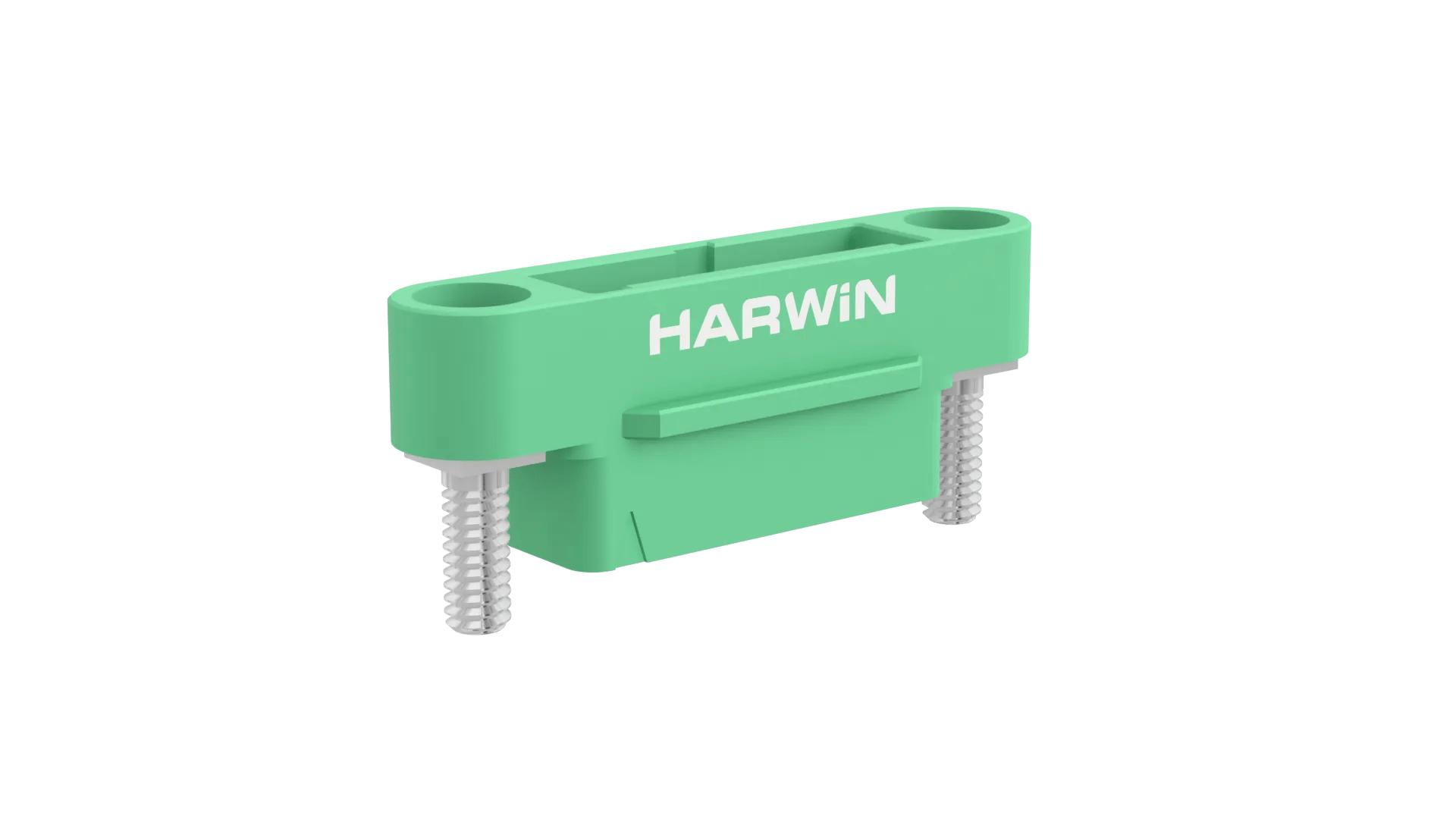

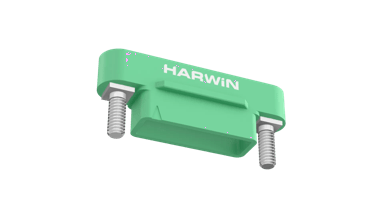

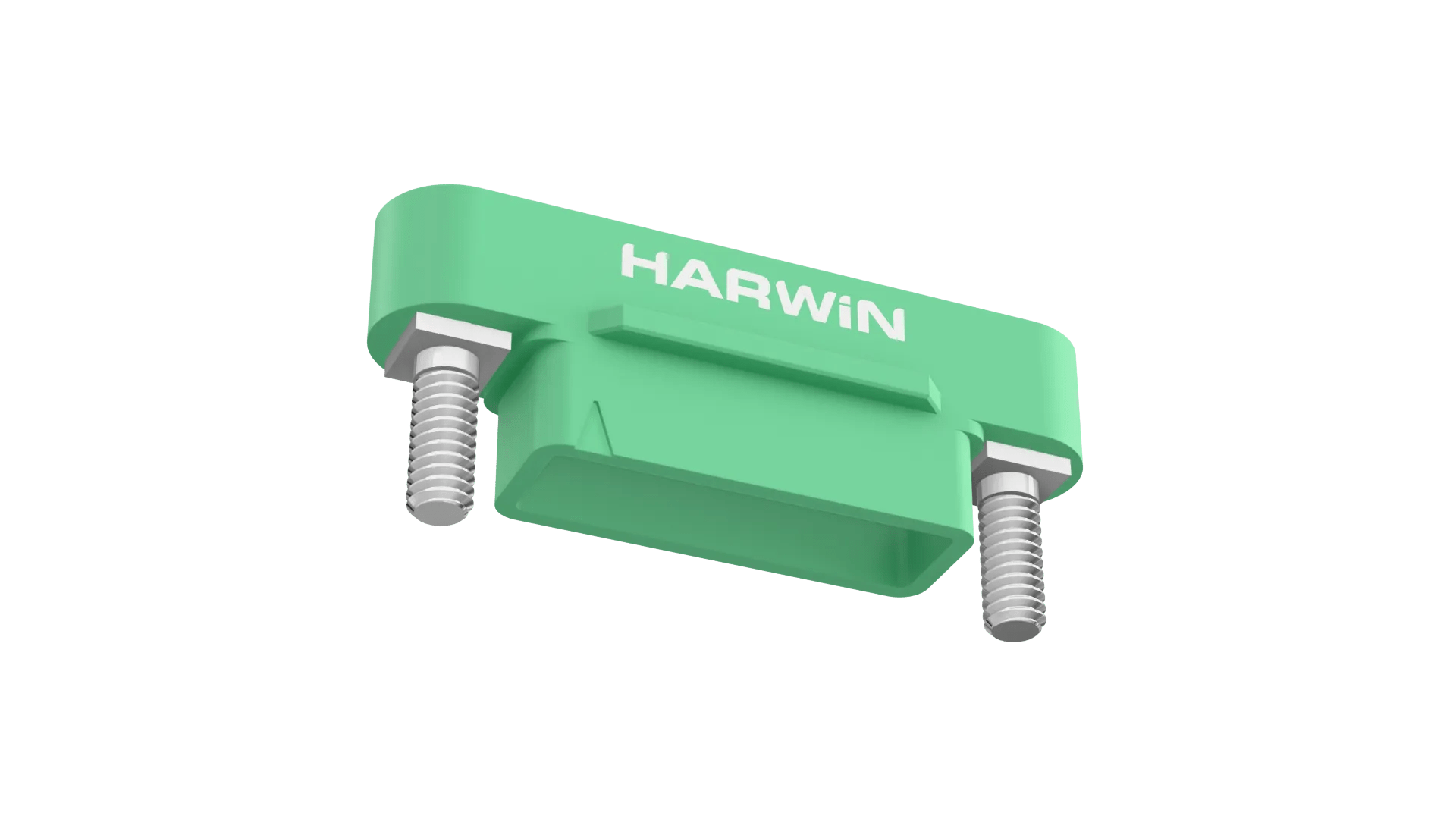

Gecko-SL DIL Male Crimp Connector Housing, with 5.2mm front panel mount screw fixings, 10+10 contacts

HRi
HRi

Traceparts account required

G125-3242096M2

Gecko-SL DIL Male Crimp Connector Housing, with 5.2mm front panel mount screw fixings, 10+10 contacts


1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Internal Thread Screw-Lok with Front Panel Mount Stud (Standard Gender)

  • Mating Pin Size:

    Ø0.4mm

  • Number of Rows:

    2

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    20

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    2.8A max individual contact, 2A max simultaneous (25°C)

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Green

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    1.169g

  • Dimensions:

    23.95 x 6.50 x 8.40

  • Stud Length:

    5.20mm

  • Thread Size:

    M2

Downloads

    Product Information

  • IS-38 - Z125-902 Assembly Tool Instruction Sheet

  • Catalog page - Gecko-SL Mating Profiles

  • IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

  • Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Product Training Module - Panel Mount with Gecko-SL

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-324XX96M2.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - G125-3242096M2

  • Material composition for G125-324XX96M2 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
