Image may be representative. Refer to the product title for more information.

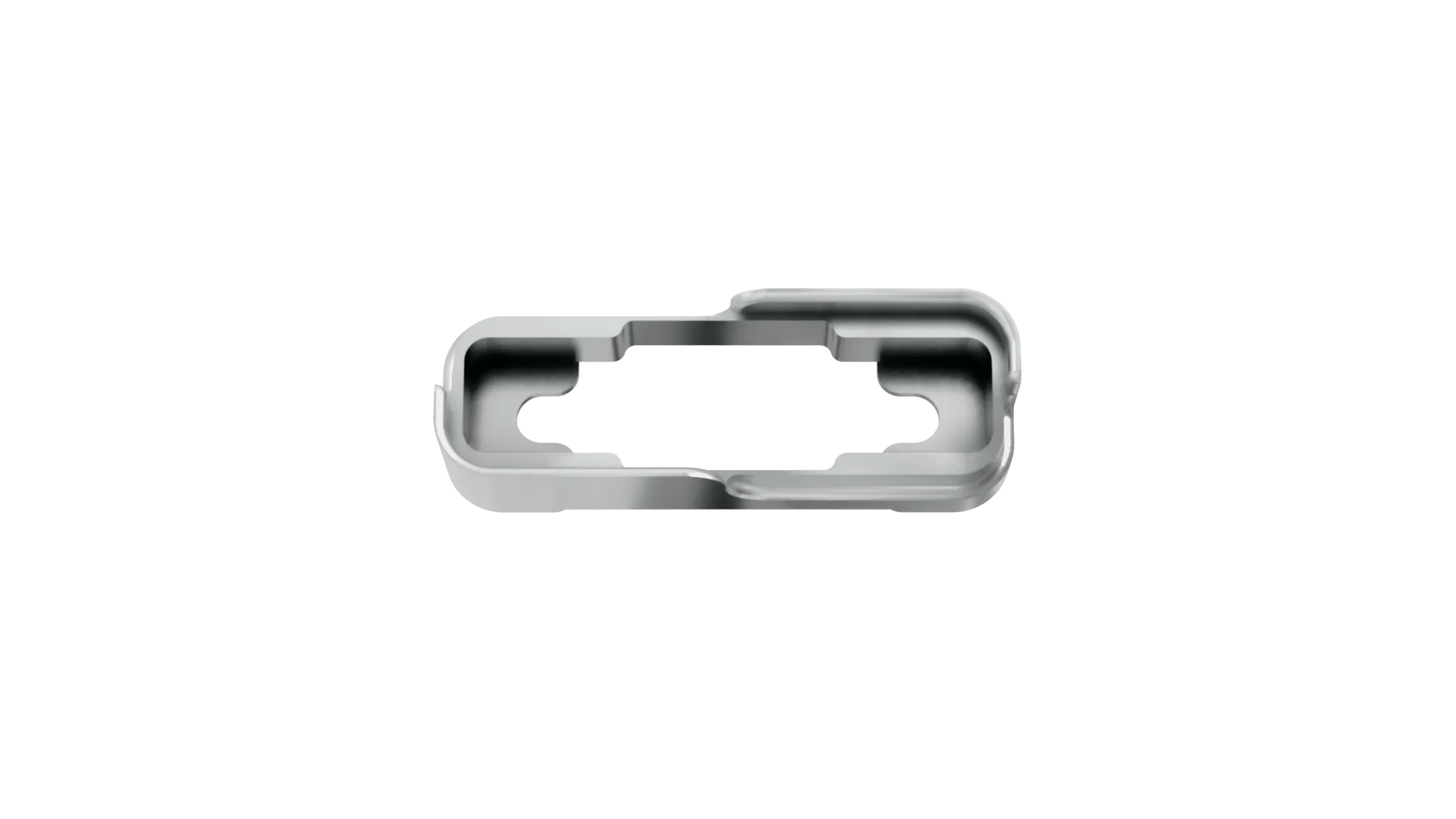

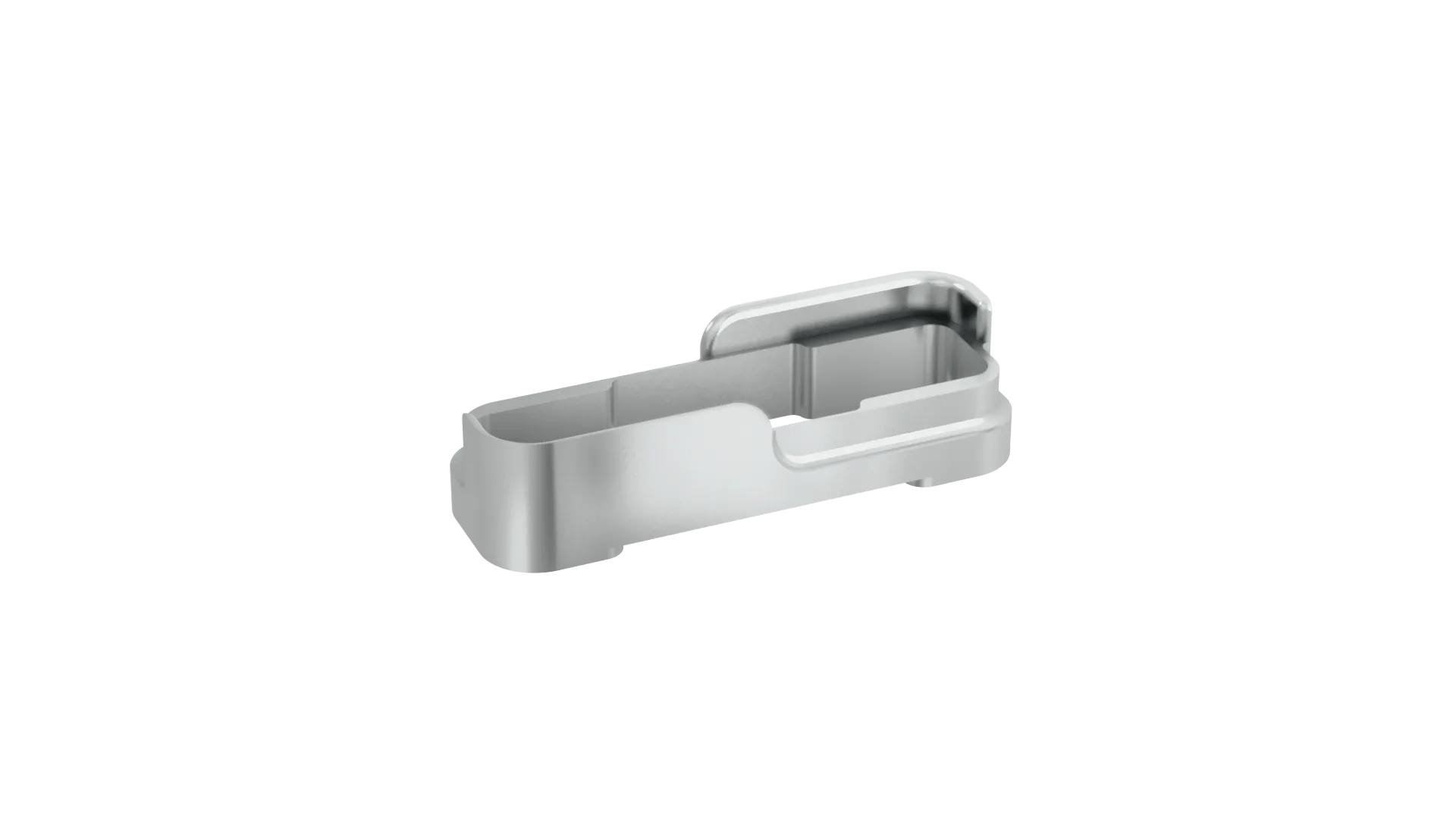

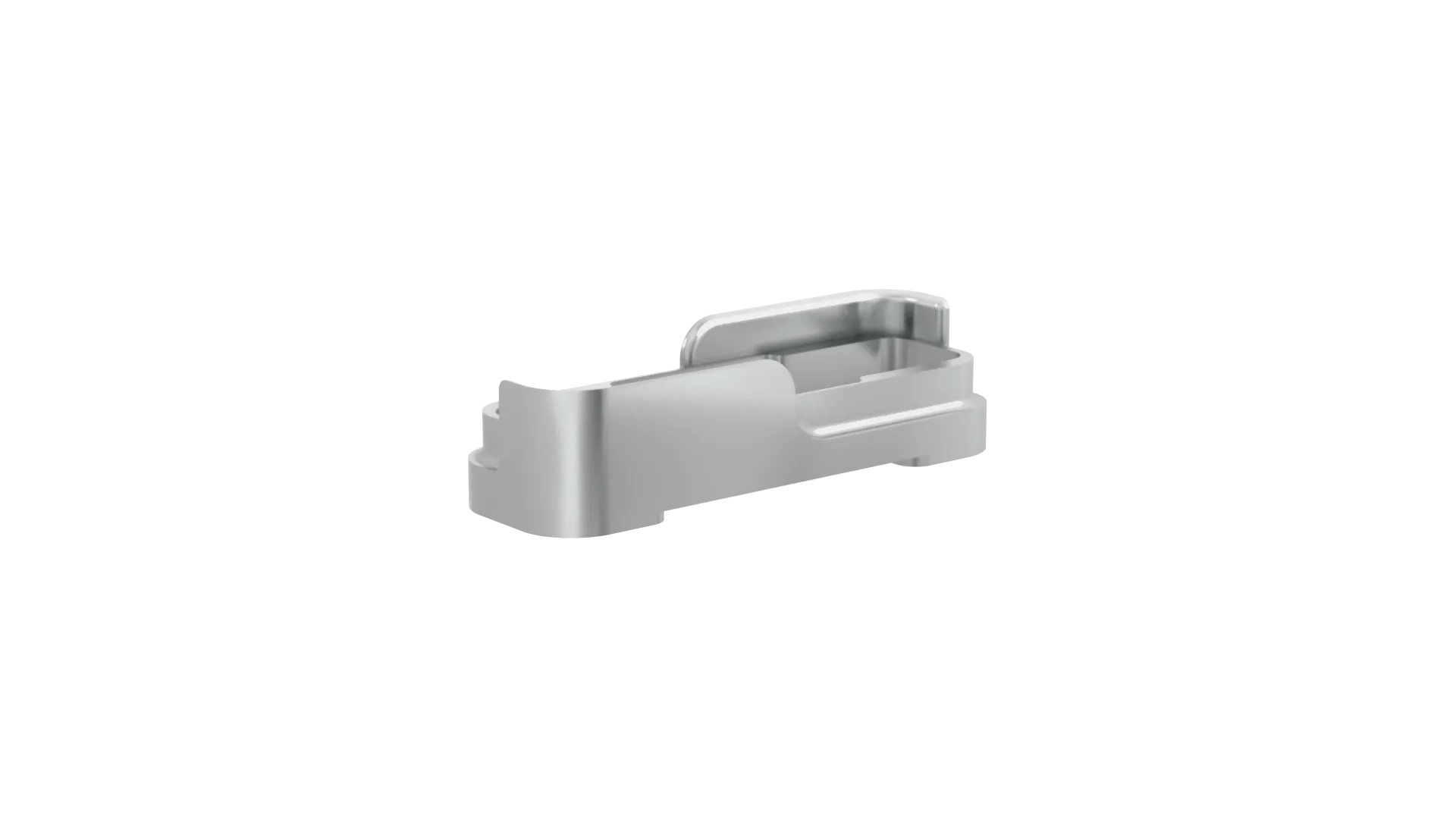

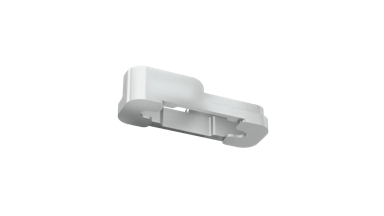

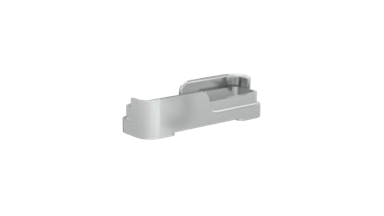

Metal Backshell item for front panel mount (cable) or board mount (PCB) connectors. Use with female receptacle connectors fitted with reverse fix screw-loks, or male plug connectors fitted with standard gender screw-loks - both with mounting studs.
Use with the following 2-power/4-signal contact connectors or housings: male plug cable front panel mount G125-32496M2-02-04-00, female receptacle cable front panel mount G125-22496F3-02-04-00 or female receptacle PCB connector G125-FV104F3-02AB000P.
If using with a double-ended cable assembly, it will need to be assembled on the cable before both connectors are fitted to the cables.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Compatible with Board Mount
Number of Rows
Mixed
Connector Orientation
Straight
Side Stackable
No
Number of Power/Coax Contacts
2
Number of Signal Contacts
4
Operating Temperature
-65°C to +150°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable
No
Materials
Housing Material
Aluminium Alloy
Packaging Style
Bulk/Loose
Housing Colour
Nickel
Dimensions
Contact Pitch
1.25mm (0.049")
Weight
0.848g
Dimensions
24.55 x 8.20 x 6.10
Height of Connector above PCB
6.10mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - G125-96002-XX-XX-XX.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Product Information
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Training Module - Panel Mount with Gecko-SL
Product Datasheet - Gecko range: signal connectors (HRi)
Test Reports
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material Composition for G125-96002-02-04-00
RoHS Declaration - G125-96002-02-04-00
