G125-FV104F3-02AB000P

4+2 Pos. Female Vertical Throughboard Conn. Screw-Lok Reverse Fix


1.25mm Pitch High-Reliability Connector - Gecko-MT

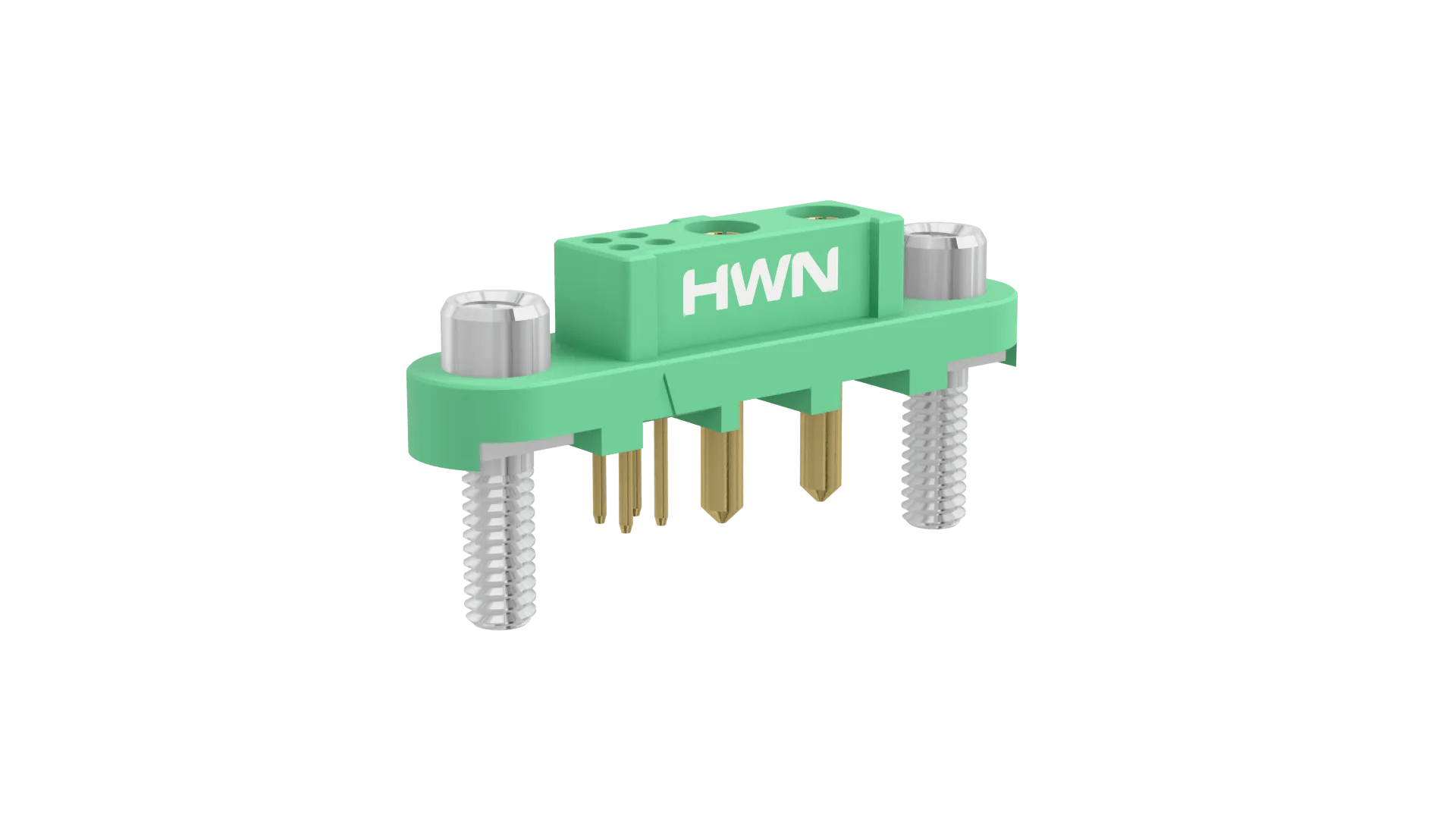

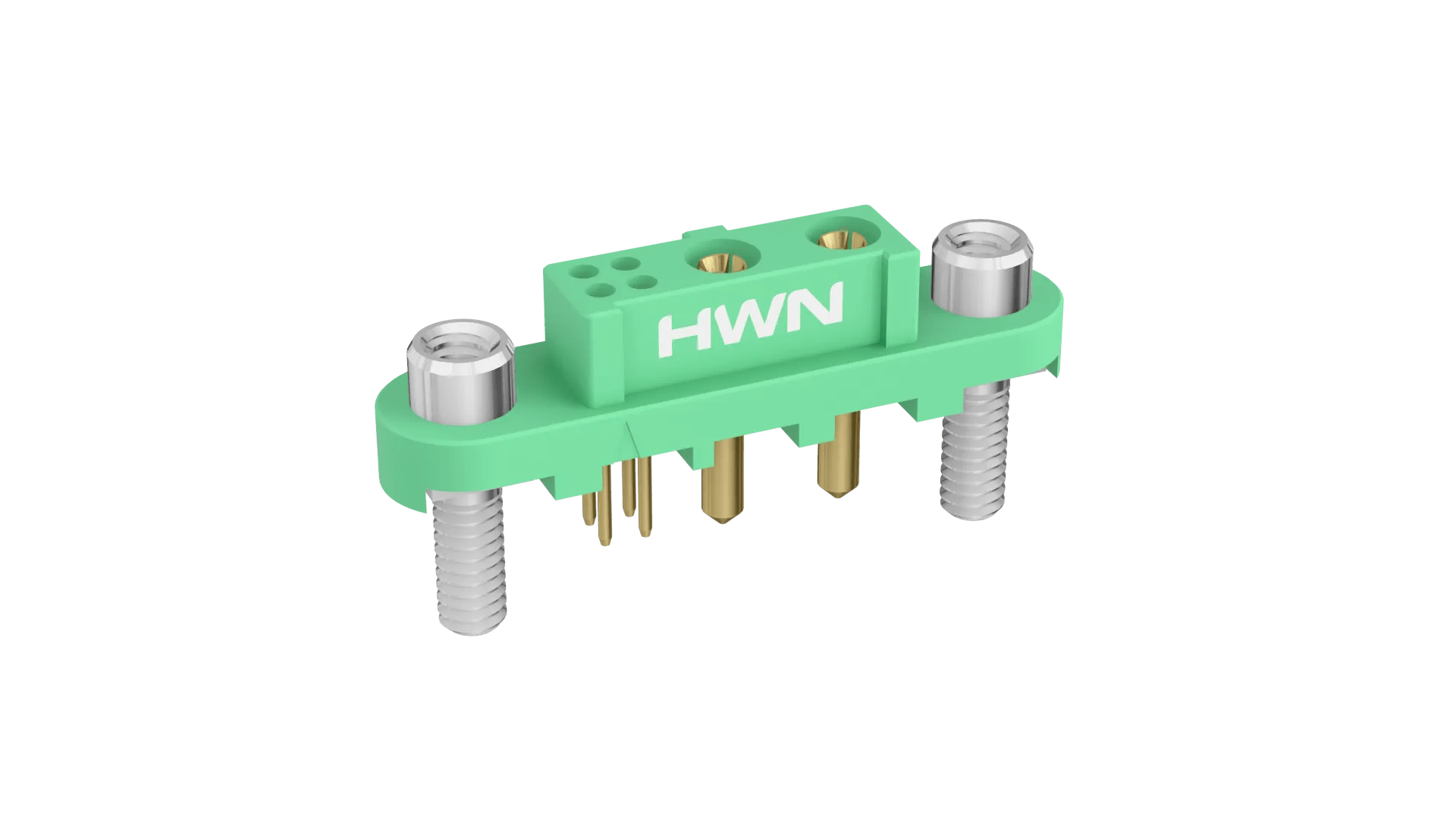

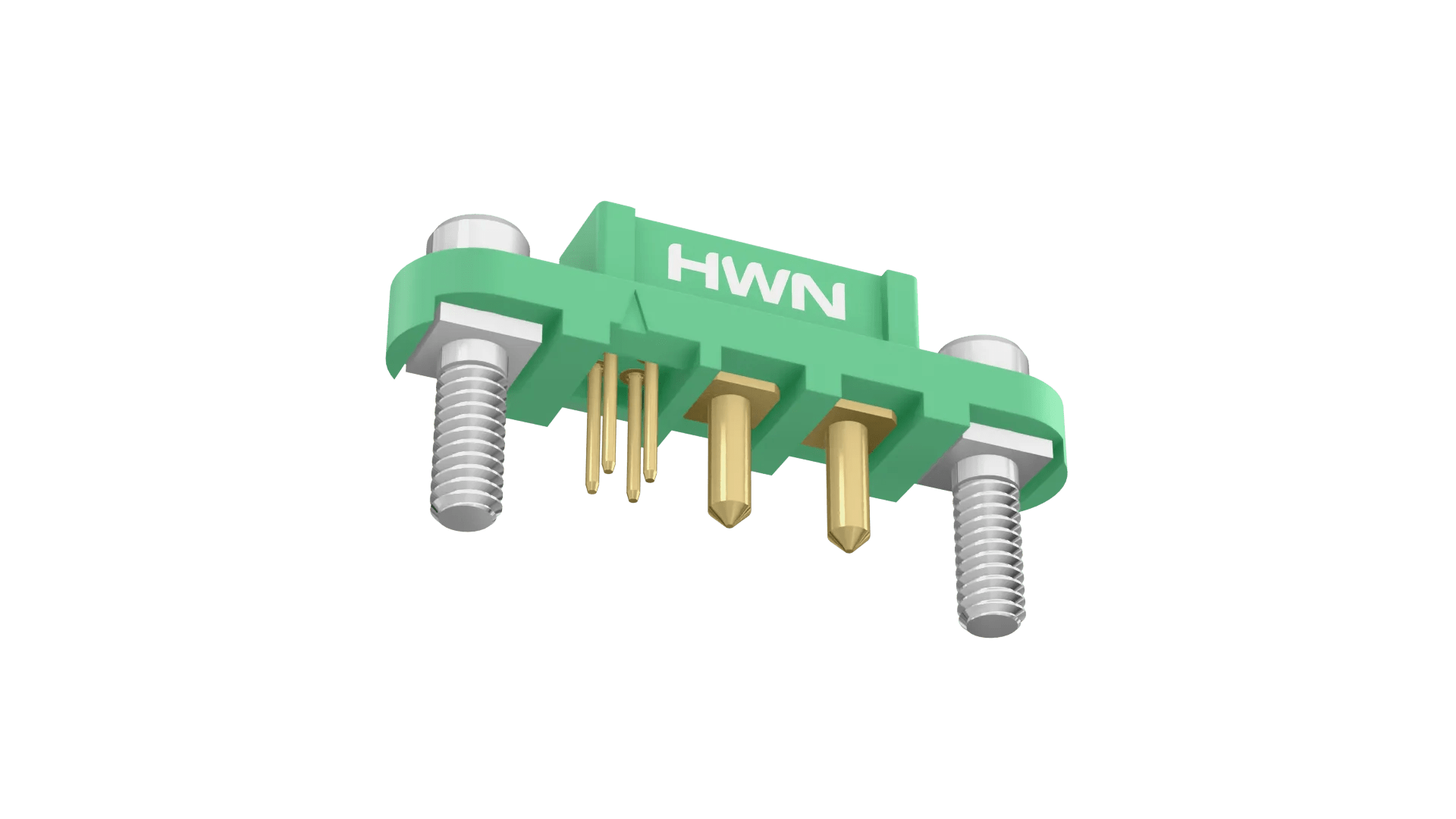

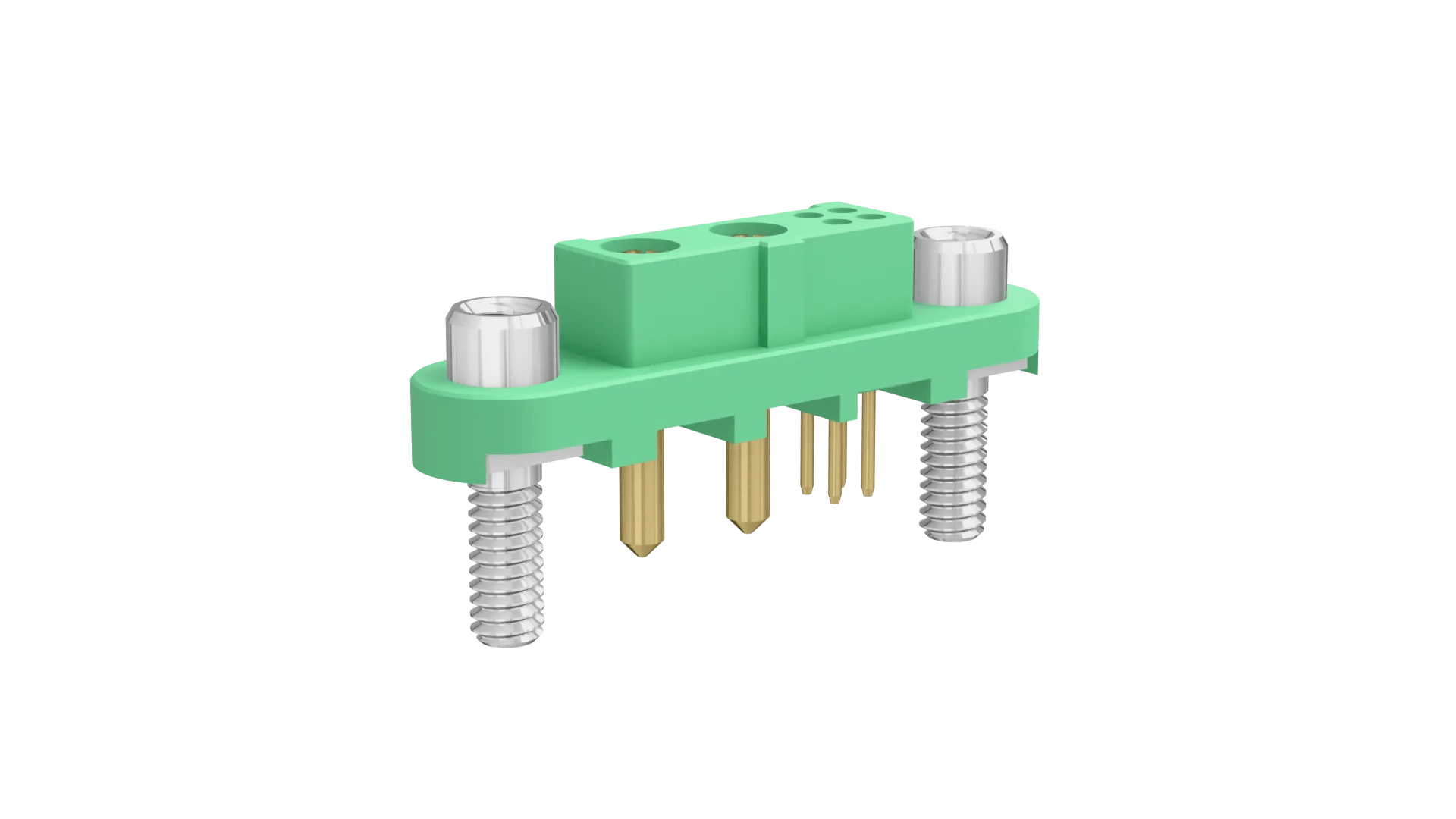

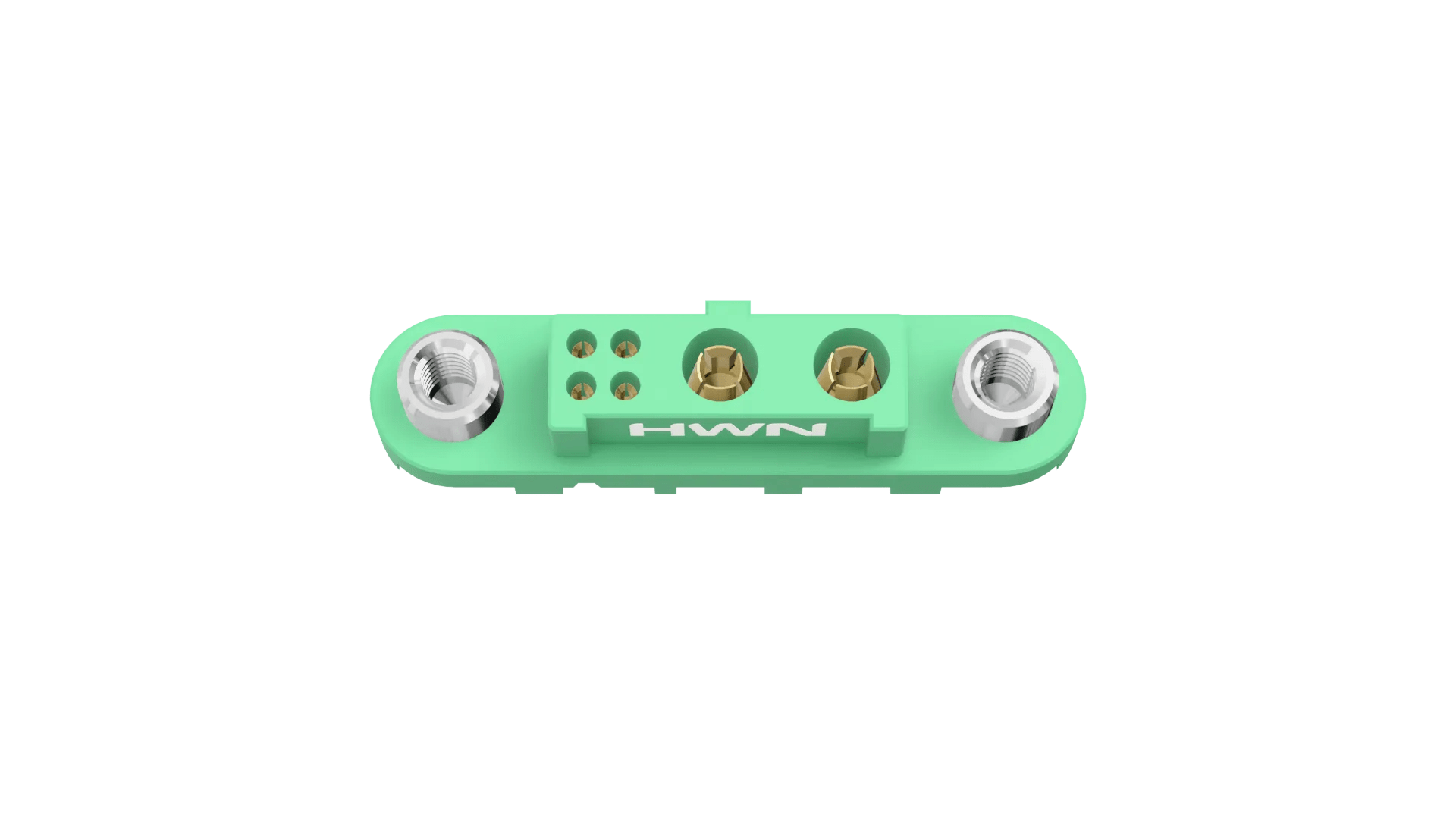

  • Female Vertical Throughboard connector - 2 power, 4 signal contact arrangement. Power contacts are 3.6mm termination length, signal are 3mm. Fitted with threaded Screw-Loks (for reverse fixing) with 5mm board mount studs. Use hex nut G125-4500000B or slotted nut G125-4510000B for PCB strain relief.

  • Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C125XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    1.25mm (0.049")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    Ø0.4mm, Ø1mm

  • Style of Jackscrews:

    Internal Thread Screw-Lok with Board Mount Stud (Reverse Fix)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    Mixed

  • Number of Signal Contacts:

    4

  • Number of Special (Power or Coax) Contacts:

    2

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper

  • Housing Material:

    Polyamide (Nylon) 4T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel Strip

  • Height of Connector above PCB:

    5.25mm

  • PC Tail Length:

    3.00mm and 3.60mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    1.233g

  • Dimensions:

    21.05 x 4.90 x 8.85

  • Operating Temperature:

    -65°C to +150°C

Downloads

    Environmental Compliance

  • RoHS - G125-FV104F3-02AB000P

  • Material composition for G125-FV1XXF3-YYAB000P series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-FV1XXF3-XXAB000P.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Plating thickness on Gecko contacts (signal and power)

  • Outgassing data for Harwin products (plastics)

  • Test Reports

  • Test Report HT087 - Gecko-MT Phase 2 additions + General (Electrical + Mechanical and Environmental)

  • Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental

  • Product Information

  • Catalog page - Gecko-MT Pin Numbering + Mating Profiles

  • Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power

  • Product Datasheet - Gecko-MT range (HRi)
