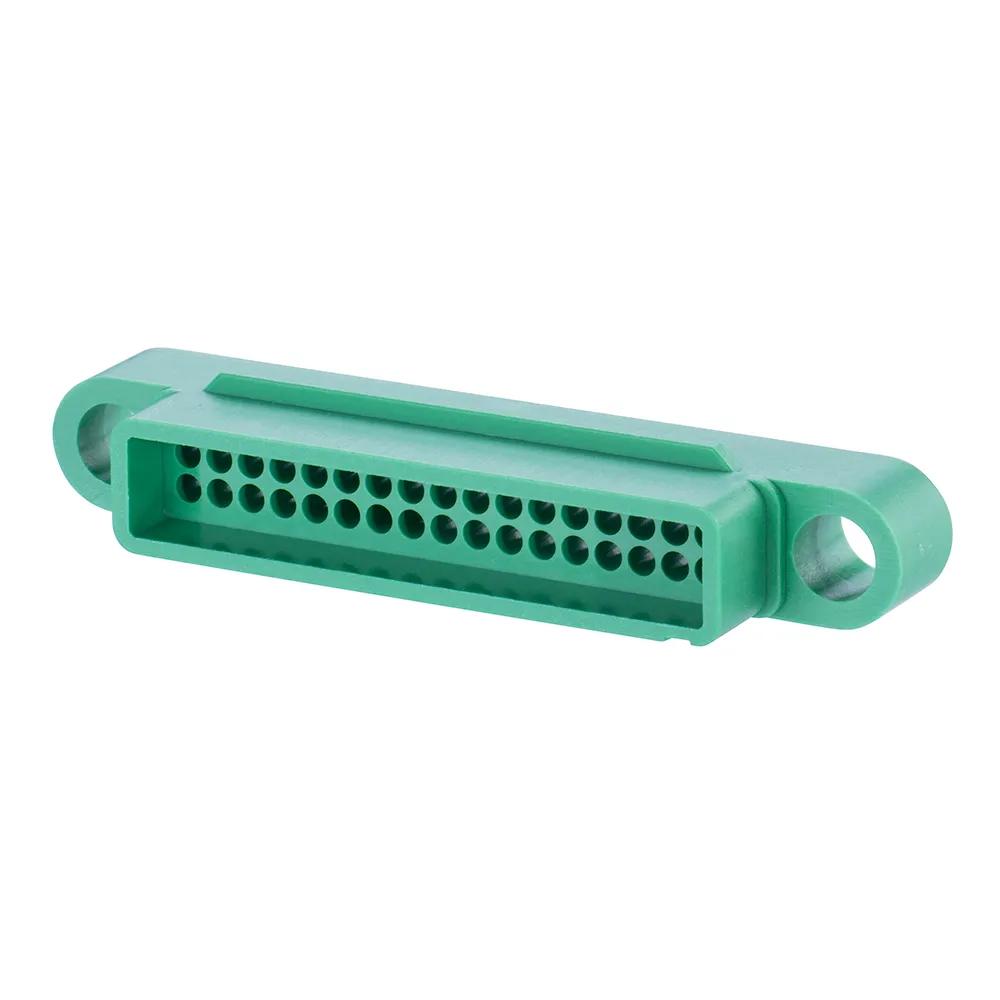

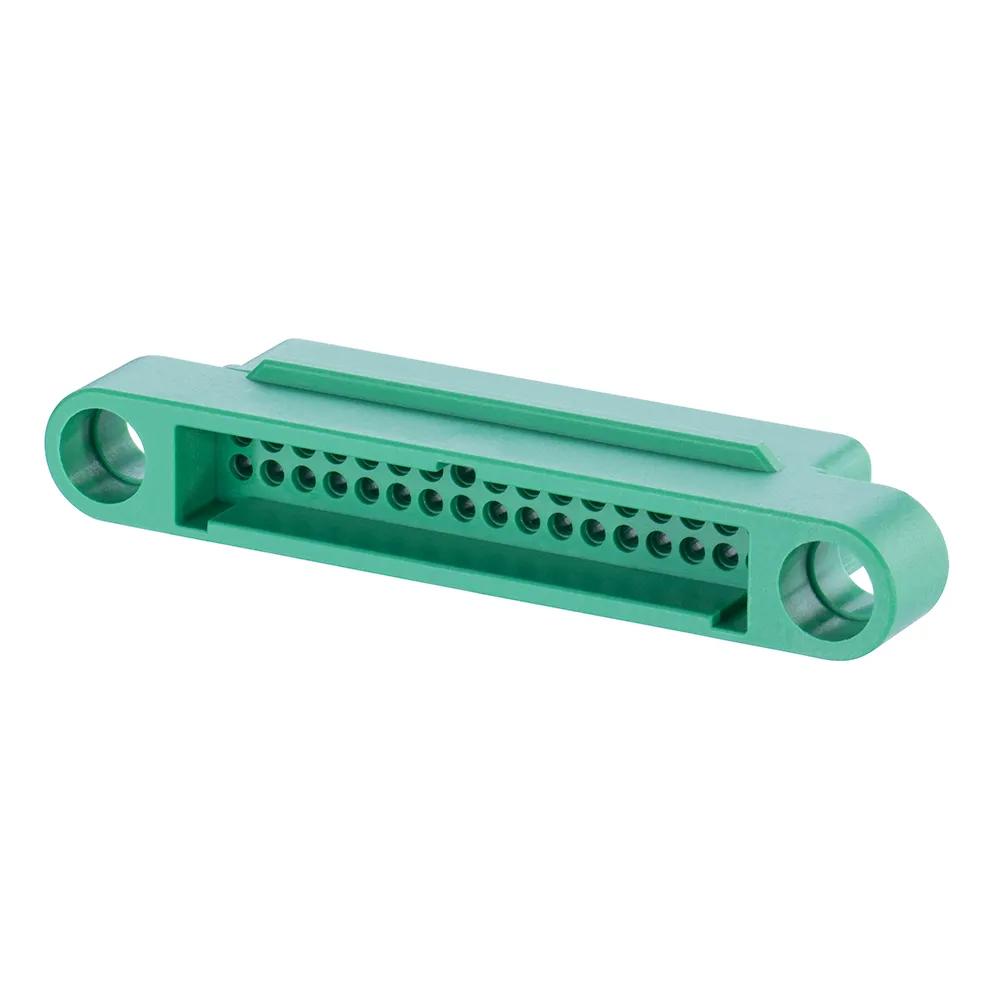

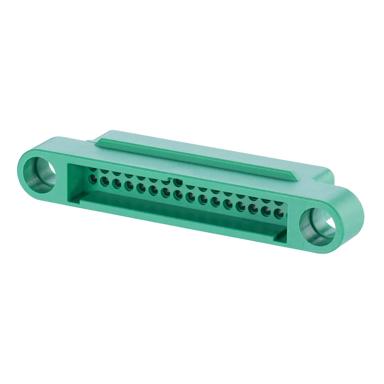

17+17 Pos. Male DIL Cable Housing, no Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
Made to order
8 similiar products View products
- Male Double Row Crimp Connector Housing without screw fixings – 34 (17+17) contacts. Compatible with metal backshell for cable (G125-96434F1) for reverse fix mating requirements.
- Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
- For complete pin numbering or pin out information, see Component Specification C125XX.
EU RoHS Status:
Mating Pin Size:
2.8A max individual contact, 2A max simultaneous (25°C)
-65°C to +150°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Polyamide (Nylon) 4T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
32.70 x 6.50 x 8.40
Frequently Asked Questions Ask a Question
Does the female crimp contact G125-0010005 (26 AWG) mate with male contact G125-1020005 (28-32 AWG)?
Yes, you can mate together the two different cable size contacts. Both male contacts and both female contacts have the same front half of the contact for mating compatibility. It is only the bore at the rear of the contact, where the wire is inserted, that is different for the 26 AWG and 28-32 AWG types. So both female contacts G125-0010005 and G125-002005 mate with both male contacts G125-1010005 and G125-1020005.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
