G125-96434F1

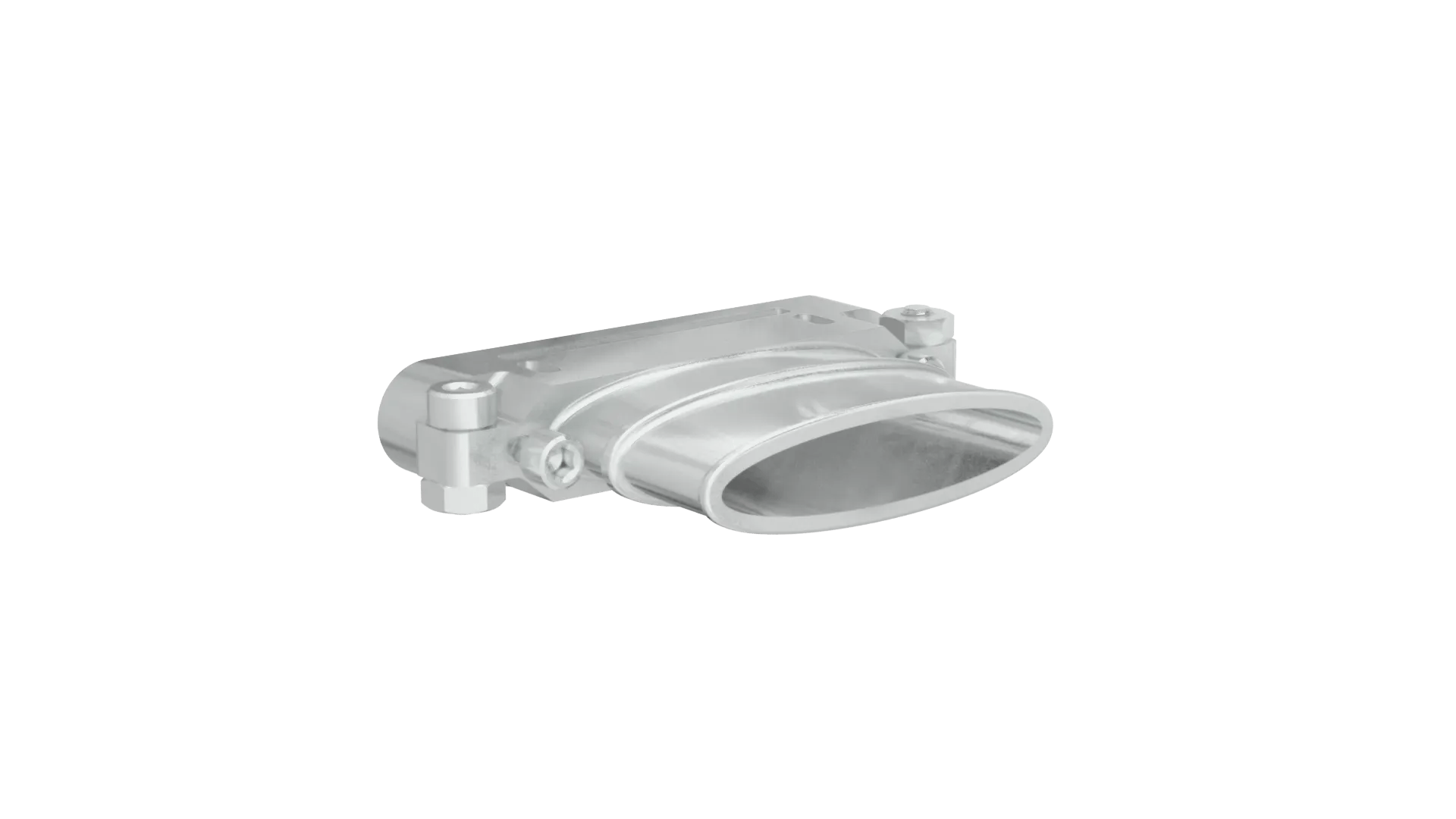

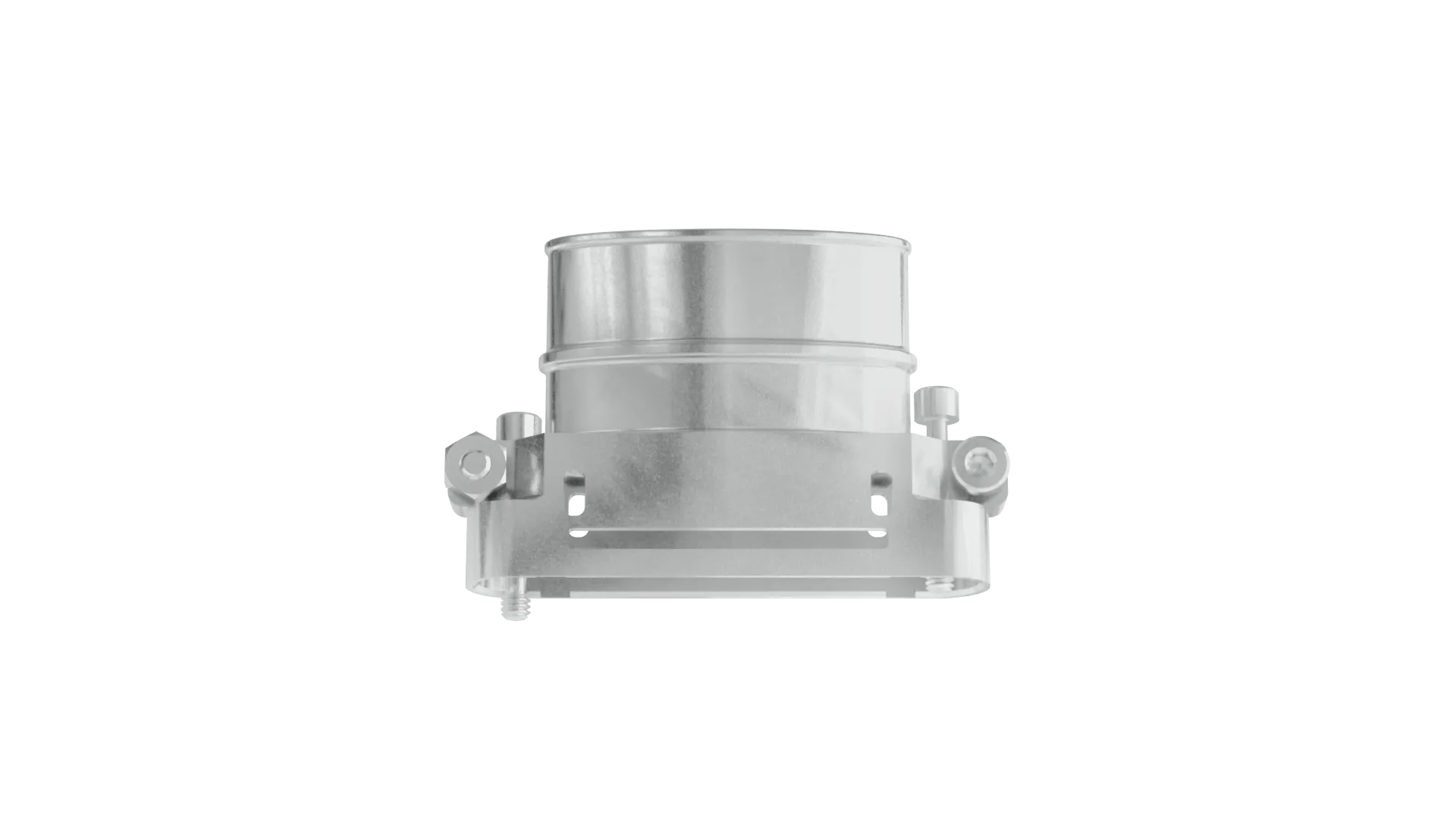

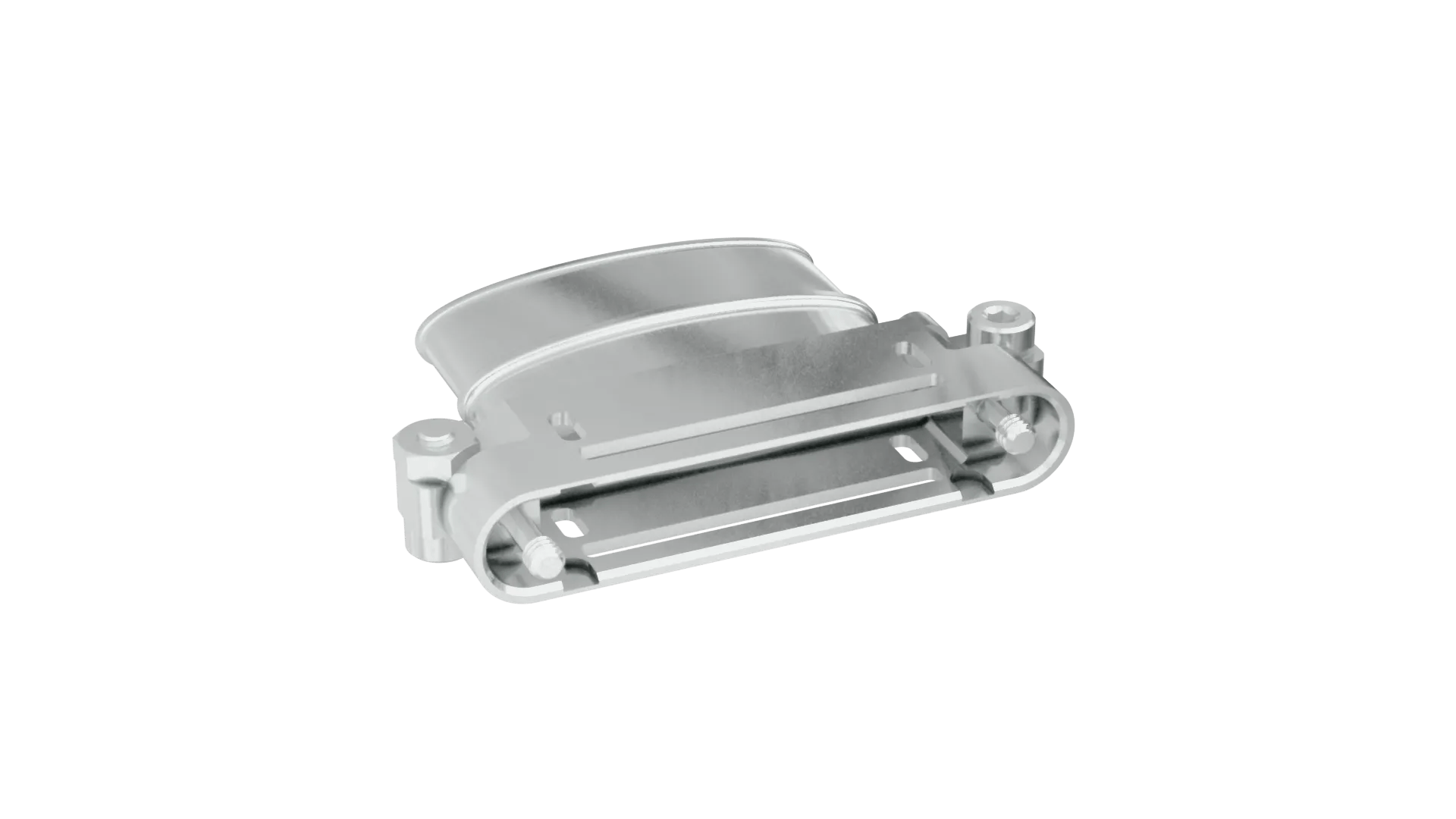

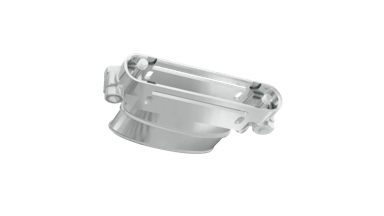

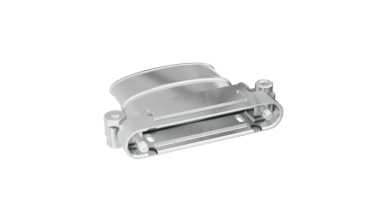

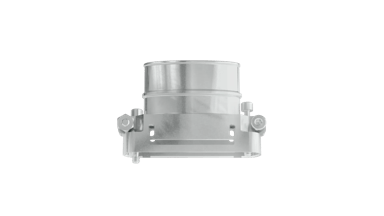

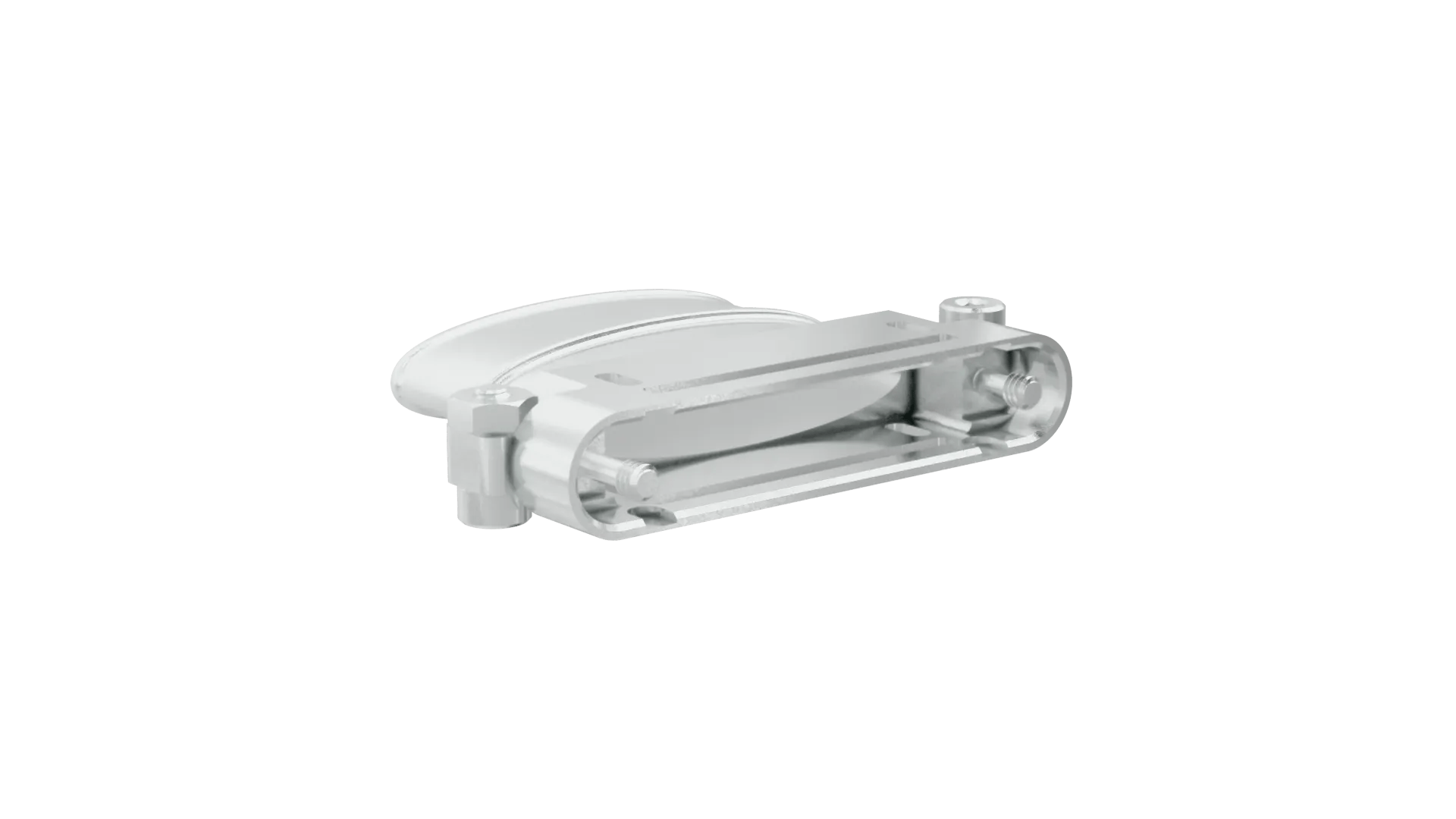

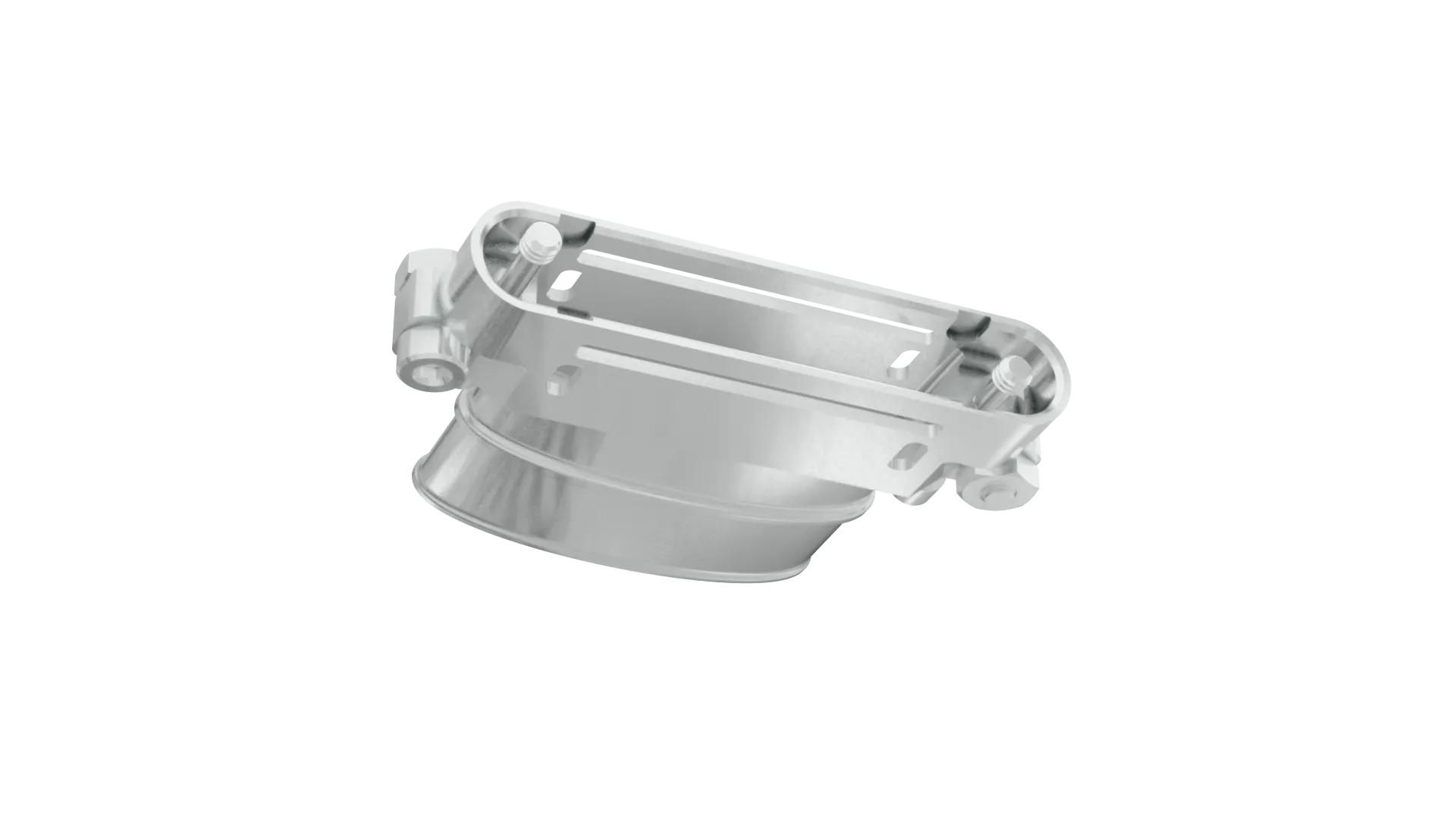

17+17 Pos. Cable Metal Backshell for Gecko-SL, Screw-Lok


1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Metal Backshell kit for cable connectors - includes 2 metal hood halves, extended fixing screw-loks with hex socket heads and short screws & nuts for joining the halves. For spare extended hood screw-loks, order G125-4440000.

  • Use with female crimp housing G125-224349600 (34 contact) for standard gender fixings, or male crimp housing G125-324349600 (34 contact) for reverse gender fixings. Mate-before-Lock.

  • Can be fitted after cable assembly construction. Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Change Notifications

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Floating Screw-Lok with Hex Socket Head (Standard Gender or Reverse Fix)

  • Number of Rows:

    2

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    34

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Cuttable:

    No

Materials

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Nickel

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    6.879g

  • Dimensions:

    36.80 x 5.70 x 23.80

  • Thread Size:

    M2

Downloads

    Product Change Notifications

  • Product Change Notification 30-Jul-2020 - Gecko-SL Cable Backshells

  • Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties

  • Product Information

  • IS-45 - Gecko-SL Metal Backshells G125-964 Instruction Sheet

  • Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Product Training Module - Panel Mount with Gecko-SL

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Technical Documentation

  • Technical Drawing / Datasheet - G125-964XXF1.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - G125-96434F1

  • Material composition for G125-964XXF1 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)

  • Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
