EMC Shielding

Board Level Shielding (BLS), innovative designs for easy assembly

Harwin’s range of EMC Board Level Shielding products are innovative designs for easy assembly. With SMT clips and separate cans, secondary soldering operations are eliminated, and rework access is simple.

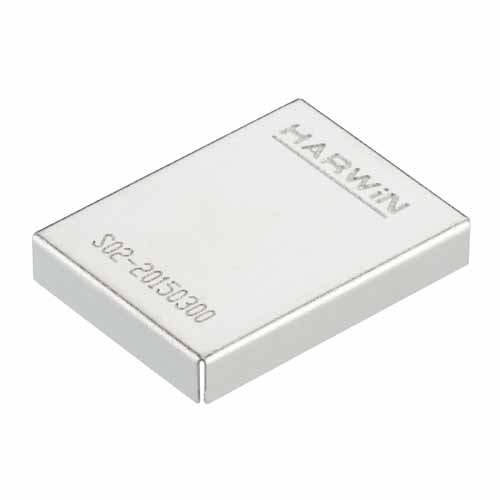

EMC Shield Cans

Harwin specialize in Nickel Silver cans in a simple 5-sided shape. Designed for use with Harwin’s SMT Shield Can Clips, no soldering is required on the can for easy fitting.

  • Eliminates hot spots due to hand or selective soldering as a second operation. Cans are assembled with a simple push operation.
  • Simple to rework – just pull the can out the clips to access the board underneath. Replace the can just as easily once finished.
  • Single-piece construction saves costs over complex fence-and-lid cans.
  • Harwin can also offer custom shield cans in basic square or rectangular single-piece shapes, supplied in Tape & Reel for convenience and protection. Contact our Experts for assistance.

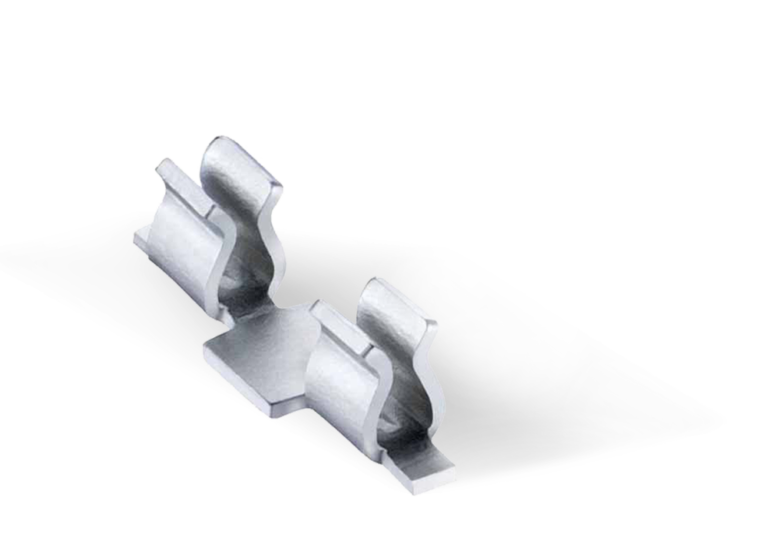

SMT Shield Can Clips

Harwin’s wide range of Shield Can clips are all Surface Mount, supplied in Tape and Reel packaging for automated assembly placement.

  • Clips are assembled at the same time as all other SMT components on the board – eliminates secondary soldering operations.
  • Wide range of shapes to cover shield thicknesses from 1mm down to 0.13mm.
  • Low profile options for minimal height cans, small footprint options for reduced space and extra-small cans.
  • Variety of insertion force, including vibration-tested versions.
  • Improves signal integrity by eliminating through-holes that interfere with the ground plane.

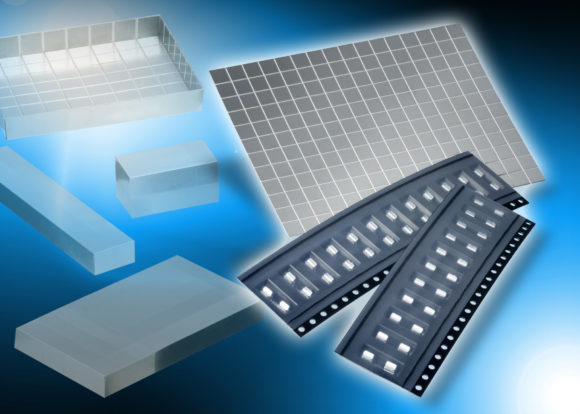

Shield Can Kit

Everything you need to make your own customized size of shield can! Award-winning kit includes two pre-scored sheets, 24 Shield Can Clips and an instruction sheet. Just add a ruler and a pair of scissors.

  • Scored at 5mm intervals – simply cut the blank along the scores, then fold the 4 edges down.
  • Ultimate flexibility for developers – try out different sizes for prototyping and development work.

Technical Details

EMC Shield Cans

Material

Nickel Silver, unplated

Shield Thicknesses

0.15mm, 0.2mm or 0.3mm (3 sizes in each)

Shield Heights

2.5mm, 3mm or 5mm

Design

5-sided box

SMT Shield Can Clips

Material

Beryllium Copper, Titanium Copper or Cupro-Nickel Alloy – Tin (over Nickel) finish

Shield Thicknesses

For various sizes between 0.13mm to 1.00mm

Height, Length

See individual product

Retention Force

See individual product

Shield Can Kit

Material

Nickel Silver, unplated

Shield Blank Thickness

0.3mm

Shield Blank sizes

2 sheets at 80mm x 60mm, each pre-scored at 5mm intervals

Shield Can Clips

24 x S1711-46R

Downloads

Technical Documents

Shield Can Kit Instructions

PDF Download

Shield Clip summary chart

PDF Download

Catalog & Brochures

EMC Shielding – Product Datasheet

PDF Download

Test Reports

Test Report HT026 – Shield Clips S1411, S1711, S1721 Environmental (Vibration, Shock, Bump)

PDF Download

Test Report HT066 – Shield Clips S0911, S0921 – General

PDF Download

HT089 – 0.5mm Shield Clip Testing

PDF Download

Product Training

Shield Clips and Cans

PDF Download

Browse the Range

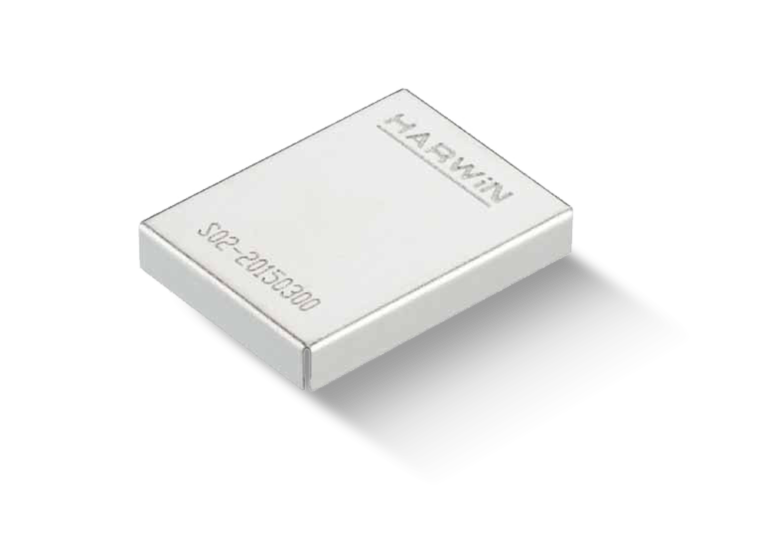

RFI Shield Cans

Nickel Silver cans in a simple 5-sided shape. Designed for use with Harwin’s Shield Can Clips for board-level shielding, no…

View all

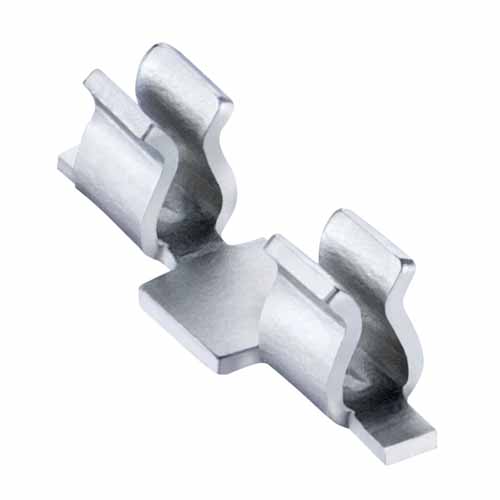

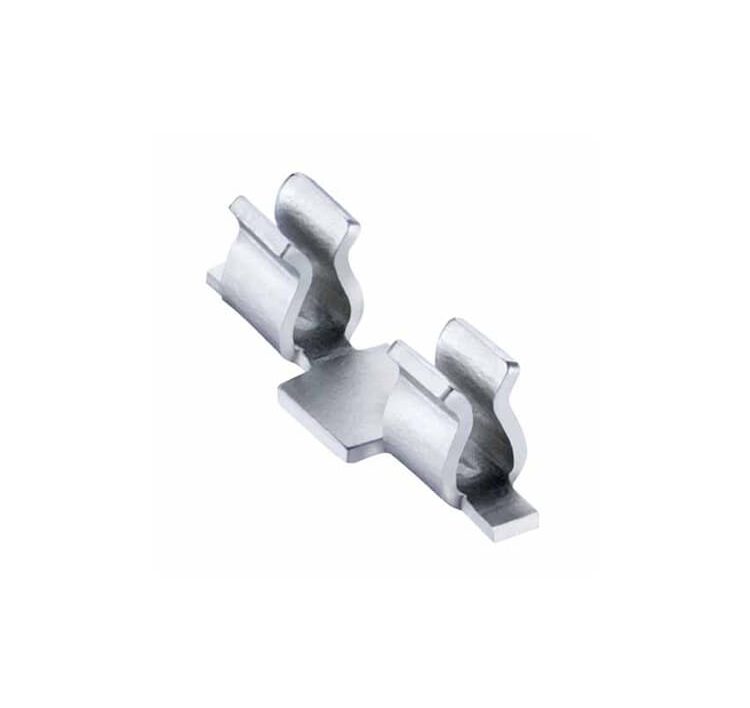

SMT RFI Shield Clips

Surface Mount, supplied in Tape and Reel packaging for automated assembly placement. Use with 5-sided cans for fast effortless Board…

View all

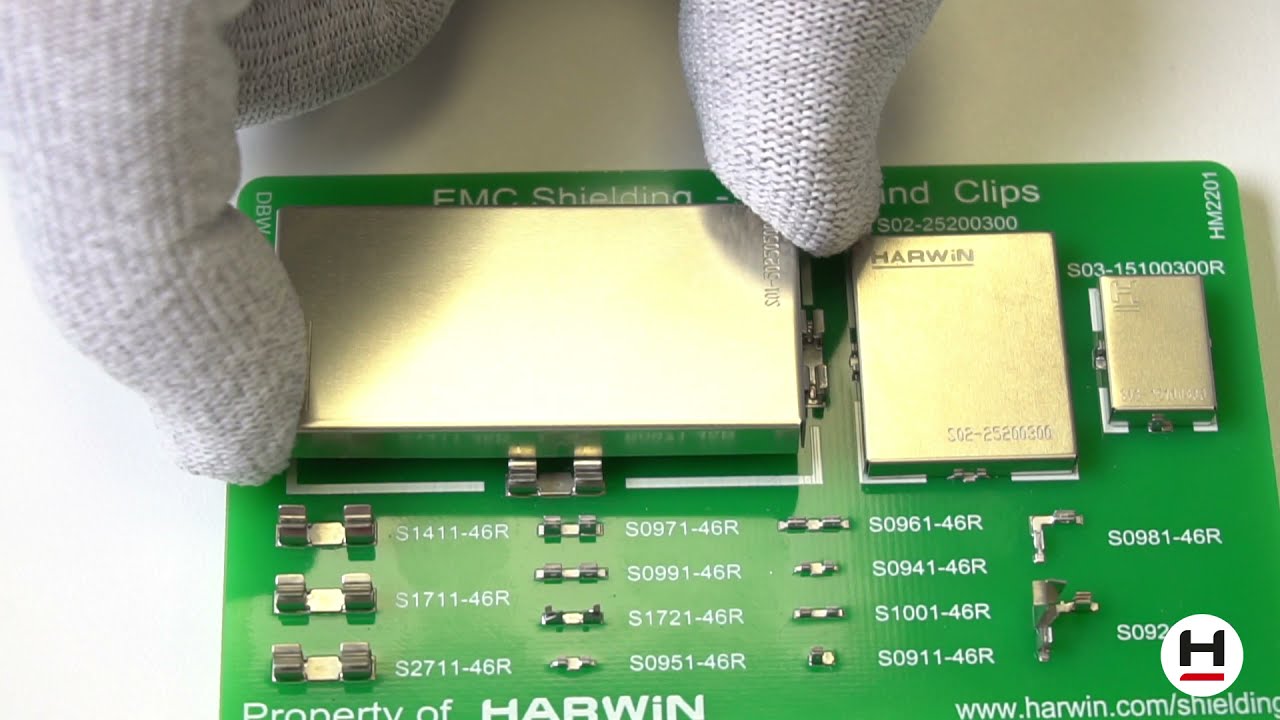

Youtube video for
