Datamate Mix-Tek Connectors

2.00mm & 4.00mm Pitch High-Reliability Connectors

Harwin’s Datamate (M80 series) connectors provide an extremely flexible interconnect solution, ideally suited for a wide variety of testing environments and conditions. Connectors are available in configurations of single row power or coax contacts with double row signal contacts in one connector. Vibration and shock resistant, ultimately flexible.

About Datamate Mix-Tek

  • 3A per signal contact (all electrically loaded; 3.3A per individual contact) at 2mm pitch
  • Proven 4-finger contact design to maintain electrical contact through high vibration and shock
  • Beryllium Copper contact for improved temperature range: -55°C to +125°C (testing in progress to confirm higher)
  • Multiple power level contacts – from 5A up to 40A per contact
  • Coax contacts capable of 6GHz / 50Ohm
  • Power and Coax contacts on 4mm pitch, single row
  • 500 Mating cycles durability
  • World-class quality from the Original Designers of Datamate – published test reports and proven track record
  • Popular products available from stock, stock availability visible online

Heart of the Connector

The compact design of a 2mm pitch connector (for signal), the global availability of a product range stocked in depth, the established high-reliability of a COTS connector system. Datamate has become the connector range of choice in many demanding applications on land, sea and air.

With the addition of power or coax contacts within the one connector, Datamate Mix-Tek brings the ultimate flexibility and space-saving capabilities to this high-reliability connector system.

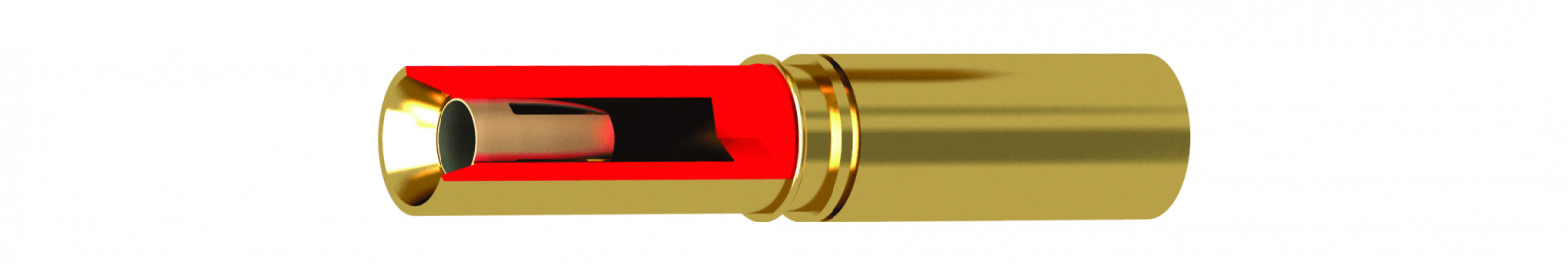

Cutaway of Datamate crimp contact, showing 4-finger Beryllium Copper contact inside

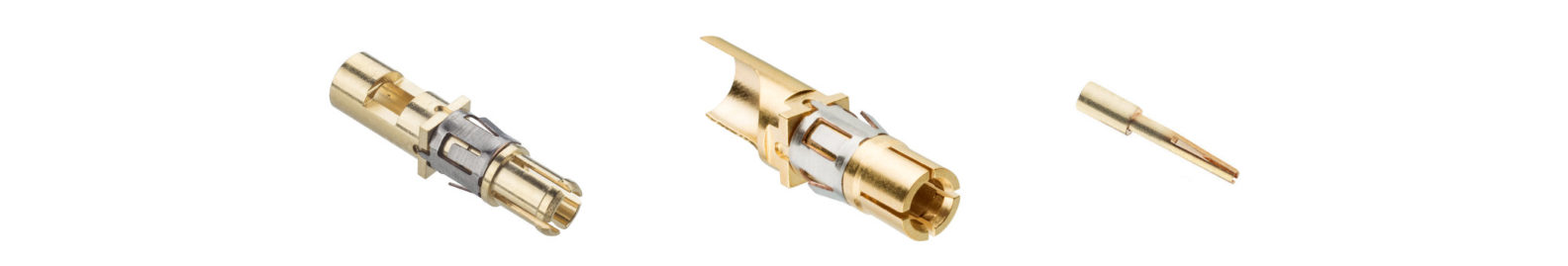

5 to 20A power contact design, 40A power contact design and inner contact of coax contact

Datamate is a focus product for Harwin, and is undergoing an active development program. The Cable Assembly Service is available for this range as a value-added service – contact us for more information.

Product Styles

Mixed connectors combining 2mm pitch signal contacts with a choice of 6GHz / 50Ohm coax contacts, 20A power contacts or 40A power contacts.

  • Wide choice of Jackscrew fixings – none fitted, standard gender (floating jackscrew is on female connector), reverse fix (floating jackscrew is on male connector), guide pins, panel or board mount, and Datamate 101Lok (quarter-turn bayonet fixings for fast mating and unmating).

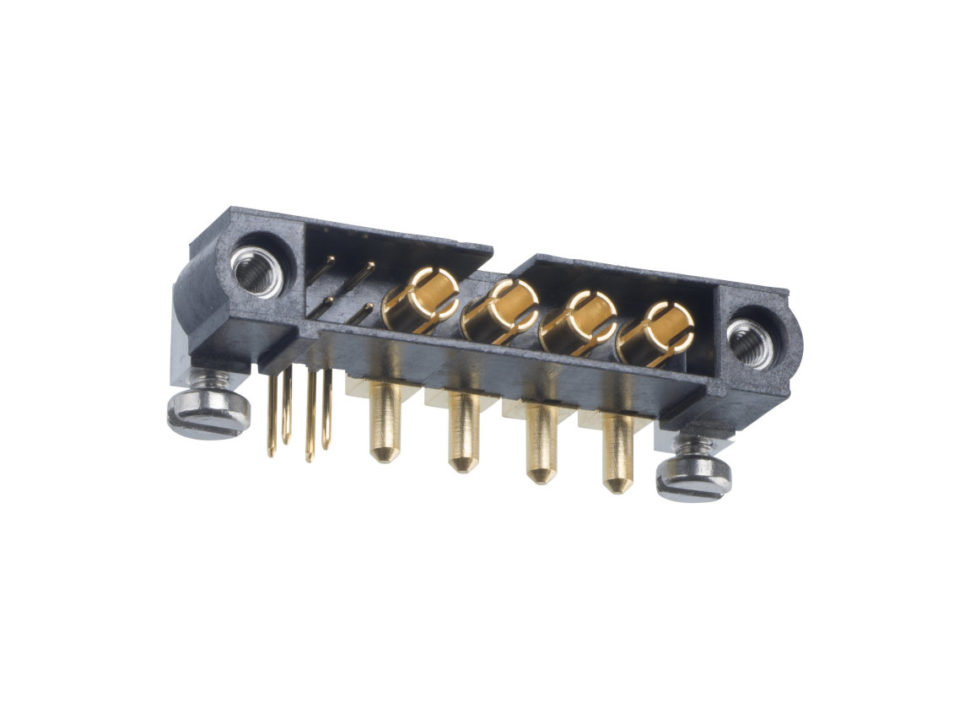

  • Male connectors in vertical or horizontal orientation on the PCB, or cable connection. Female connectors in vertical orientation on the PCB, or cable connection.
  • Stocked designs include power & signal combinations with female cable and male PCB styles. For standard items included in the Datamate Mix-Tek range, please consult the Datamate section of the catalog.
  • Cable size for power contacts will dictate the possible current handling. The connection area for the 20A contact design remains the same, but Harwin recommend choosing the 12AWG contact to achieve this current/power. Contacts for smaller wires are rated for lower currents due to the wire size: 14AWG for 15A, 16AWG for 10A, 18AWG for 8A and 20AWG for 5A.

For signal contacts only, see Datamate. For power or coax contacts only, see Datamate Power & Coax.

Technical Details

Materials

Female Contacts – Signal

High performance Beryllium Copper inner contact with Gold finish; Brass outer shell with Gold or Tin (over Nickel) finish

Female Contacts – 5 to 20A

Brass with Gold finish

Female Contacts – 40A

High performance Beryllium Copper with Gold finish

Female Contacts – Coax

High performance Beryllium Copper inner contact with Gold finish; Brass outer shell with Gold finish

Male Contacts – Signal

Copper Alloy, Gold finish on contact area, Gold or Tin (over Nickel) finish on termination

Male Contacts – 5 to 20A, 40A

High performance Beryllium Copper with Gold finish

Male Contacts – Coax

Phosphor Bronze inner contact with Gold finish; Brass outer shell with Gold finish

Housing

30% Glass-Filled High Temperature Plastic, rated to UL94V-0

Jackscrews

Stainless Steel

Electrical

Current – Signal

3.3A max individual, 3.0A max simultaneous

Current – Power

20A max standard power contact or 40A max high power contact

Coax

6GHz frequency range, 50Ohm impedance (depending on cable)

Working Voltage

800V DC or AC peak (360V DC or AC peak at 30,000ft / 9km / 300mbar), 180V AC for Coax

Maximum Voltage

1,200V DC or AC peak, 1,000V ACrms for Coax

Contact Resistance

25mΩ max

Insulation Resistance

100MΩ min

Environmental

Operating Temperature

-55°C to +125°C

Humidity Classification

56 days at 95% RH

Vibration (with jackscrews)

10-2,000Hz, 0.75mm, 98m/s² (10G), 6 hours total

Shock (with jackscrews)

981m/s² (100G) for 6ms

Outgassing

VOC <0.95µg/g, Fog <0.95µg/g (to VDA 278 / PB VWL 709); 0.05% TML, 0.00% CVCM (NASA data) – please check the Outgassing page

Mechanical

Durability (contacts)

500 mating cycles

Insertion force (per contact)

2N max (signal), 8N max (20A & coax), 15N max (40A)

Withdrawal Force (per contact)

0.2N min (signal), 0.5N min (power & coax)

Downloads

Technical Documents

Component Specification (including pin numbering system)

PDF Download

Catalog & Brochures

Datamate Mix-Tek – Product Datasheet

PDF Download

Test Reports

Test Report HT001 – Datamate Mechanical Endurance – number of cycles, up to 10,000

PDF Download

Test Report HT002 – Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF Download

Test Report HT004 – Datamate J-Tek Environmental – Vibration, Shock, Bump, Acceleration and other tests

PDF Download

Test Report HT005 – Datamate Female Crimp Retention and Integrity (Pull-Off Force)

PDF Download

Test Report HT006 – Datamate Male Crimp Retention and Integrity (Pull-Off Force)

PDF Download

Test Report HT015 – Datamate Environmental (Vibration, Shock, Bump) – J-Tek and 101Lok

PDF Download

Test Report HT016 – Datamate Female Crimp detailed Mechanical Forces and Contact Resistance

PDF Download

Test Report HT017 – Datamate Contact Resistance after 3 and 15 years Artificial Aging

PDF Download

Test Report HT019 – Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

PDF Download

Test Report HT020 – Datamate Mix-Tek Special Contacts – Environmental, Mechanical and Electrical

PDF Download

Test Report HT025 – Datamate Environmental – Detailed Vibration, Shock and Bump

PDF Download

Test Report HT035 – Datamate Mix-Tek Power Connectors – Mechanical and Electrical

PDF Download

Test Report HT040 – Datamate High Power Contacts – Mechanical and Electrical

PDF Download

Test Report HT052 – Datamate Coax M80-307 & M80-317 contacts – RF Test

PDF Download

Test Report HT078 – Datamate Mix-Tek 20A Power testing

PDF Download

Test Report HT081 – Datamate Coax M80-310 Semi-Rigid Signal Integrity

PDF Download

Product Training

Datamate Overview

PDF Download

Datamate Coax

PDF Download

Metal Backshells

PDF Download

Guide to Latches, Jackscrews, 101Lok

PDF Download

List of Jackscrews

PDF Download

Datamate Mix-Tek Housings

PDF Download

Panel Mount with Datamate

PDF Download

Browse the Range

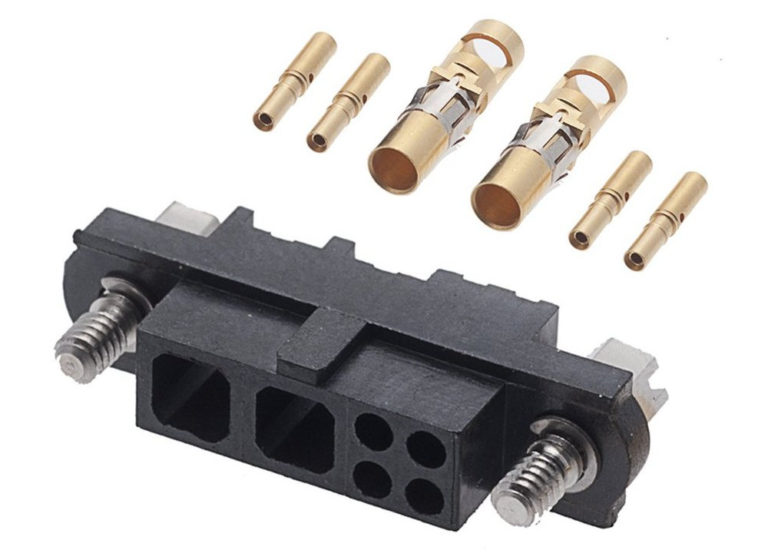

Datamate Mix-Tek
Cable Connector Parts & Kits

Cable housings and contacts, and complete kits of housings & contacts. Pre-wired contacts available for prototyping and full production. See…

View all

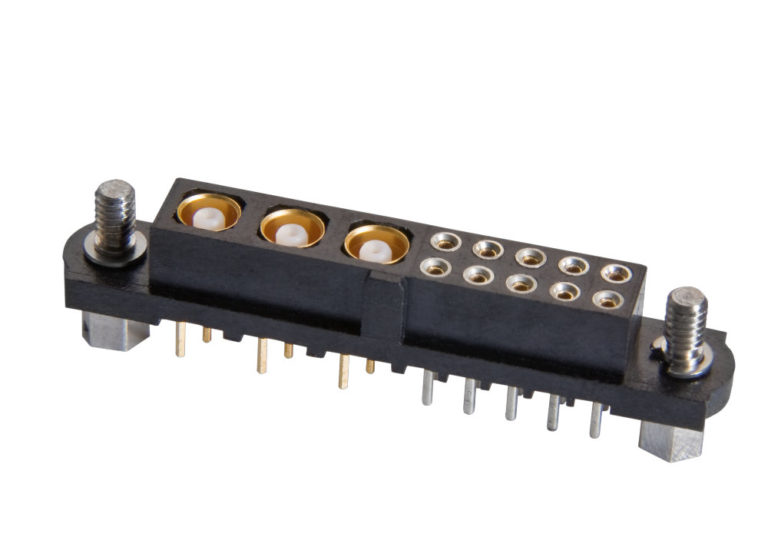

Datamate Mix-Tek
PCB Connectors

Board-mounted connectors in mixed technology format. Low profile, with a variety of jackscrew options.

View all

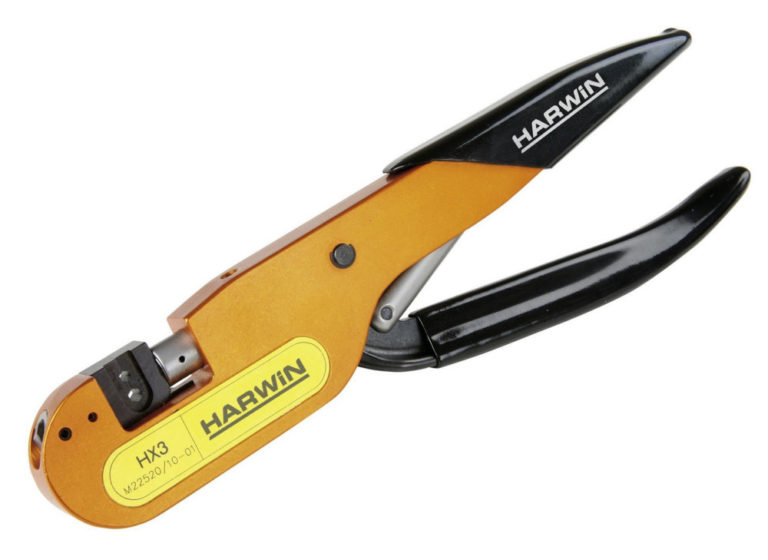

Datamate Mix-Tek
Tooling & Accessories

Associated products and tooling hardware for the Datamate Mix-Tek range.

View all
