ZA1-920
Image may be representative. Refer to the product title for more information.

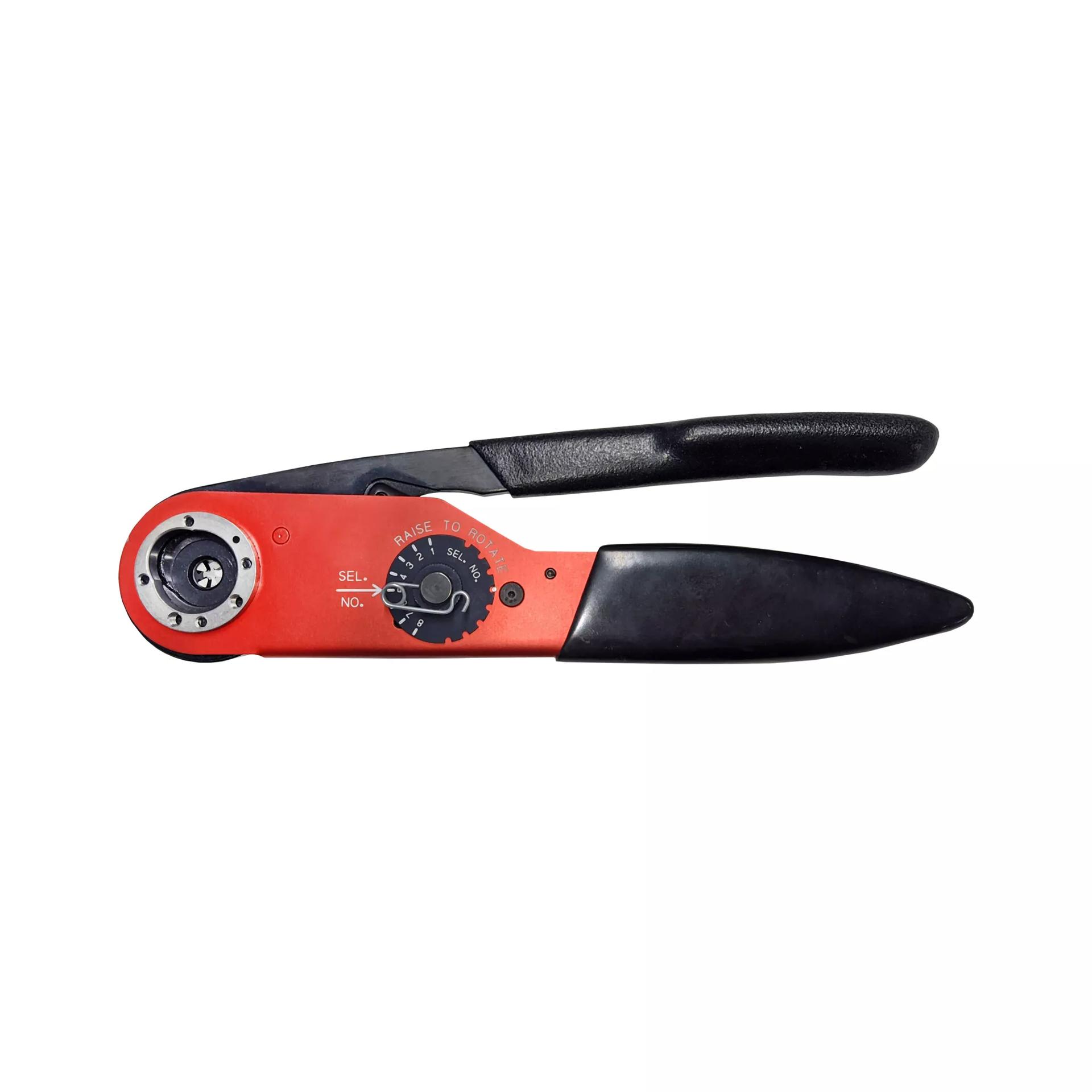

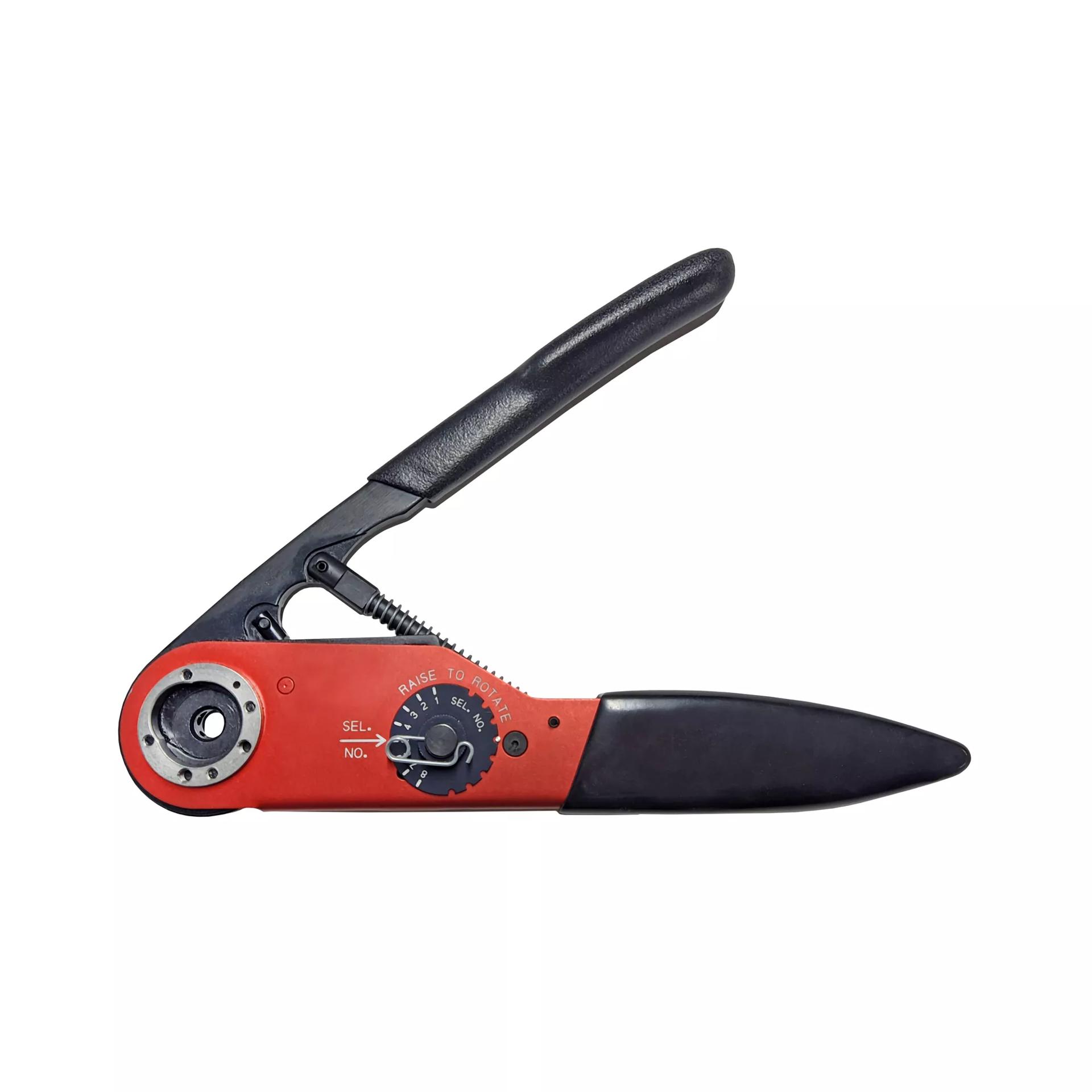

8.50mm Pitch High-Reliability Connector - Kona
For crimping Kona Female power contacts KA1-0450005 to applicable cables.
Use with Positioner ZA1-921.
See instruction sheet IS-49 for advice on use.
