Z9028-00

Z9028-00

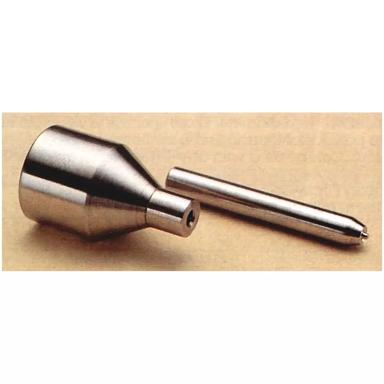

Punch and Die Tool Set

EZi

Traceparts account required

Z9028-00

Punch and Die Tool Set


Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • For correct swaging of Terminal H9028-01.

  • Use with a suitable bench press. See instruction sheet IS-35 for advice on use.

  • Swage is for mechanical strength - terminal should also be soldered to PCB for electrical connection.
