Z80-299

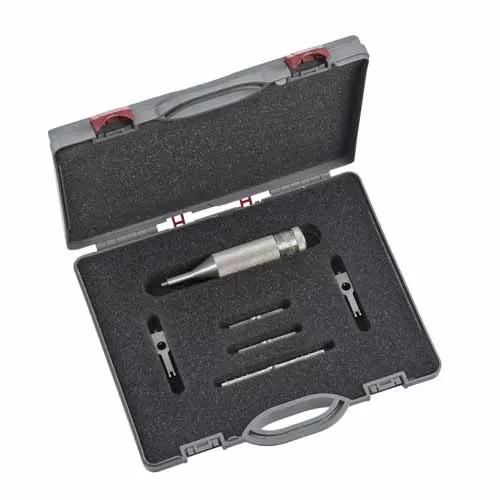

Separator Tool for Datamate L-Tek

2.00mm Pitch High-Reliability Connector - Datamate L-Tek Tooling

  • To enable separation of mated Datamate L-Tek connectors with locking latches.
  • Replacement for tool T5746.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

222g

Overall Dimensions (L x W x D) in mm:

172.00 x 154.00 x 31.80

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status3
Mouser Electronics Inc
Global
Status21
TTI Inc
USA
Status1

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - Z80-299.pdf

TEST REPORTS

PDF

Test Report HT044 - Datamate L-Tek Locking Latch number of operations with applicable hand tools

ENVIRONMENTAL COMPLIANCE

PDF

Not applicable to RoHS (2015/863/EU)

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

INSTRUCTION SHEETS

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-30 - Z80-299 Datamate Separator Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Datamate Tooling
