Active

Z80-298

Screwdriver

Tooling

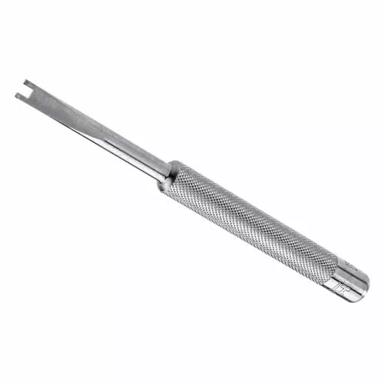

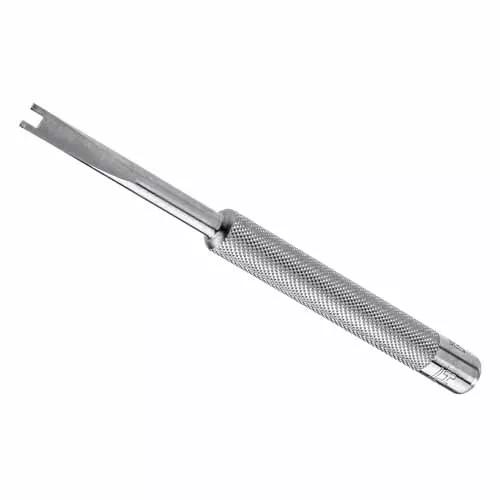

Screwdriver for Round Slotted Jackscrew M2 nut M80-2130000B used on Datamate J-Tek & Mix-Tek, and G125-4510000B used on Gecko-SL & MT.
Enables the nut to be screwed onto the stud, without fouling against the end of the stud.

Availability

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Packaging Style:

Single Pack

Individual Part Weight:

27.556g

Overall Dimensions (L x W x D) in mm:

100.00 x Ø8.00

Availability

9,006 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Iconnexion Asia Pte Ltd

Location Asia

Quantity (Updated Daily) 9000

Buy now

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 5

Buy now

Distributor Digi-Key

Location Global

Quantity (Updated Daily) 1

Buy now

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - Z80-298.pdf

PDF

Not applicable to RoHS (2015/863/EU)

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

Catalog page - Gecko Tooling

PDF

Catalog page - Datamate Tooling

Want to talk to someone?

If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.
