Z80-193
Image may be representative. Refer to the product title for more information.
2.00mm Pitch High-Reliability Connector - Datamate

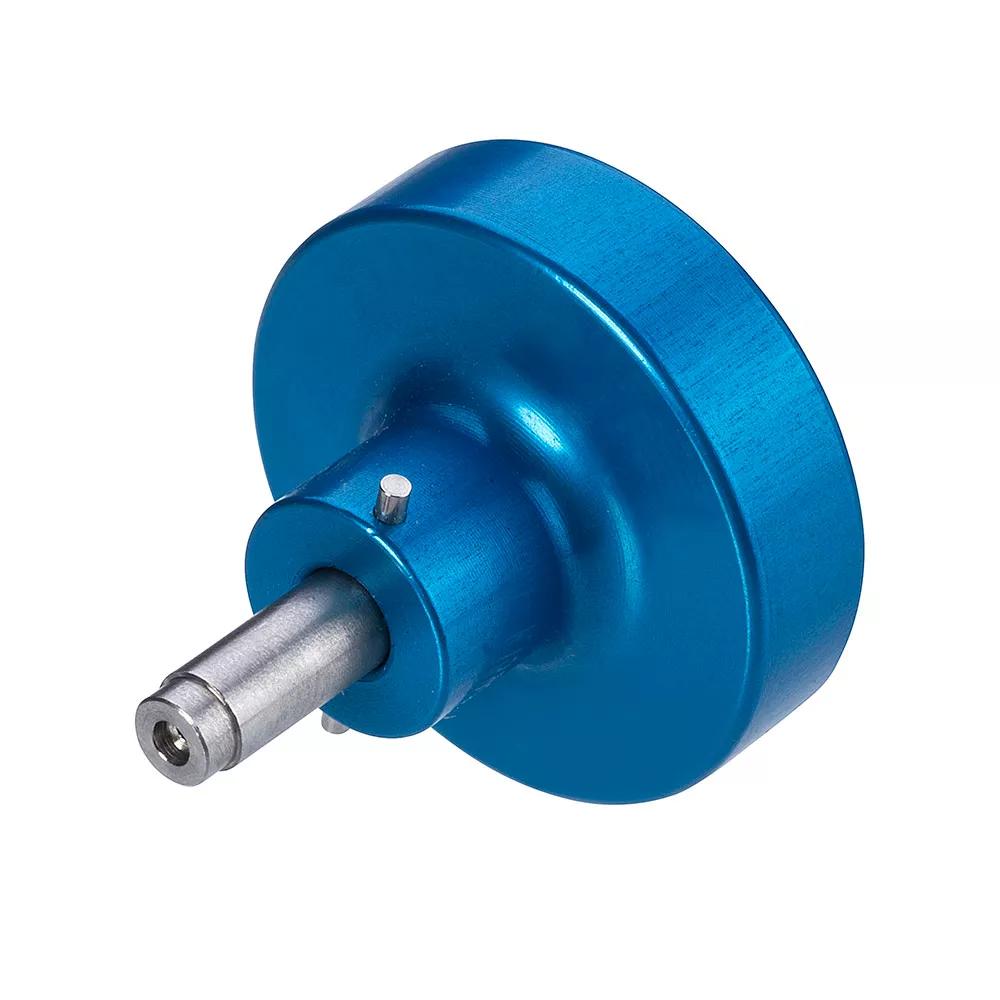

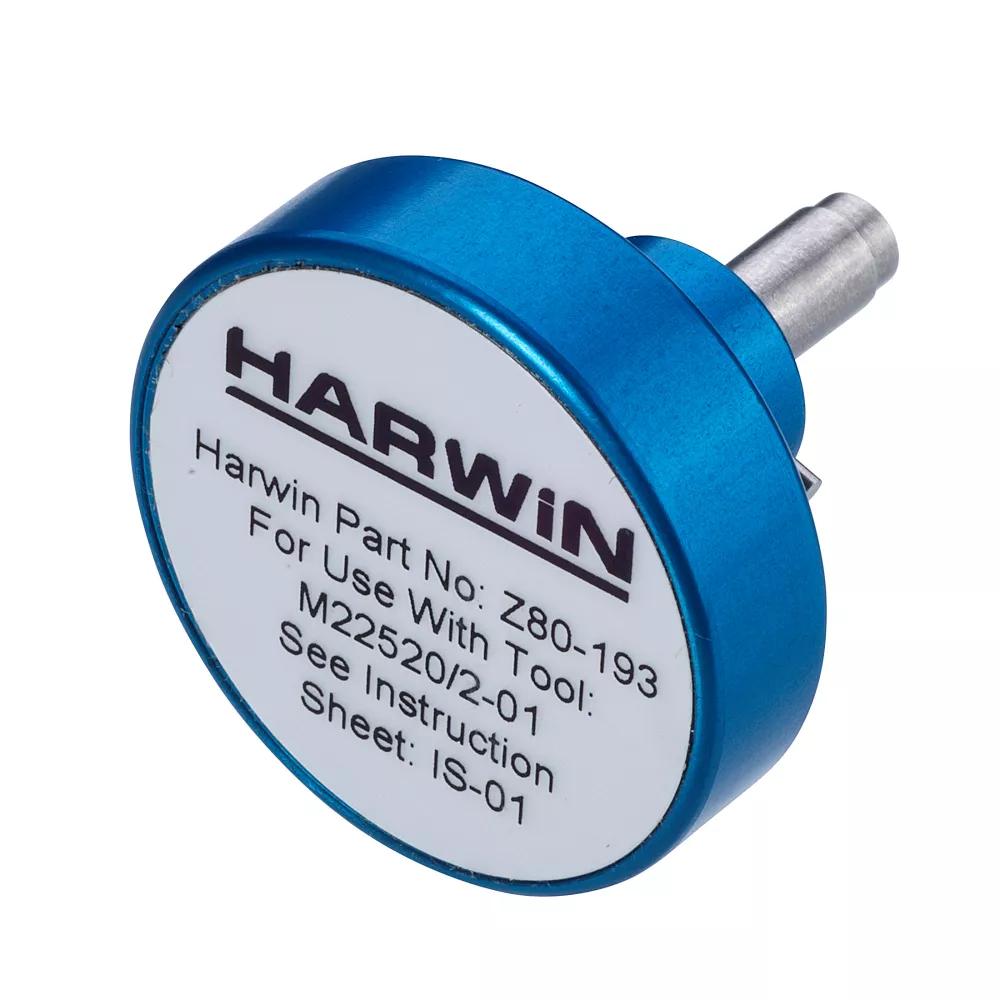

For crimping Datamate signal contacts to applicable cables. Suitable for Datamate J-Tek and Mix-Tek male plug contacts M80-1940005 and M80-1950005.
Use with Hand Crimp Tool M22520/2-01.
See instruction sheet IS-01 and the Datamate instruction video for additional help.
