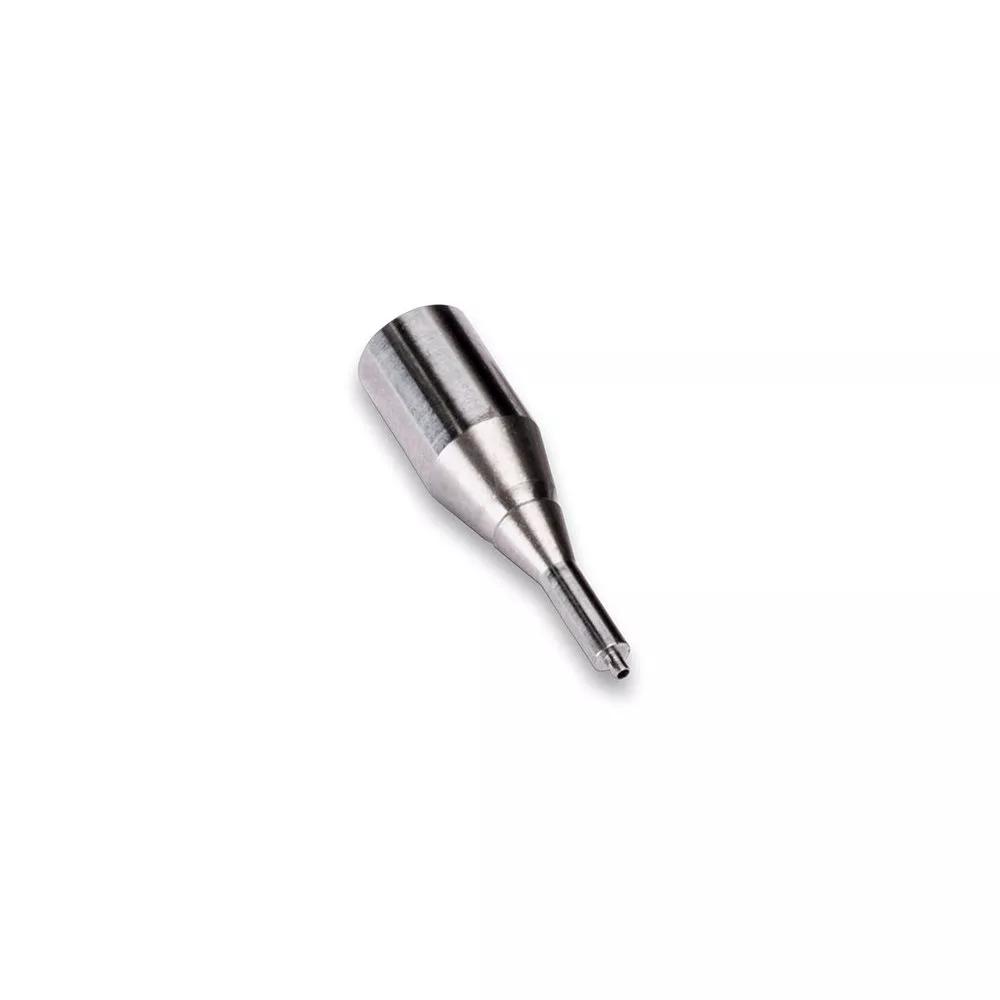

Z80-044G

Spare Extraction Tool Tip for Z80-280 Tool

2.00mm Pitch High-Reliability Connector - Datamate Tooling

  • Spare tool tip for extracting male Datamate J-Tek and Mix-Tek signal contacts from housings.
  • Replacement tip for Z80-280 Datamate signal contact insertion/extraction tool.
  • Use with Datamate J-Tek and Mix-Tek Male signal contacts – use tip Z80-044F for Datamate L-Tek male contacts.
Availability
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

1.595g

Overall Dimensions (L x W x D) in mm:

20.00 x Ø5.50

Availability

344 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 12
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 3

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 329

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - Z80-044G.pdf

ENVIRONMENTAL COMPLIANCE

PDF

Not applicable to RoHS (2015/863/EU)

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

INSTRUCTION SHEETS

PDF

IS-25 - Z80-280 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Datamate Tooling
