Z80-044E
2.00mm Pitch High-Reliability Connector - Datamate

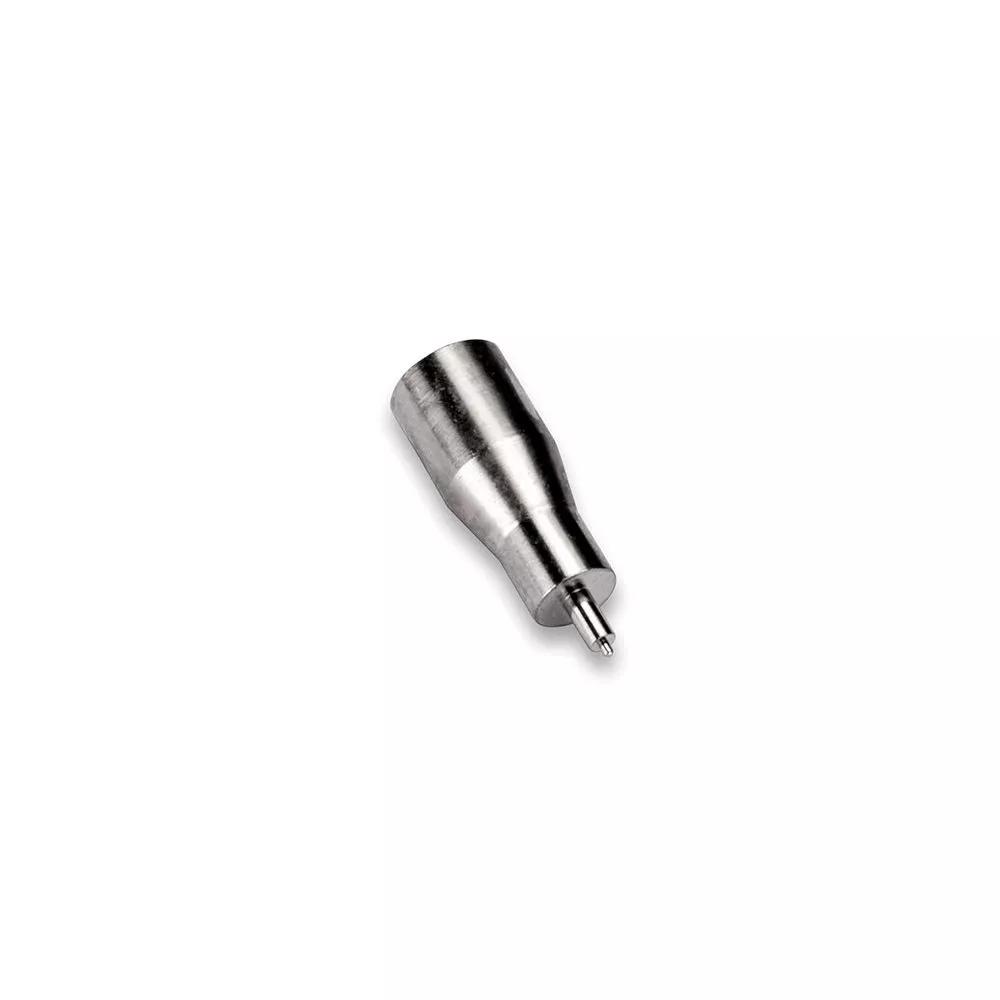

Spare tool tip for extracting female Datamate signal contacts from housings.
Replacement tip for Z80-280 Datamate signal contact insertion/extraction tool.
Use with Datamate L-Tek, J-Tek and Mix-Tek, all Female signal contacts.
View Technical Details
Checking stock availability...
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
Not applicable to RoHS (2015/863/EU)
Packaging Style:
Single Pack
Contact Pitch:
2.00mm (0.079")
Weight:
1.47g
Dimensions:
15.70 x Ø5.50
Technical Drawing / Datasheet - Z80-044E.pdf
IS-25 - Z80-280 Assembly Tool Instruction Sheet
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS - Z80-044E
Ready-made complete cable assemblies and pre-wired contacts
