Z50-030

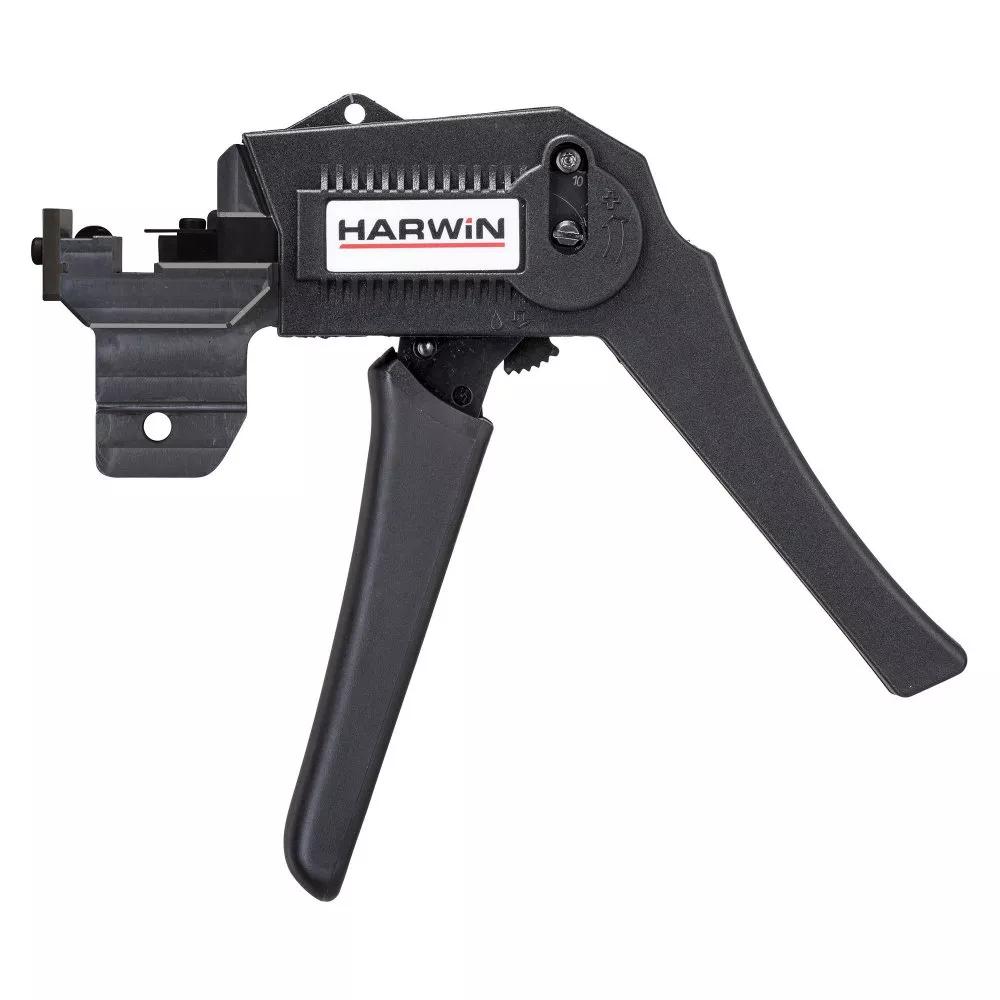

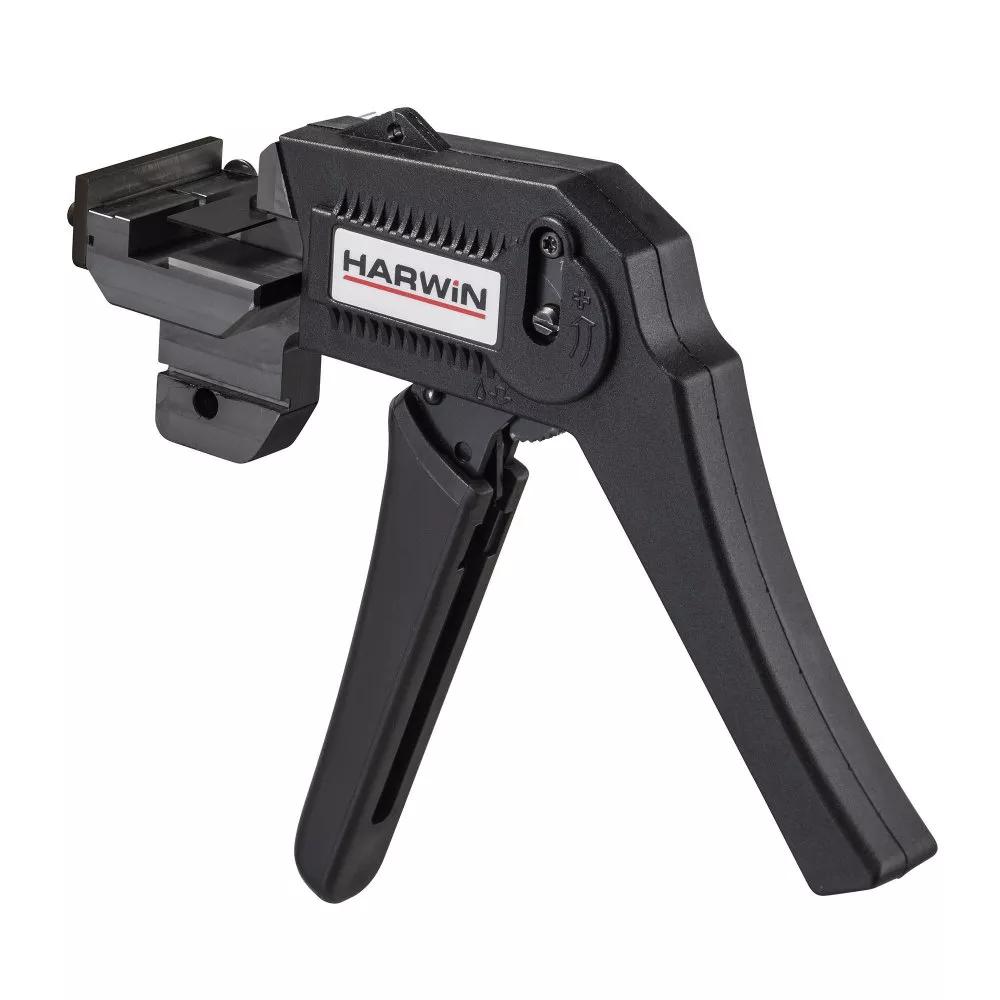

Archer M50 (1.27mm Pitch) IDC Termination Hand Tool

1.27mm (0.05") Pitch PCB Connector Tooling

Add to Favorites

Loading… Check availability

0 similar products View products

Traceparts account required

Product Description

For crimping Male 1.27mm pitch IDC connector range M50-380.

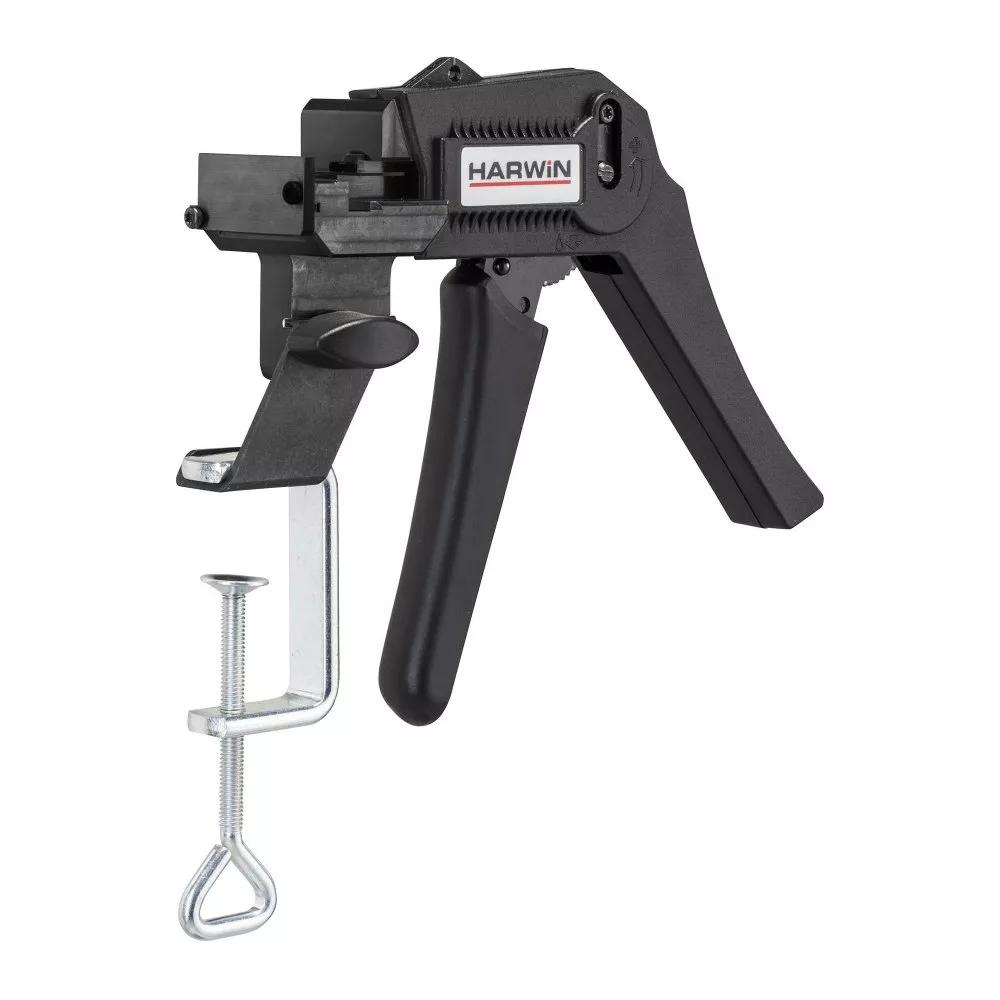

Comes with desk clamp fitting for easier operation.
Instruction sheet IS-43 available for more detailed information on using the tool.

Z50-030 - Archer M50 (1.27mm Pitch) IDC Termination Hand Tool

Traceparts account required

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Contact Pitch:

1.27mm (0.05")

Packaging Style:

Single Pack

Individual Part Weight:

623.88g

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

Not applicable to RoHS (2015/863/EU)

PDF Download
