Z50-020

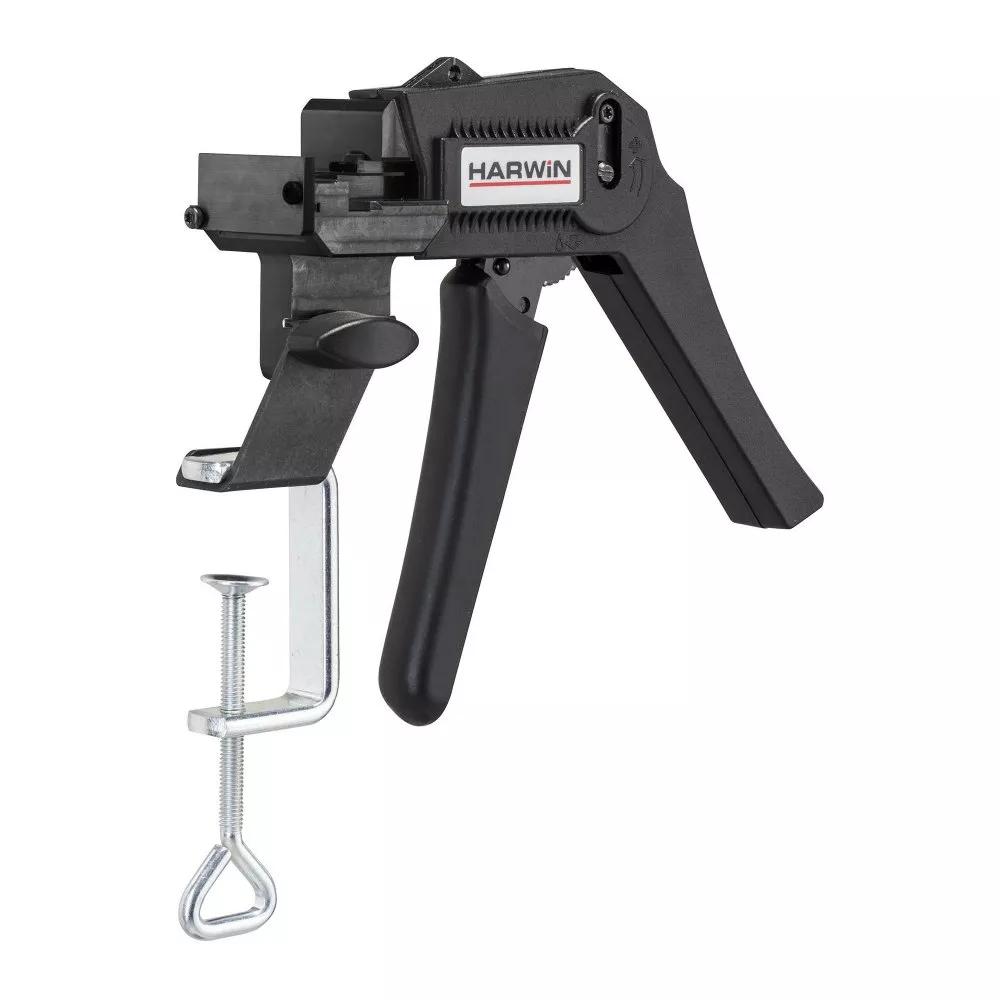

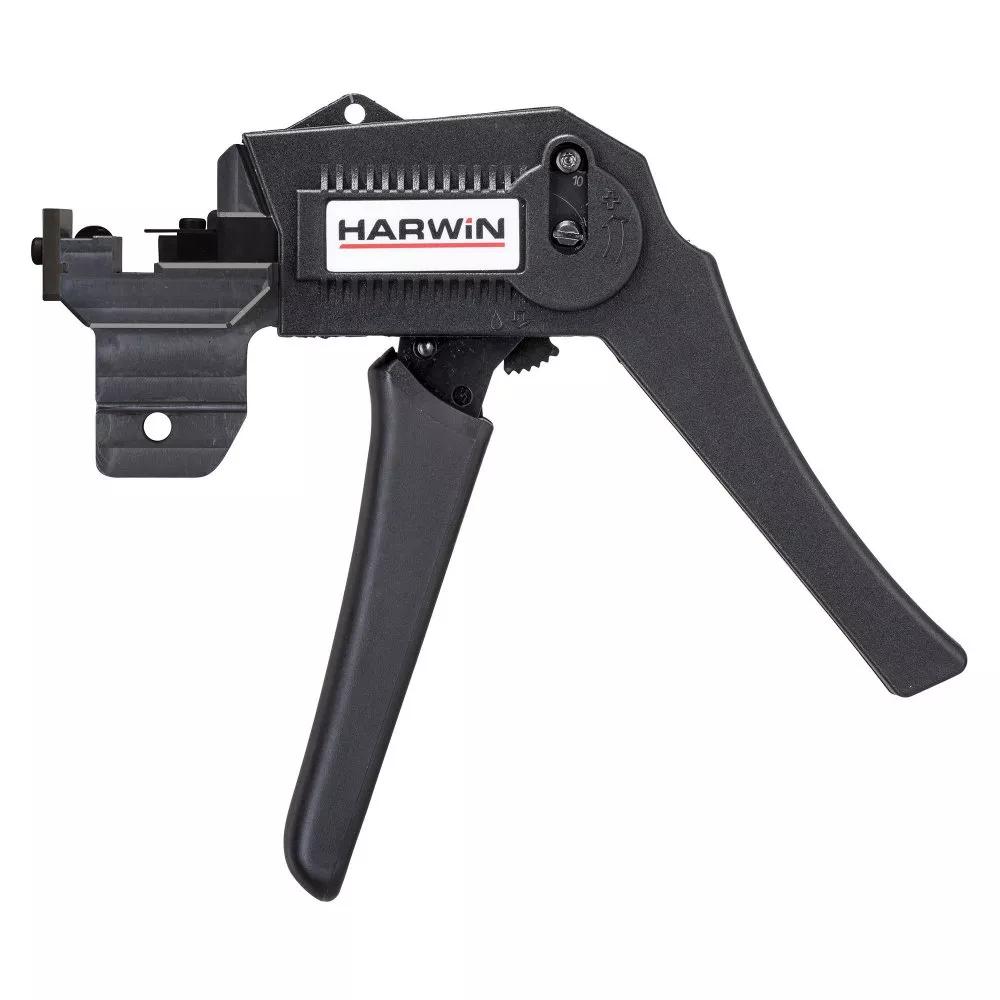

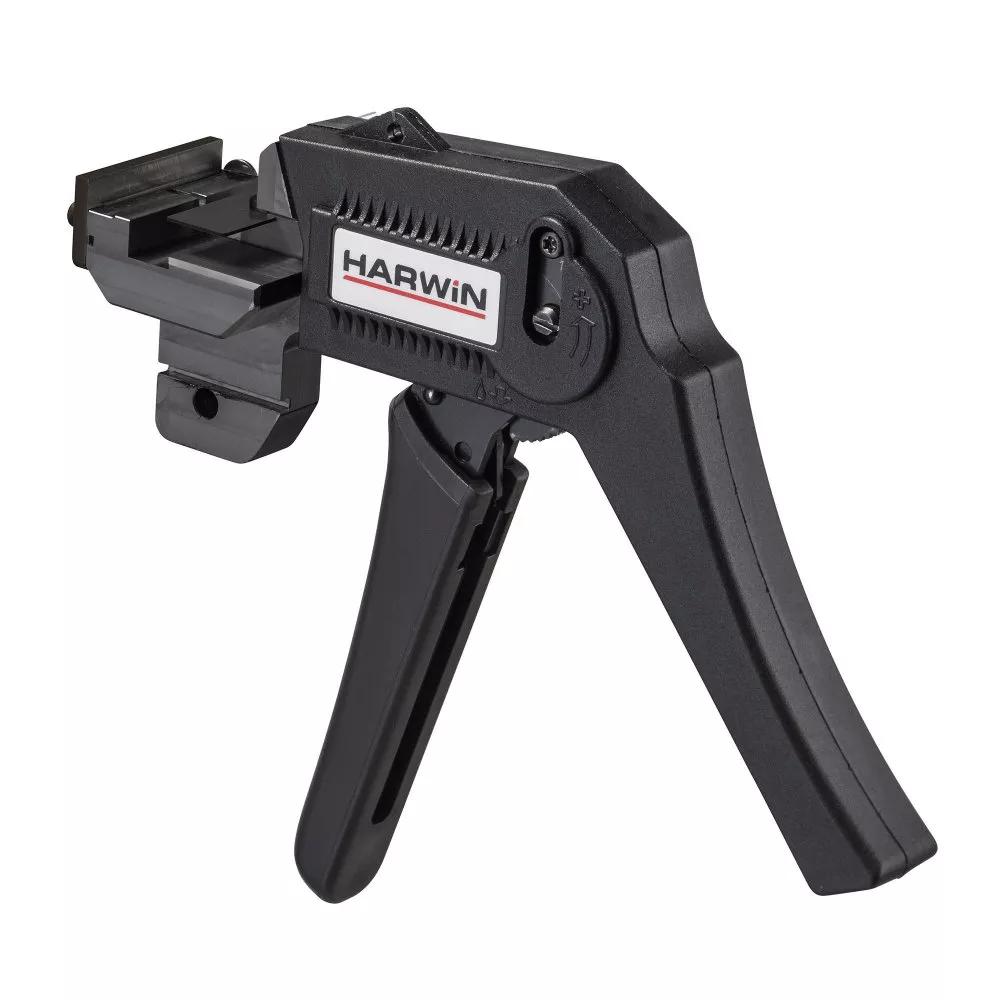

Archer M50 (1.27mm Pitch) IDC Termination Hand Tool

1.27mm (0.05") Pitch PCB Connector Tooling

  • For crimping Female 1.27mm pitch IDC connector range M50-330.
  • Comes with desk clamp fitting for easier operation.
  • Instruction sheet available for more detailed information on using the tool.
Availability
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

623.88g

Availability

12 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
