Z300-922

Z300-922

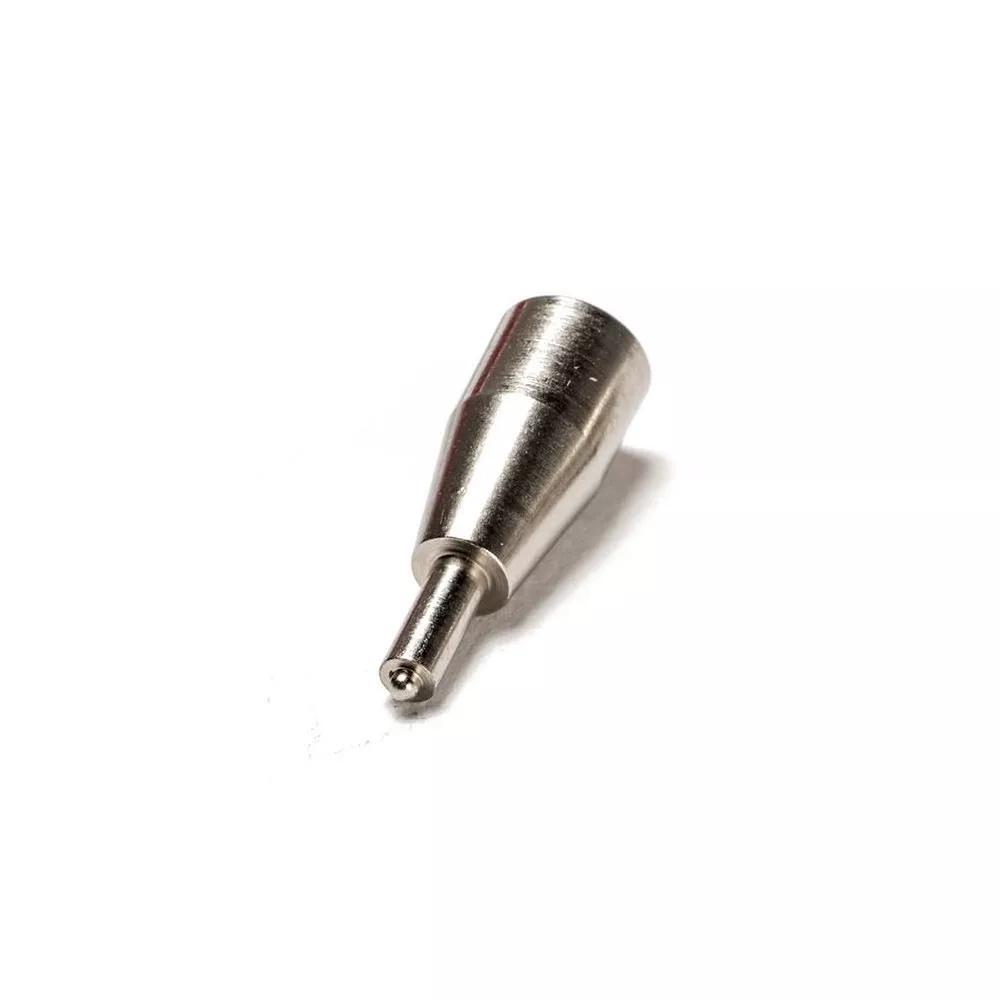

Spare Extraction Tool Tip for Z300-902 Tool

HRi

Image may be representative. Refer to the product title for more information.

Z300-922

Spare Extraction Tool Tip for Z300-902 Tool

3.00mm Pitch High-Reliability Connector - M300

  • Spare tool tip for extracting female M300 contacts from housings.

  • Replacement tip for Z300-902 M300 contact insertion/extraction tool.

  • Use with M300 female contacts.

Checking stock availability...

Technical Drawings & CADs

Jump to technical details

  • Technical Drawing

    View

  • TraceParts

    CAD/ECAD

  • TraceParts

    3D Viewer

  • SamacSys

    3D Model, PCB Symbol & Footprint

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Environmental Compliance

Technical Details

Product Characteristics

  • Country of Origin

    GB

  • RoHS Status

    Not applicable to RoHS (2015/863/EU)

Materials

  • Packaging Style

    Single Pack

Dimensions

  • Weight

    1.369g

  • Dimensions

    16.00 x Ø5.50

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - Z300-922.pdf

Product Information

  • IS-40 - Z300-902 Assembly Tool Instruction Sheet

  • Product Datasheet - M300 range (HRi)

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • RoHS Declaration - Z300-922
