Z300-902

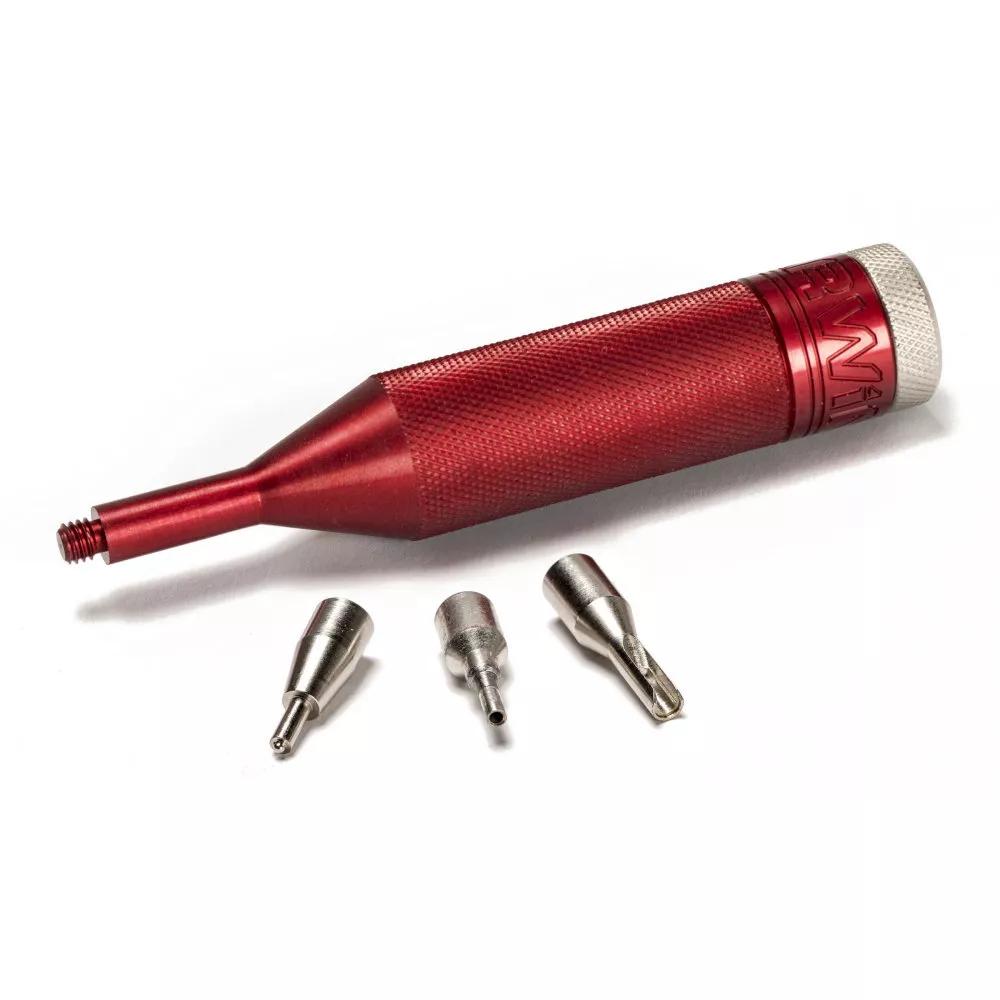

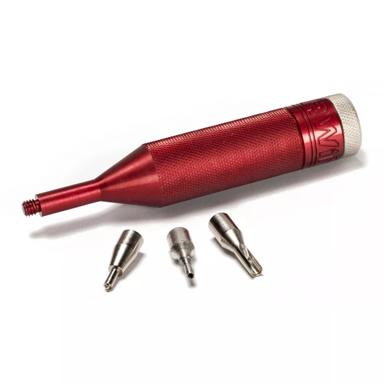

M300 Insertion/Extraction Tool

3.00mm Pitch High-Reliability Connector - M300 Tooling

Add to Favorites

In stock Check availability

3 similar products View products

Traceparts account required

Product Description

For assembling M300 series Male & Female crimp contacts into crimp housings after attaching cables.
See instruction sheet IS-40 for advice on use.
Spare tips also available separately: Z300-920 insertion tip, Z300-922 female contact extraction tip and Z300-923 male contact extraction tip.

Z300-902 - M300 Insertion/Extraction Tool

Traceparts account required

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Contact Pitch:

3.00mm (0.118")

Packaging Style:

Single Pack

Individual Part Weight:

32.6g

Overall Dimensions (L x W x D) in mm:

83.70 x Ø16.00
