Z2176-00
Hardware - Terminal Pin, Terminal Lug, Turret Lug

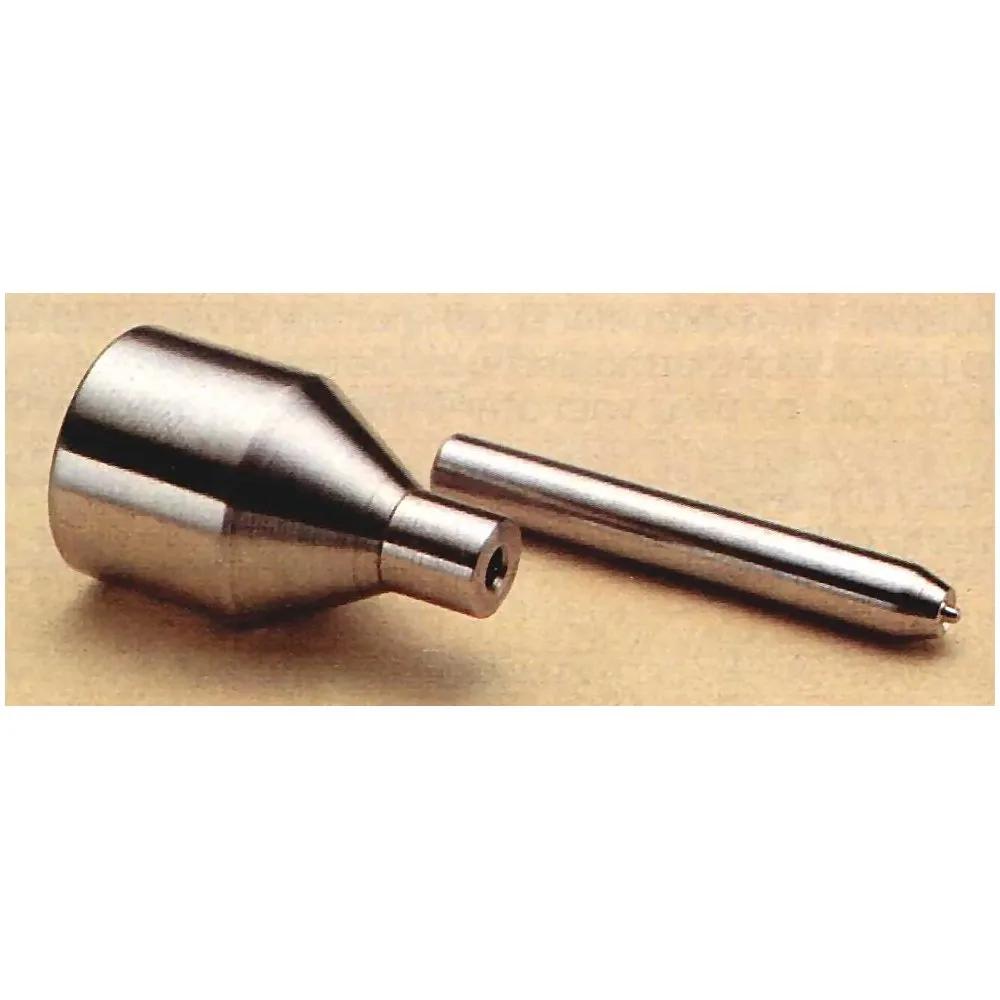

For correct swaging of Terminal H2176-01 or H2176-05.
Use with a suitable bench press. See instruction sheet IS-35 for advice on use.
Swage is for mechanical strength - terminal should also be soldered to PCB for electrical connection.
