Z2173-00

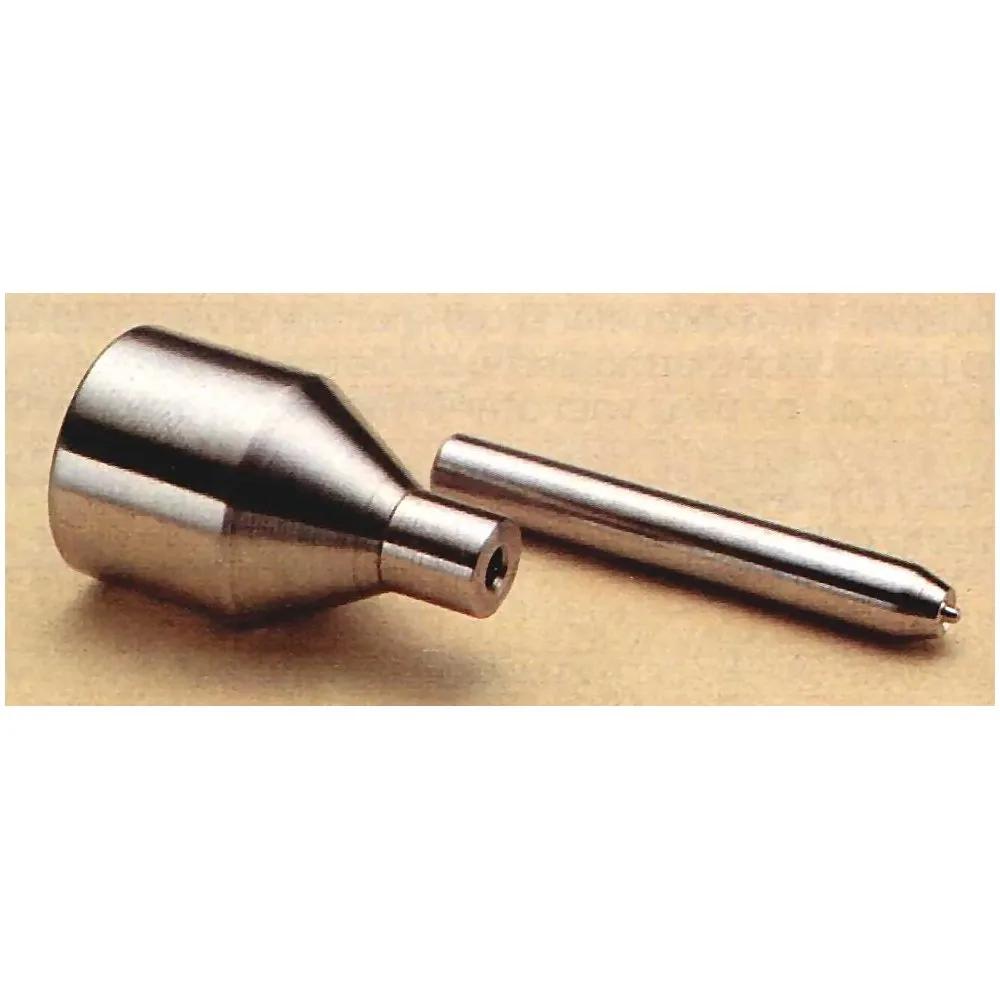

Punch and Die Tool Set

Hardware - Terminal Pin, Terminal Lug, Turret Lug

  • For correct swaging of Terminal H2173-01 or H2173-05.
  • Use with a suitable bench press.
  • Swage is for mechanical strength – terminal should also be soldered to PCB for electrical connection.
Availability
Add to Favorites

Technical Details

Specification

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

30.347g

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.
