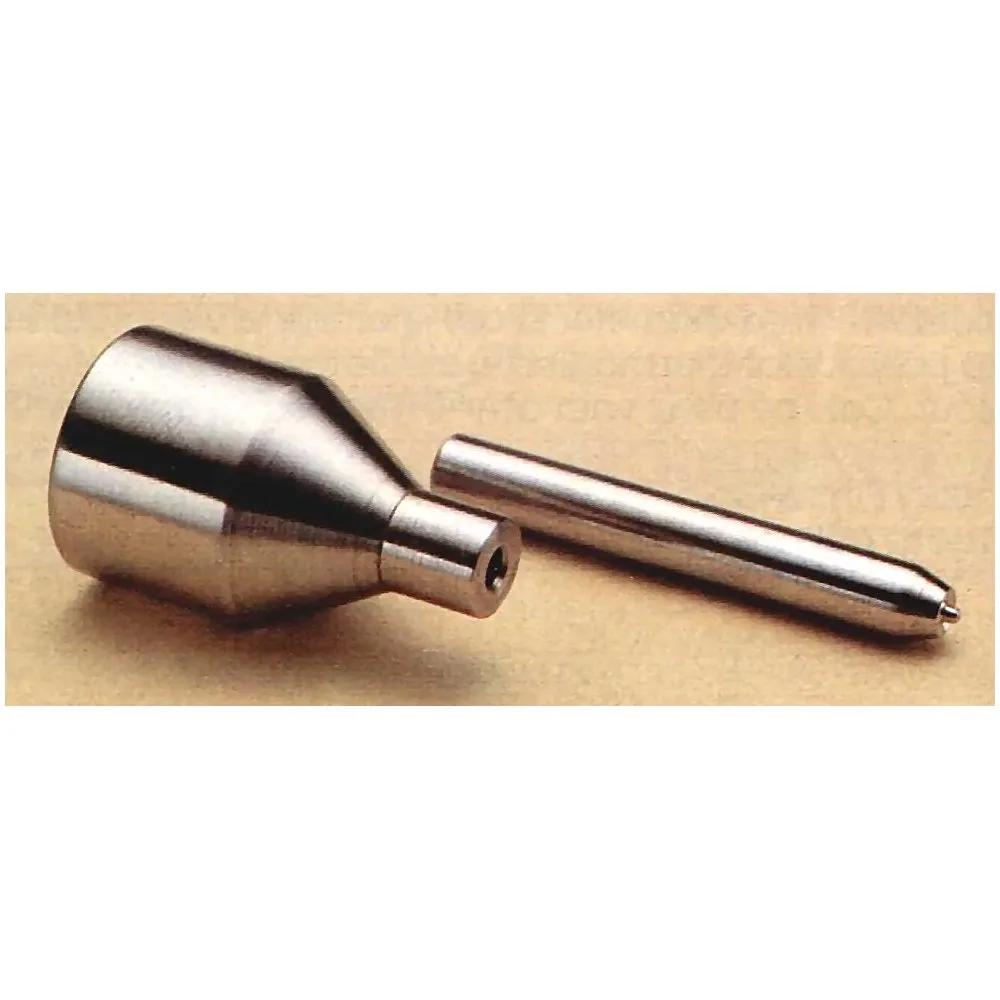

Z2105B00
Hardware - Terminal Pin, Terminal Lug, Turret Lug
For correct swaging of Terminal H2105B01.
Use with a suitable bench press. See instruction sheet IS-35 for advice on use.
Swage is for mechanical strength - terminal should also be soldered to PCB for electrical connection.
