Z125-9262600

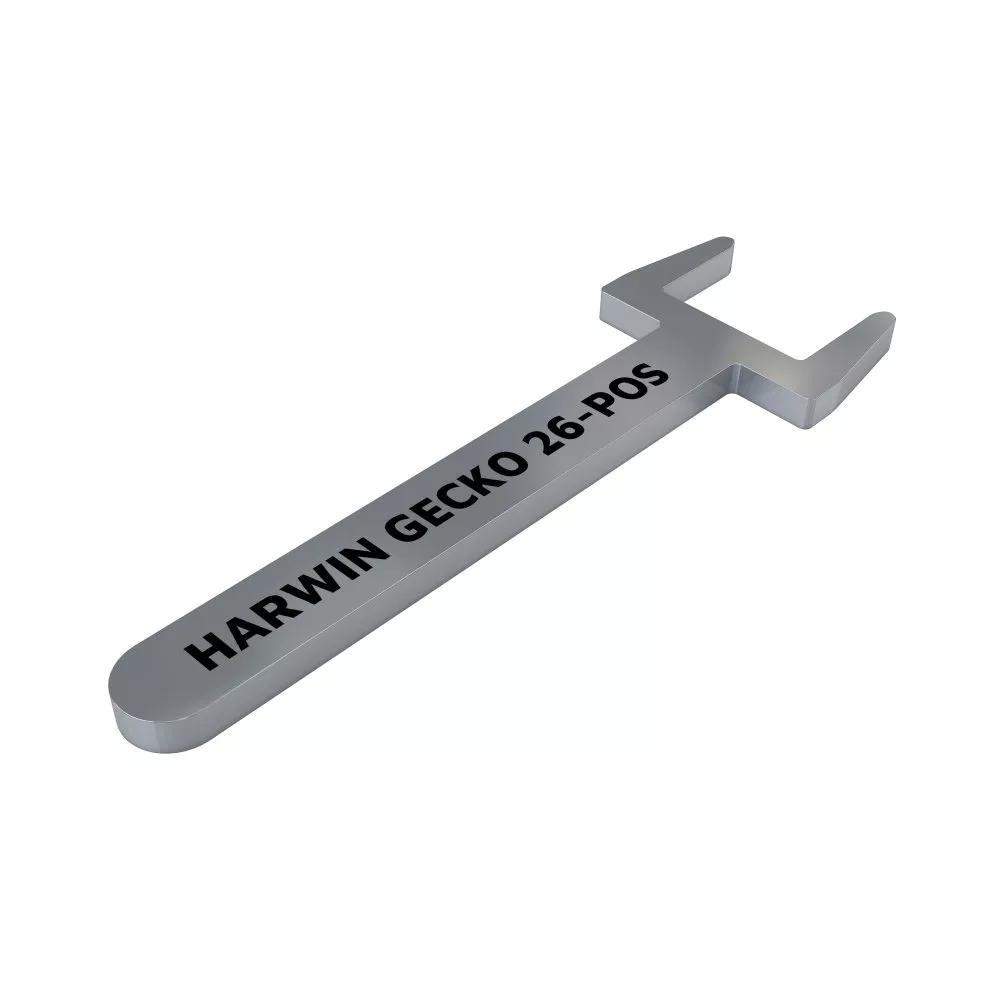

Separator Tool for Latched Gecko

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • To assist separation of mated Gecko connectors with latches, where finger access is difficult.
  • For use with 26-contact (13+13) latched Gecko connectors.

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

32g

Overall Dimensions (L x W x D) in mm:

95.00 x 30.00 x 4.00

Availability

Distributor Location Quantity
Digi-Key
Global
Status50
Harwin
Europe
Status35
Mouser Electronics Inc
Global
Status10

*Stock available: contact distributor to purchase
