Z125-9261600

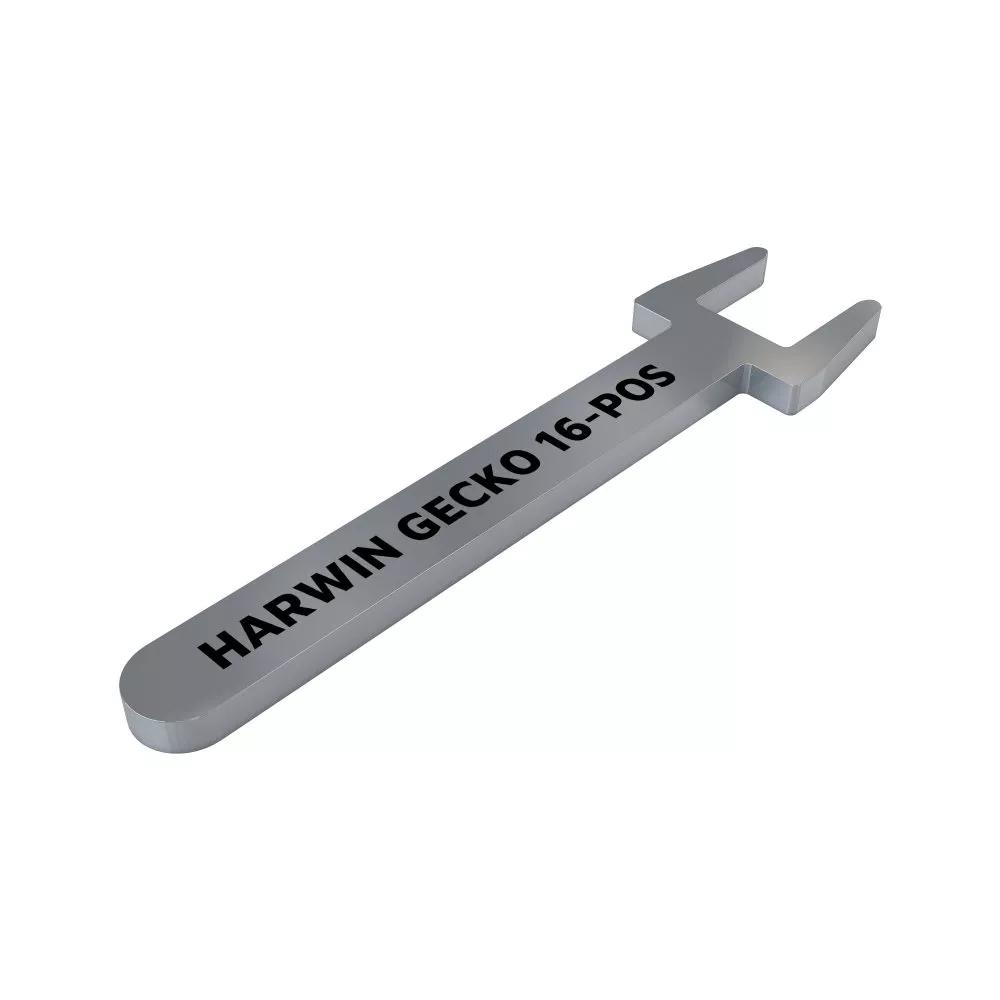

Separator Tool for Latched Gecko

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • To assist separation of mated Gecko connectors with latches, where finger access is difficult.
  • For use with 16-contact (8+8) latched Gecko connectors.
Availability
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

31g

Overall Dimensions (L x W x D) in mm:

95.00 x 23.75 x 4.00

Availability

52 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 14
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 11

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 27
