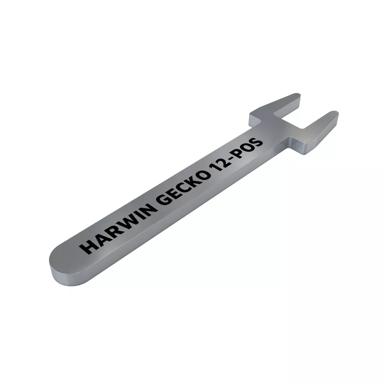

Z125-9261200
1.25mm Pitch High-Reliability Connector - Gecko Latch
To assist separation of mated Gecko connectors with latches, where finger access is difficult.
For use with 12-contact (6+6) latched Gecko connectors.
See instruction video for advice on use.
View Technical Details
In Stock
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
Not applicable to RoHS (2015/863/EU)
Packaging Style:
Single Pack
Contact Pitch:
1.25mm (0.049")
Weight:
30g
Dimensions:
95.00 x 21.25 x 4.00
Technical Drawing / Datasheet - Z125-926.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Datasheet - Gecko range: signal connectors (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS - Z125-9261200
