Home > Z125-9261000
Active

Z125-9261000

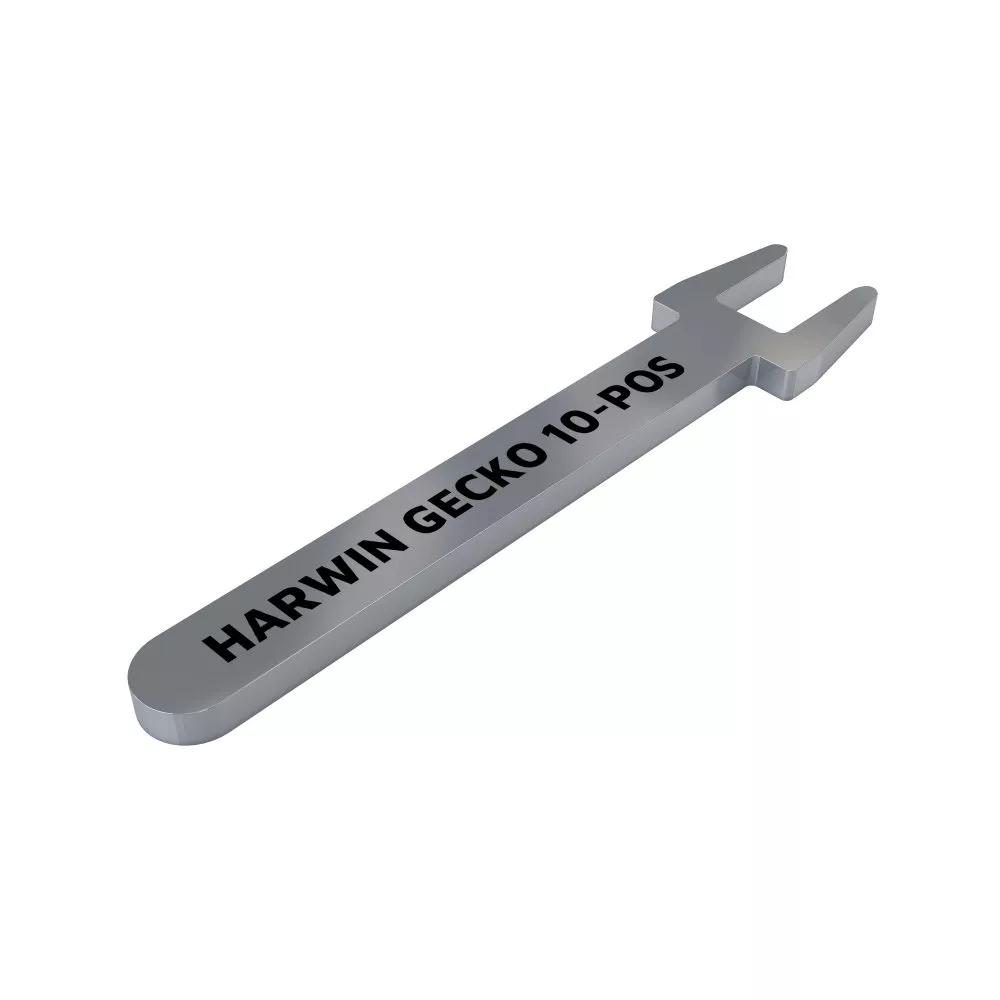

Separator Tool for Latched Gecko

1.25mm Pitch High-Reliability Connector - Gecko with Latches

  • To assist separation of mated Gecko connectors with latches, where finger access is difficult.
  • For use with 10-contact (5+5) latched Gecko connectors.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

30g

Overall Dimensions (L x W x D) in mm:

95.00 x 20.00 x 4.00

Availability

Limited availability or made-to-order
Distributor Location Quantity
Digi-Key
Global
Status13
Harwin
Global
Status48
Mouser Electronics Inc
Global
Status7

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - Z125-926.pdf

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

ENVIRONMENTAL COMPLIANCE

PDF

Not applicable to RoHS (2015/863/EU)

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the Gecko connectors, 1.25mm pitch High-Reliability

OTHER DOWNLOADS

PDF

Catalog page - Gecko Tooling

PDF

Catalog page - Gecko Introduction
