Z125-904

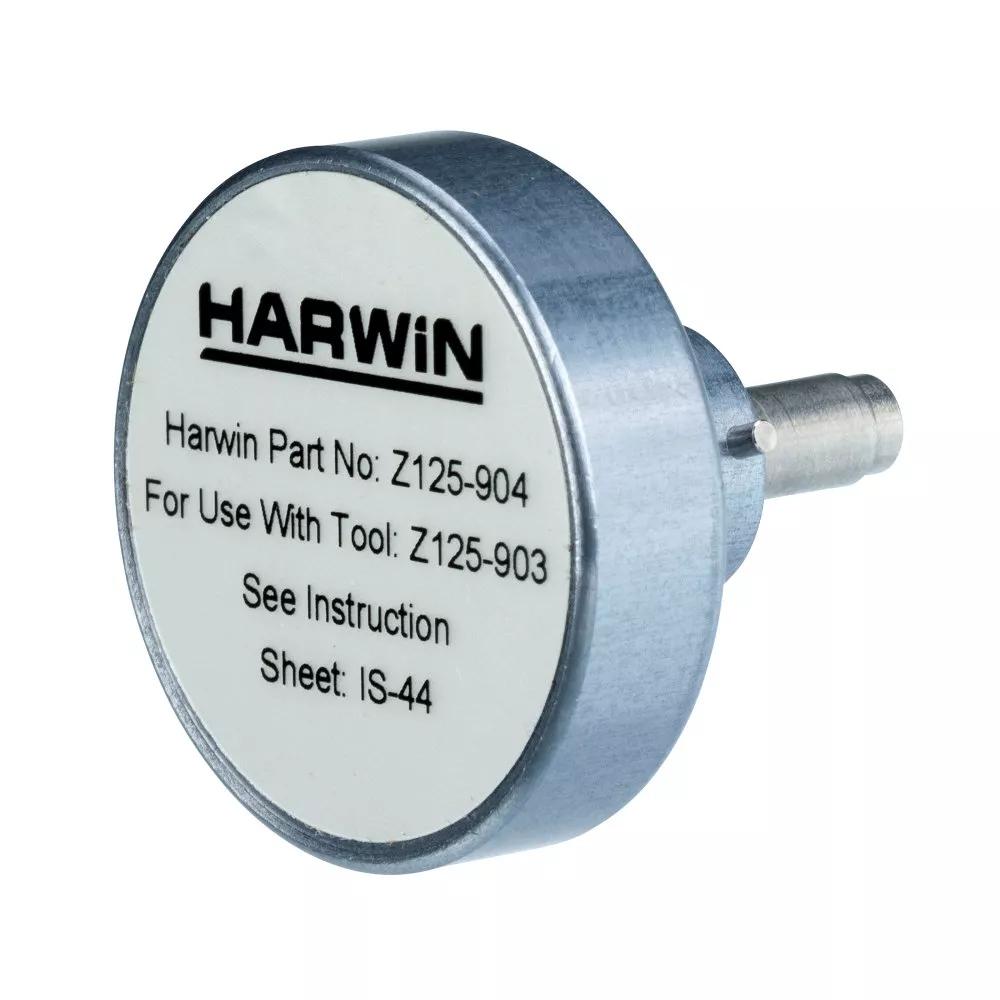

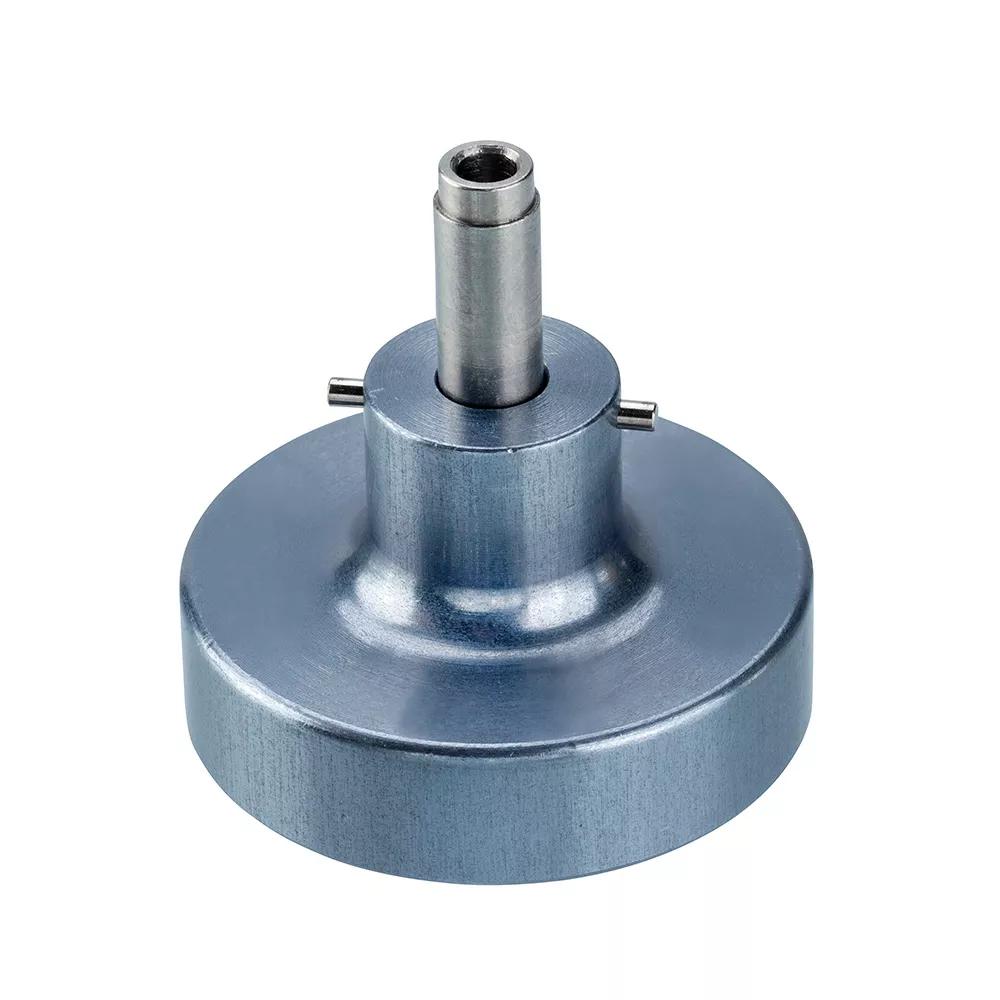

Positioner / Insert for Hand Crimp Tool

1.25mm Pitch High-Reliability Connector - Gecko-MT

  • For Gecko-MT Male & Female power crimp contacts.
  • Use with Hand Crimp Tool Z125-903.
  • See instruction sheet and video for advice on use.
Availability
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

10.09g

Overall Dimensions (L x W x D) in mm:

Ø23.65 x 23.80

Availability

19 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 3
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1
Distributor Newark
Location USA
Quantity (Updated Daily) 1
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 12
