Active

T5747

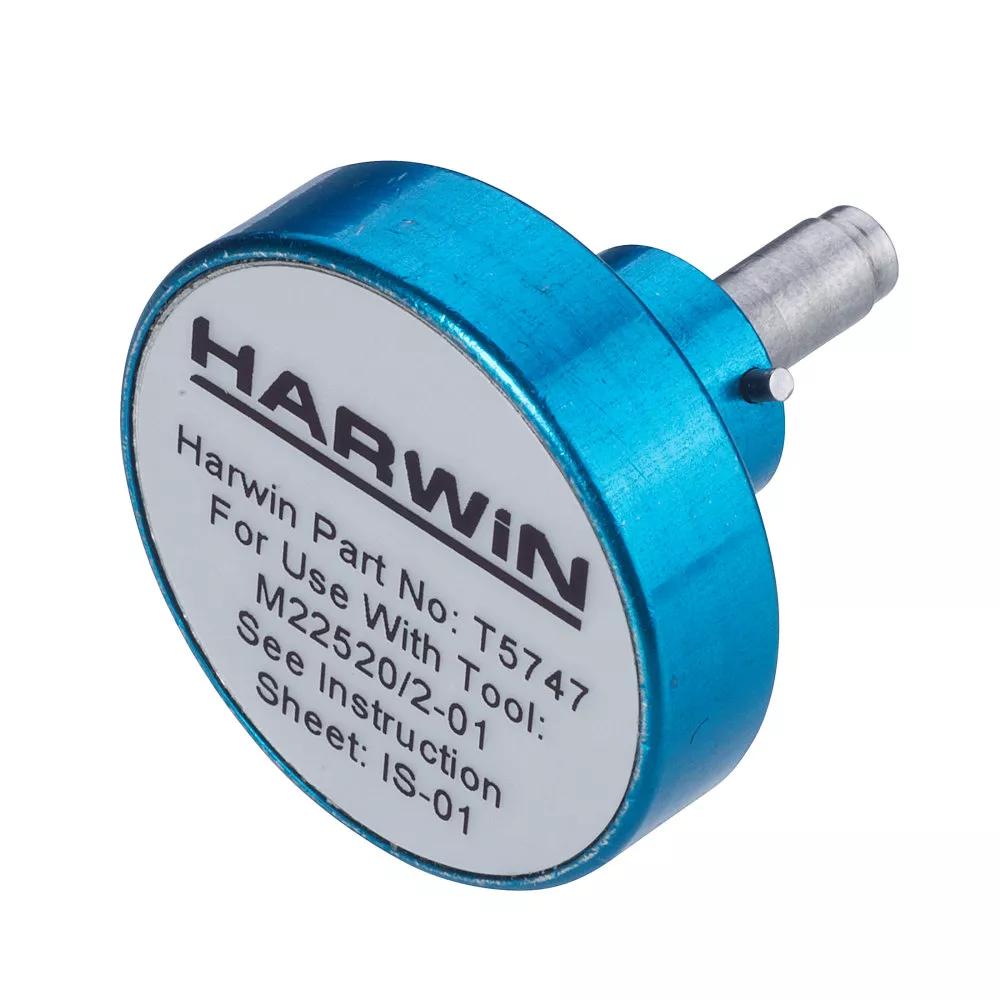

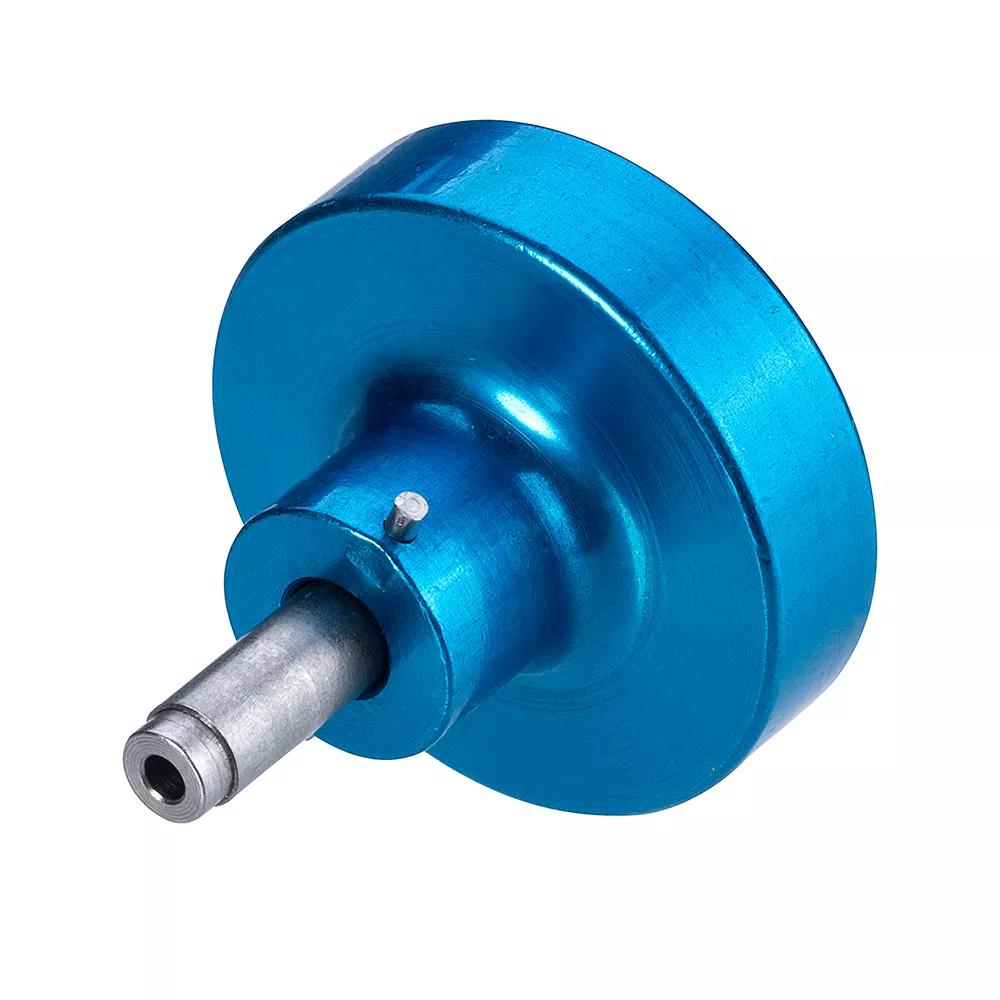

Positioner / Insert for Hand Crimp Tool

2.00mm Pitch High-Reliability Connector - Datamate Tooling

For correctly positioning signal crimps in Hand Crimp Tool M22520/2-01 whilst crimping.
Use with all Female Datamate L-Tek, J-Tek and Mix-Tek signal contacts, and Male L-Tek signal contacts.

Availability

T5747 - Positioner / Insert for Hand Crimp Tool

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Packaging Style:

Single Pack

Individual Part Weight:

10.28g

Overall Dimensions (L x W x D) in mm:

Ø23.65 x 23.80
