S9091-46R

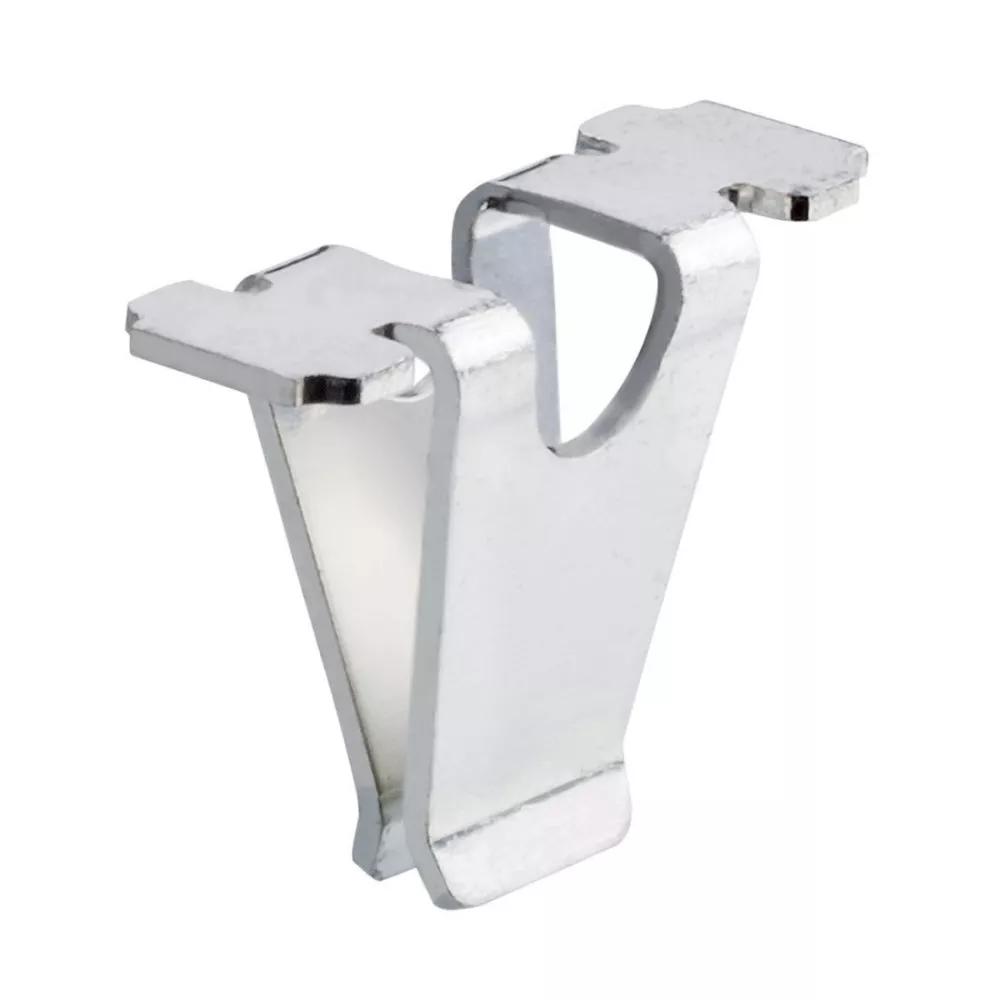

Female Vertical SMT Ø0.80-1.50mm Contact (T+R)

Sockets - Individual SMT PCB Socket

  • Single-piece Surface Mount PC Board Socket, extremely low profile. Tin finish on contact area and termination.
  • Suitable for mating pins 0.8 to 1.5mm, square or round.
  • Packaged in Tape & Reel for automated placement.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.8-1.5mm

Current Rating:

5A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.047g

Overall Dimensions (L x W x D) in mm:

5.75 x 2.00 x 4.33

Height of Connector above PCB:

0.20mm

Availability

168,265 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 79200
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 71826
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 6825
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 6300
Distributor Farnell
Location Europe
Quantity (Updated Daily) 2700
Distributor Farnell
Location Europe
Quantity (Updated Daily) 707
Distributor Newark
Location USA
Quantity (Updated Daily) 707

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S9091R.pdf

ZIP

S9091-46R CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT042 - SMT Socket S9091-46R Mechanical and Electrical

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for S9091-46R product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the PCB Socket contacts range

OTHER DOWNLOADS

PDF

3D PDF file - S9091-46R_3D.pdf

PDF

Catalog page - PC Board SMT Sockets (twin-beam)

PDF

Catalog page - PCB Sockets Specification

PDF

Catalog page - PCB Sockets Introduction
