S8131-46R

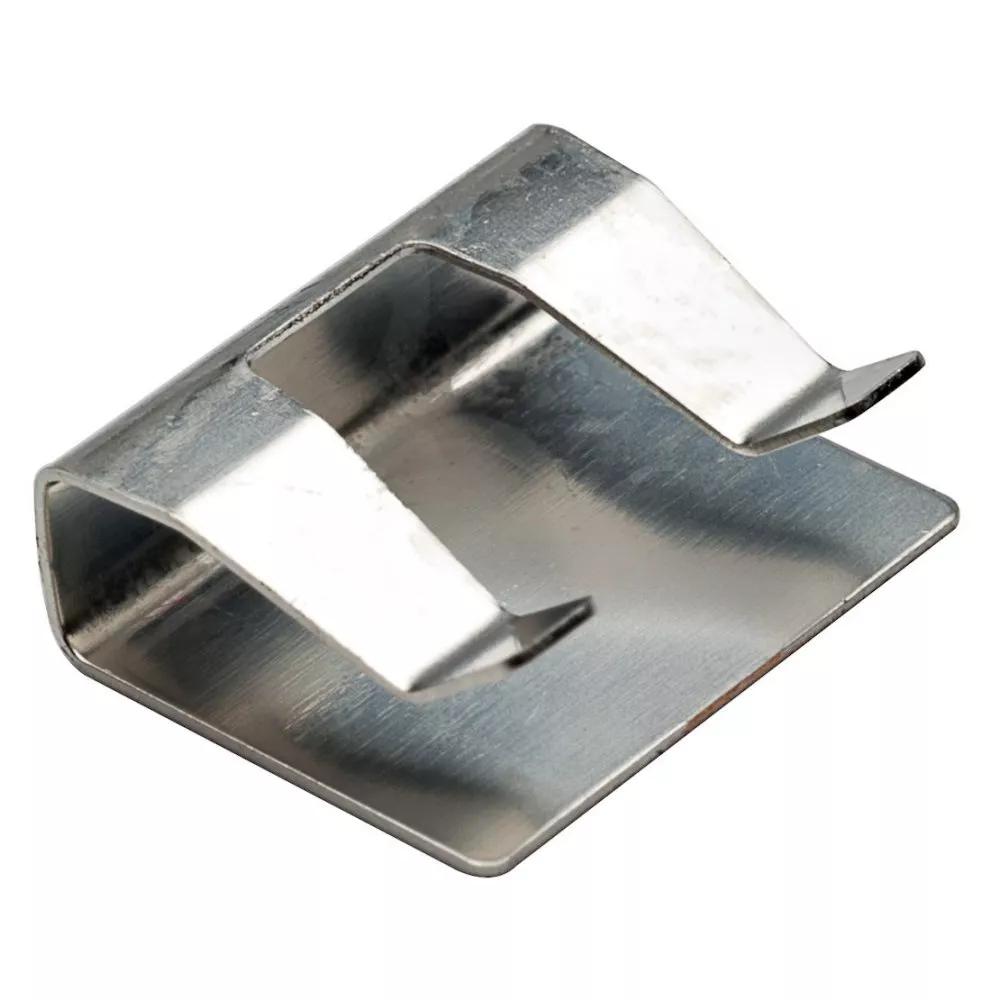

SMT Cable Clip, Coax Grounding Clip

Hardware - Cable Management

  • Surface Mount cable management or coax grounding clip, Tin finish.
  • For Ø2.00-3.00mm cable. Accommodates up to 3 x Ø2mm, or 1 x Ø3mm cables.
  • Grounding Cable clip for Coax braiding (RG58 Coax Cable).
Add to Favorites

Technical Details

Specification

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.281g

Overall Dimensions (L x W x D) in mm:

10.00 x 8.00 x 3.55

Height of Connector above PCB:

3.55mm

Availability

26,122 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 17600
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 4297
Distributor Anglia
Location Europe
Quantity (Updated Daily) 4000
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 125
Distributor Newark
Location USA
Quantity (Updated Daily) 100

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
