S8121-46R
Hardware - Cable Management

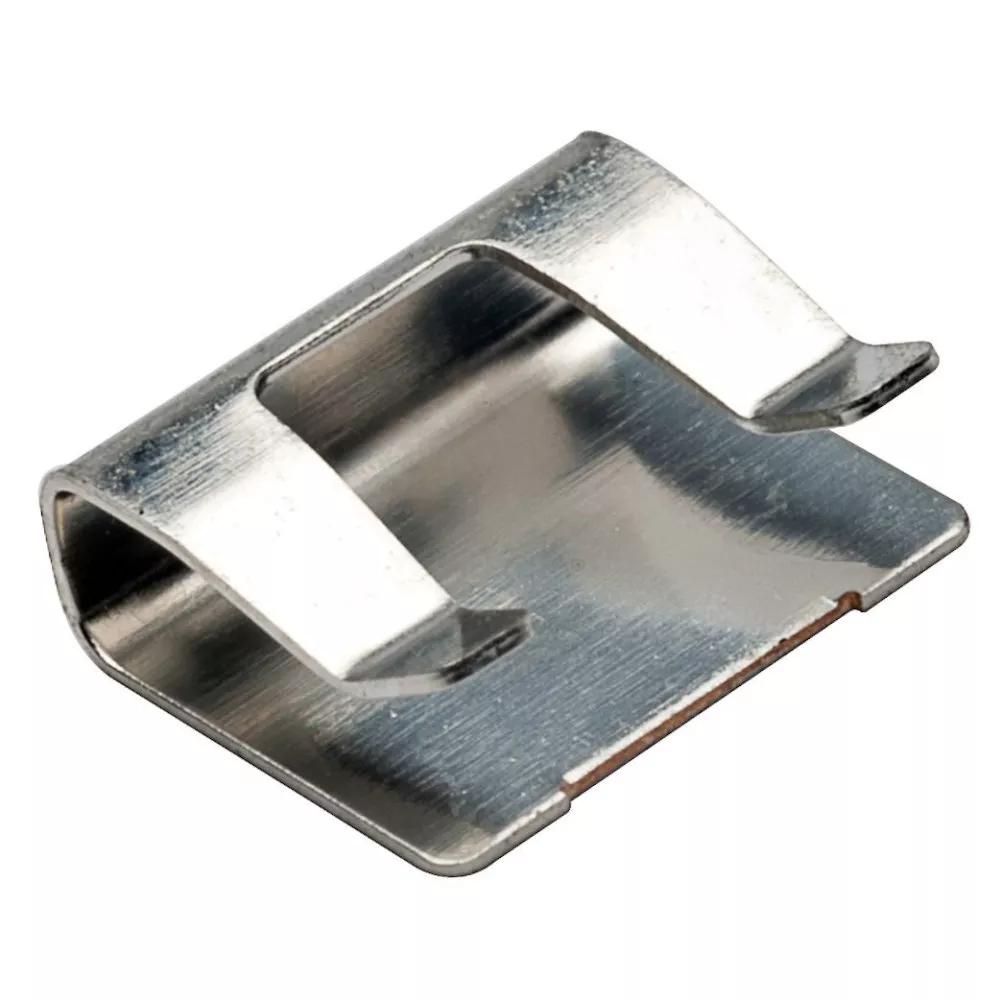

Surface Mount cable management or coax grounding clip, Tin finish.
For Ø1.50-2.00mm cable. Accommodates up to 2 x Ø1.5mm, or 1 x Ø2mm cables.
Grounding Cable clip for Coax braiding.
View Technical Details
In Stock
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Entry Style:
Side Entry
Country of Origin:
GB
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Phosphor Bronze
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
Weight:
0.132g
Dimensions:
7.00 x 5.50 x 2.55
Height of Connector above PCB:
2.55mm
Technical Drawing / Datasheet - S8121R.pdf
Product Training Module - SMT PCB Cable clips (Coax grounding clips)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S8121 series
RoHS - S8121-46R
