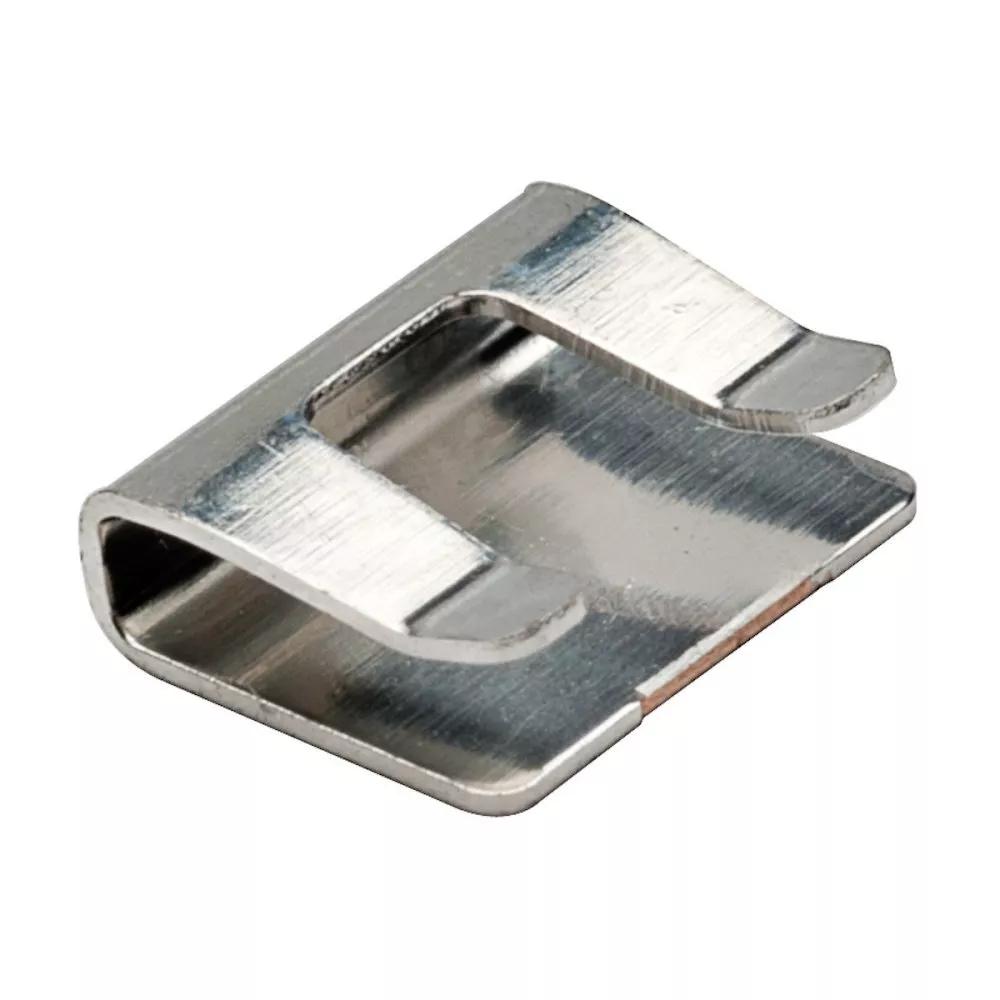

S8101-46R

SMT Cable Clip, Coax Grounding Clip

Hardware - Cable Management

Add to Favorites

202,885 in stock   Check availability

2 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Surface Mount cable management or coax grounding clip, Tin finish.
  • For Ø1.00mm cable. Accommodates up to 2 x Ø1mm cables.
  • Grounding Cable clip for Coax braiding (RG178, RG179, RG316 Coax Cable).

Technical Details

Specification

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.067g

Overall Dimensions (L x W x D) in mm:

5.00 x 4.00 x 1.50

Height of Connector above PCB:

1.50mm

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?
