S8091-46R

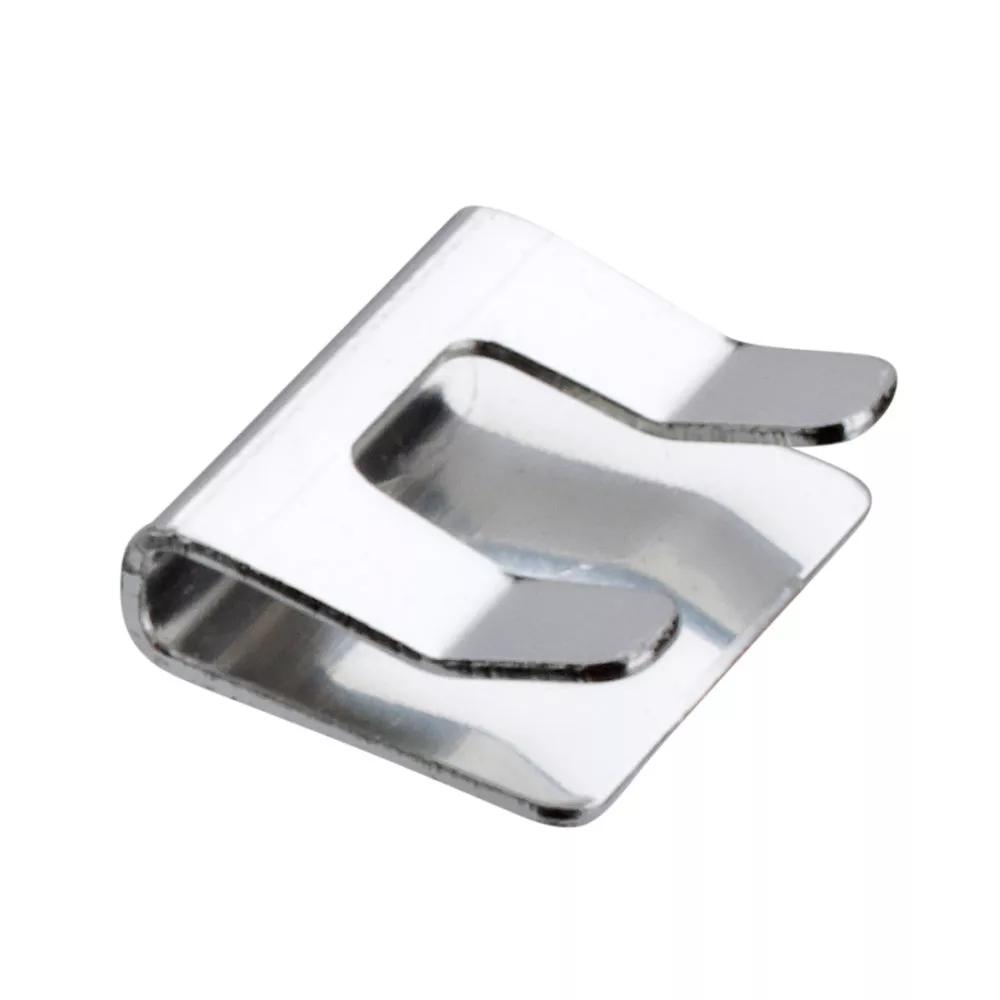

SMT Cable Clip, Coax Grounding Clip
Hardware - Cable Management
In stock Check availability
2 similar products View products
Traceparts account required
Product Description
- Surface Mount cable management or coax grounding clip, Tin finish.
- For Ø0.9mm cable. Accommodates up to 2 x Ø0.9mm cables.
- Grounding Cable clip for Ø1.12mm Coax braiding (UL1745-DSB CX-50, RFX50-DS32-132 or Ø1.32mm Mini Coax Cable).
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Connection Type:
Surface Mount (SMT)
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
1
Entry Style:
Side Entry
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Phosphor Bronze
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.066g
Overall Dimensions (L x W x D) in mm:
5.00 x 4.10 x 1.40
Height of Connector above PCB:
1.40mm
Frequently Asked Questions Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Was this answer useful?
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
