S8081-46R

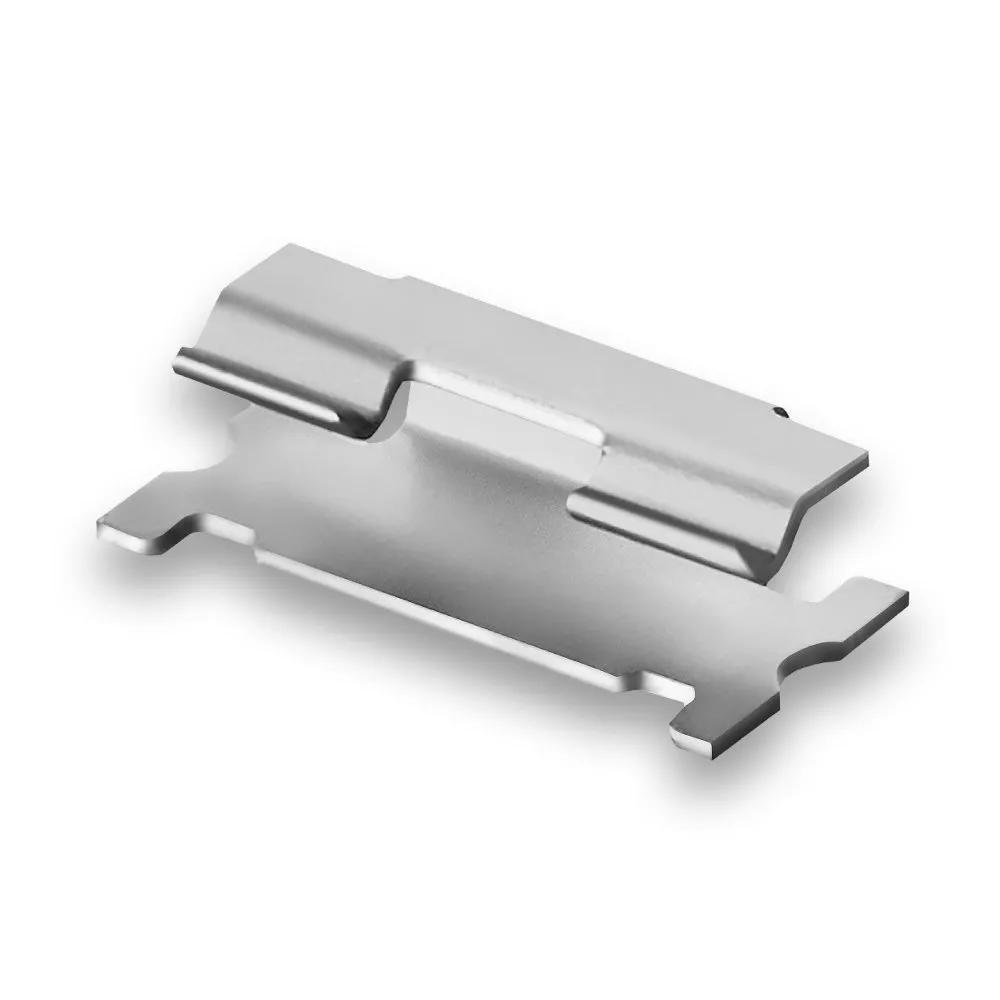

SMT Removable Jumper Link Clip (T+R)

Hardware - PCB Shorting Link, Removable Jumper Link

  • Horizontal surface Mount clip for removable jumper link applications. Accepts Ø0.7mm cross-section. Tin finish.
  • Use with S07-46 23mm long removable bar or S08-46 15mm long removable bar.
  • Packaged in Tape & Reel for automated placement.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.7mm

Current Rating:

3 to 13A, dependent on usage configuration (check Test Report)

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Stainless Steel

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.006g

Overall Dimensions (L x W x D) in mm:

3.00 x 1.40 x 0.84

Height of Connector above PCB:

0.84mm

Availability

19,410 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 8961
Distributor Anglia
Location Europe
Quantity (Updated Daily) 449

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 10000

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S8081-46R.pdf

ZIP

S8081-46R CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT055 - Removable Link (Clip and Bar) Current testing

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for S8081-46R product

INSTRUCTION SHEETS

PDF

Product Training Module - PCB Jumper Links (SMT, solid and removable)

OTHER DOWNLOADS

PDF

3D PDF file - S8081-46R_3D.pdf

PDF

Clip and Bar System - guide to the Clip and Bar (Removable Link) connection products
