S7241-45R

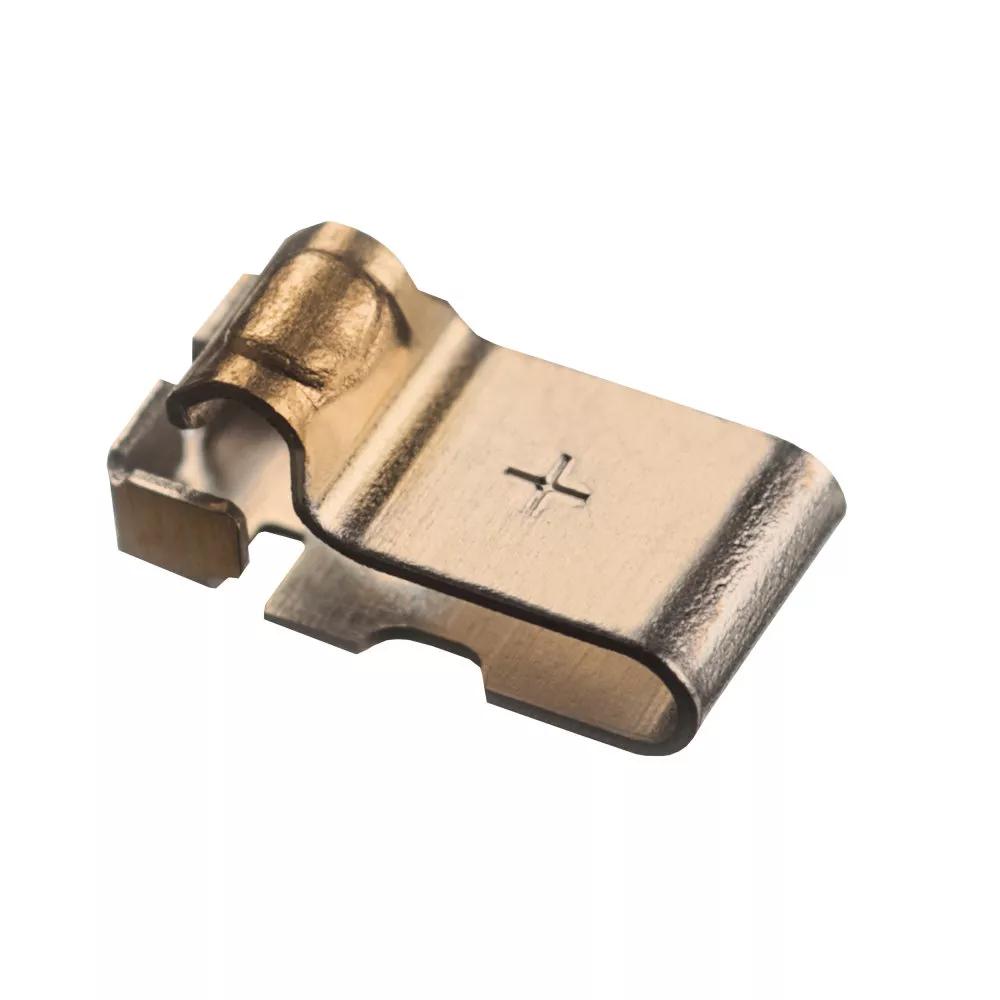

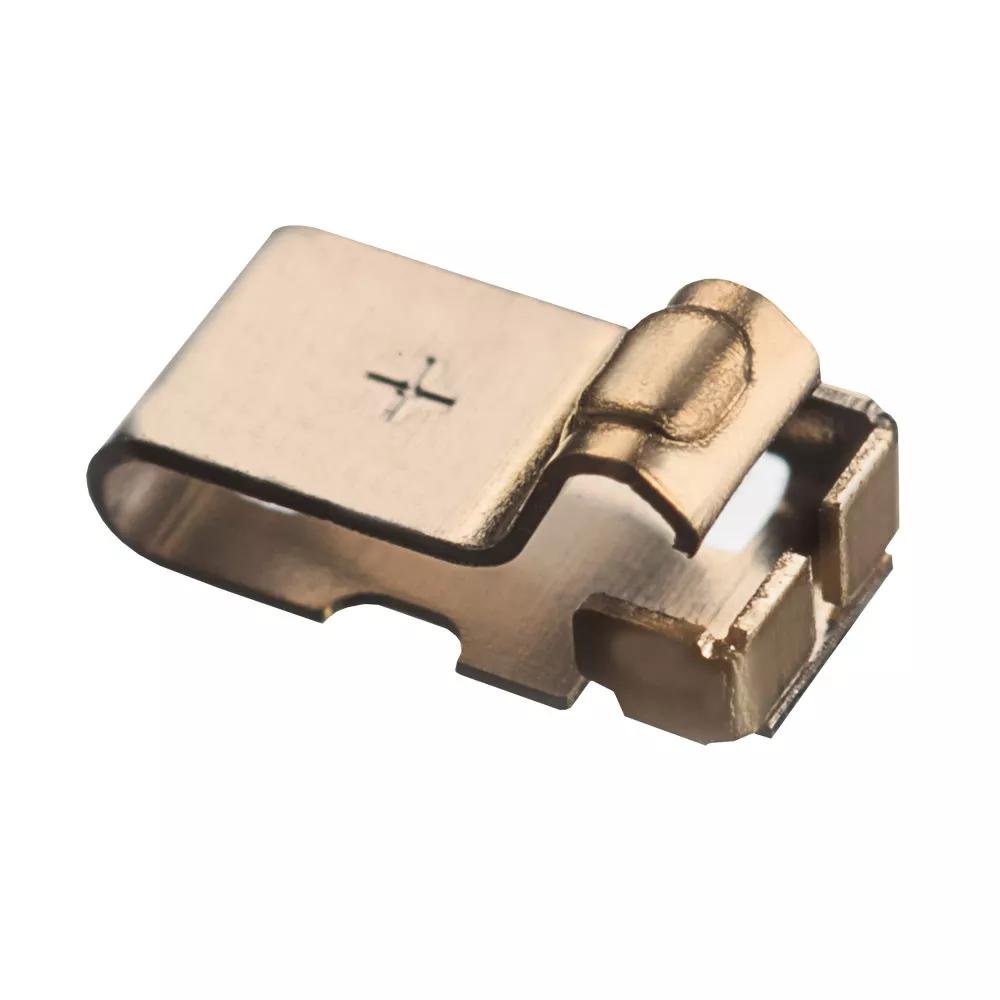

1.30mm SMT Spring Contact (T+R)

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement.
  • Free height = 1.3mm. Working height = 1mm.
  • Positive stop at 0.68mm – cannot be overstressed. Protected tip prevents product from hooking.

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1A

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Titanium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.01g

Overall Dimensions (L x W x D) in mm:

3.00 x 1.50 x 1.30

Height of Connector above PCB:

1.30mm

Availability

Distributor Location Quantity
Digi-Key
Global
Status7871
Mouser Electronics Inc
Global
Status17813
TTI Europe
Europe
Status8000

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this helpful?

38% found this helpful

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S7241-45R.pdf

ZIP

S7241-45R CAD Model (ZIP file containing STP and IGES)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for S7241-45R product

INSTRUCTION SHEETS

PDF

Product Training Module - EMC Shielding Spring Contacts (spring fingers, grounding contacts)

OTHER DOWNLOADS

PDF

3D PDF file - S7241-45R_3D.pdf

PDF

Catalog page - Spring Contacts (Antenna Contact with Positive Stop)

PDF

Catalog page - EMC Shielding Introduction

PDF

SMT Spring Contacts - graph of complete range of heights and compression
