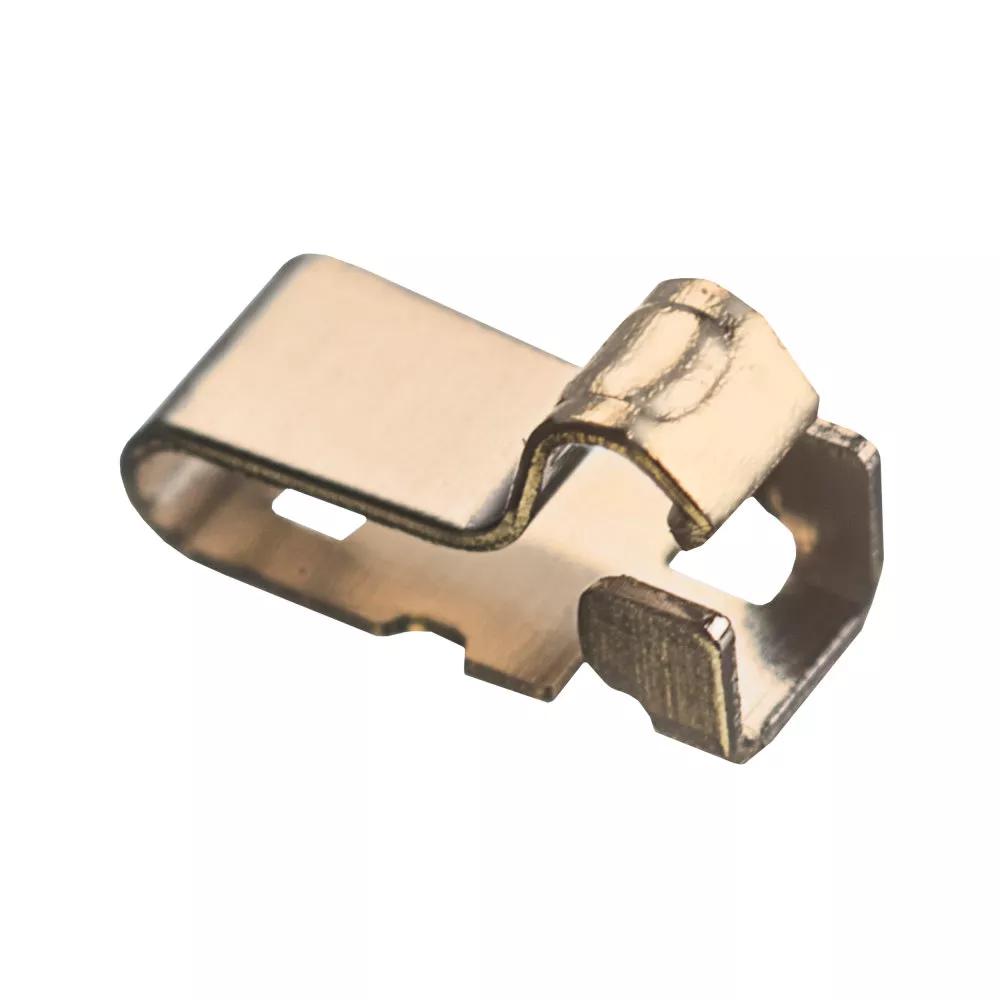

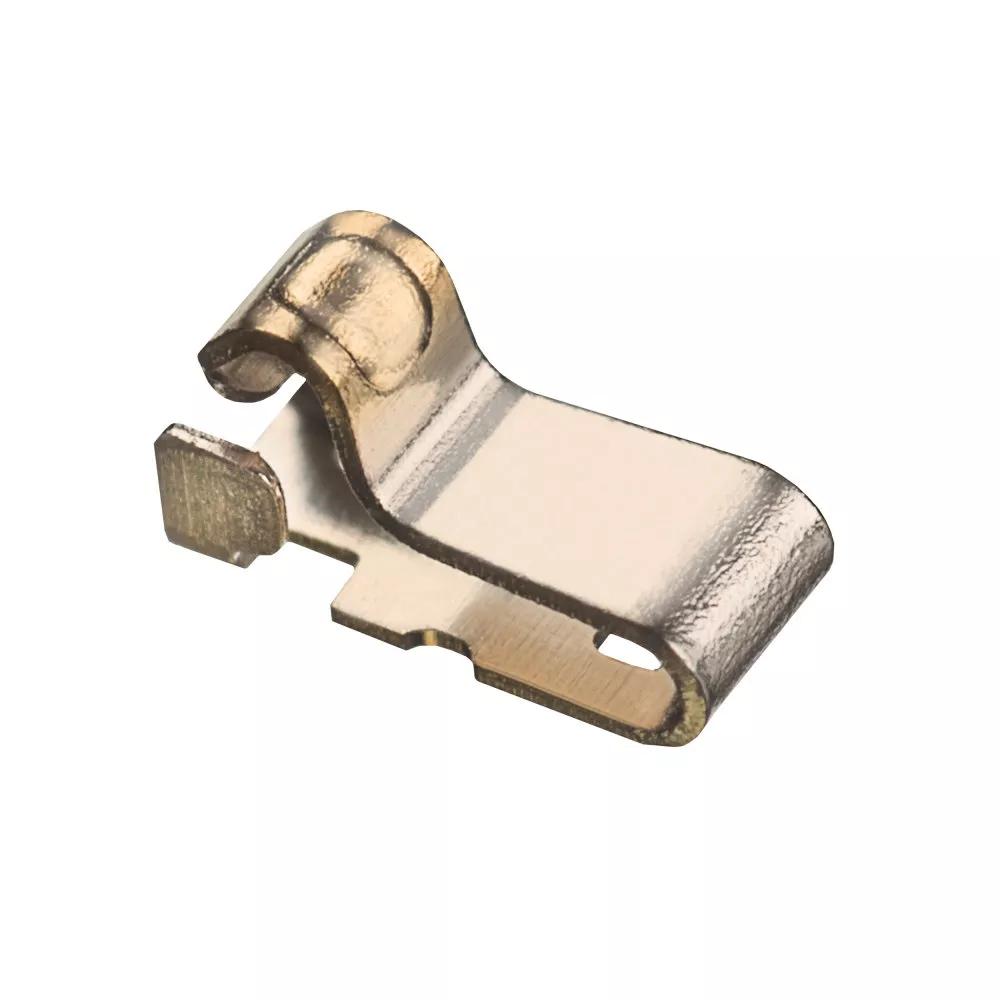

Accommodates both wiping and sliding actions, miniature size ideal for antenna contact. Packaged in Tape & Reel for automated placement.
Free height = 1.28mm. Working height = 0.98mm.
Positive stop at 0.68mm - cannot be overstressed.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Vertical
Country of Origin
KR
Number of Signal Contacts
1
Operating Temperature
-40°C to +85°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
1A
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
Gold
Base Material of Contact
Titanium Copper
Packaging Style
Tape and Reel
Finish / Plating on Termination
Gold
Dimensions
Weight
0.005g
Dimensions
2.50 x 1.00 x 1.28
Height of Connector above PCB
1.28mm
Downloads
Product Information
Product Training Module - EMC Shielding Spring Contacts (spring fingers + grounding contacts)
SMT Spring Contacts - graph of complete range of heights and compression
Product Datasheet - SPRING CONTACTS: SMT Spring Contacts (EZi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S7231-45R product
RoHS Declaration - S7231-45R
