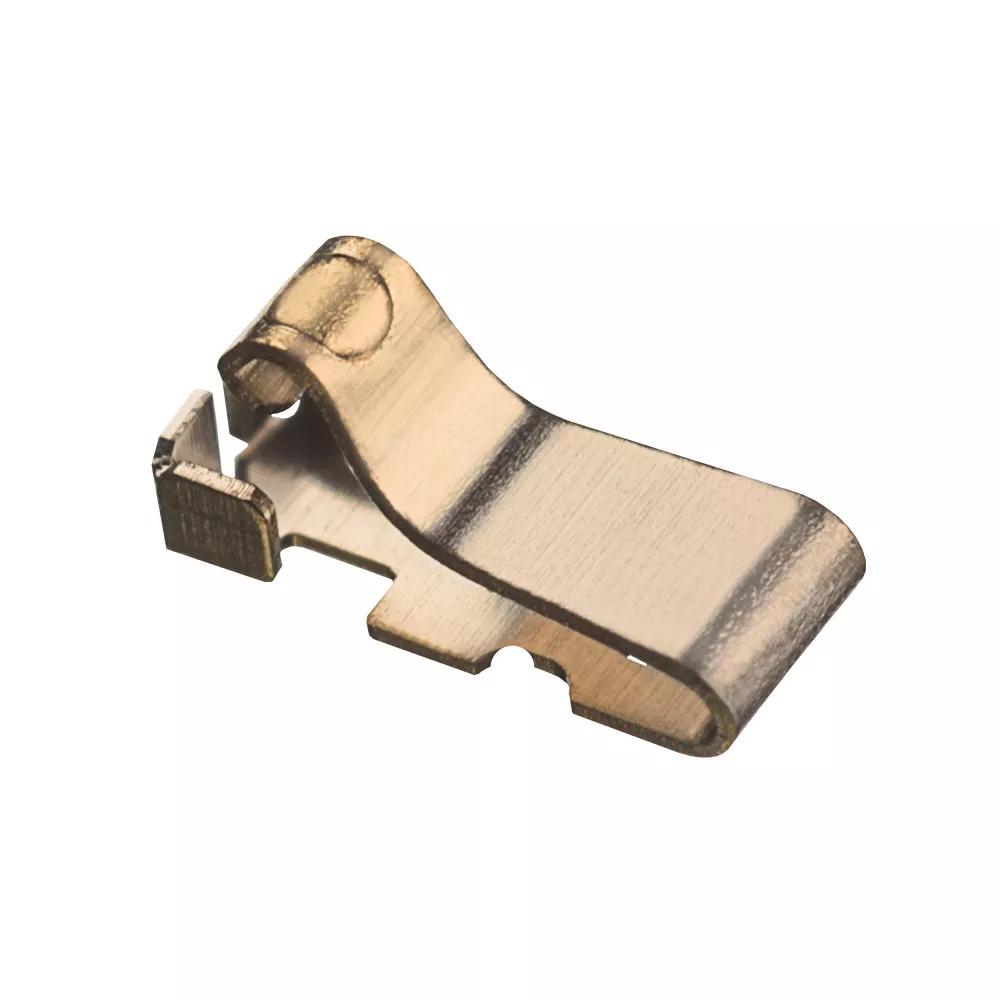

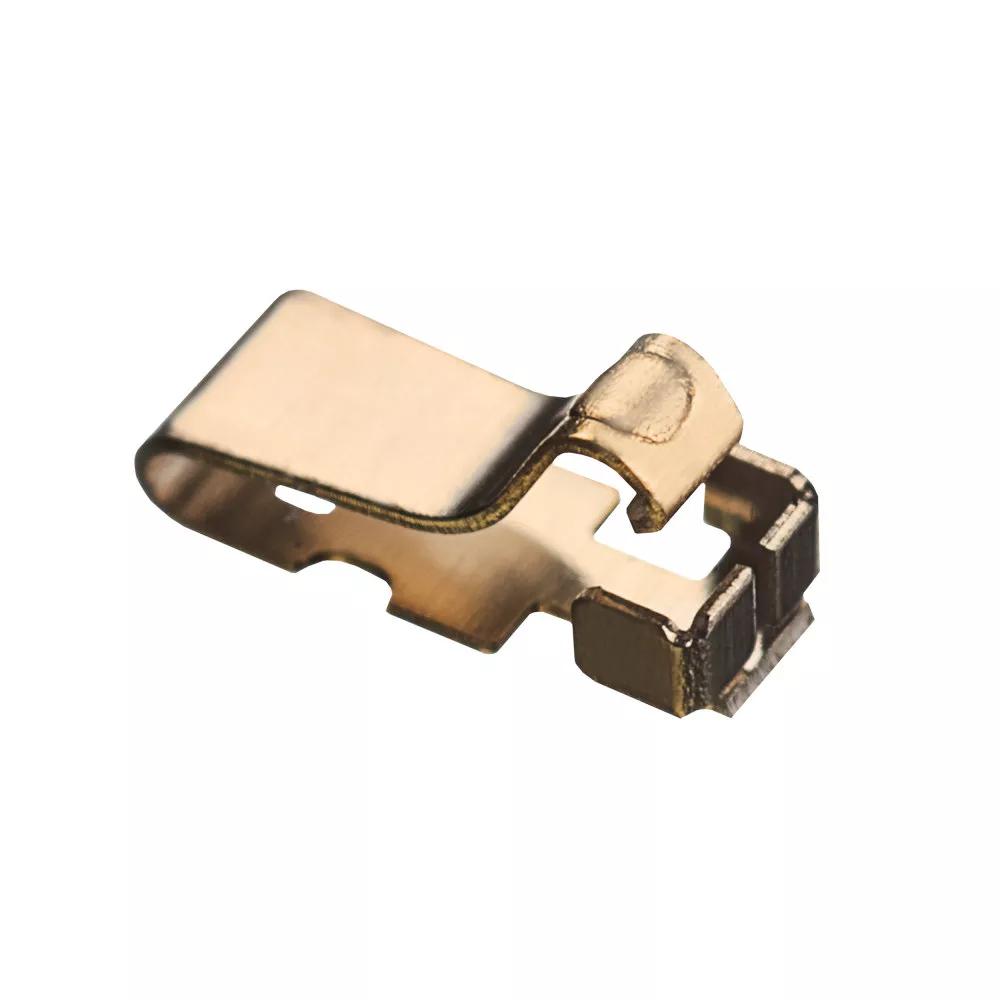

SMT Spring Contact (also known as Grounding Contact, Antenna Contact or Shield Finger), 1.23mm high, gold, positive stop, Tape & Reeled

EZi
EZi

Traceparts account required

S7221-45R

SMT Spring Contact (also known as Grounding Contact, Antenna Contact or Shield Finger), 1.23mm high, gold, positive stop, Tape & Reeled


SMT Spring Contact

  • Accommodates both wiping and sliding actions, miniature size ideal for antenna contact. Packaged in Tape & Reel for automated placement.

  • Free height = 1.23mm. Working height = 0.9mm.

  • Positive stop at 0.55mm - cannot be overstressed. Protected tip prevents product from hooking.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • Connector Orientation:

    Vertical

  • Country of Origin:

    KR

  • Operating Temperature:

    -40°C to +85°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1A

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Titanium Copper

  • Packaging Style:

    Tape and Reel

  • Finish / Plating on Termination:

    Gold

Dimensions

  • Weight:

    0.004g

  • Dimensions:

    2.60 x 1.00 x 1.23

  • Height of Connector above PCB:

    1.23mm

Downloads

    Product Information

  • SMT Spring Contacts - graph of complete range of heights and compression

  • Product Training Module - EMC Shielding Spring Contacts (spring fingers + grounding contacts)

  • Product Datasheet - SPRING CONTACTS: SMT Spring Contacts (EZi)

  • Technical Documentation

  • Technical Drawing / Datasheet - S7221-45R.pdf

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - S7221-45R

  • Material composition for S7221-45R product

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
