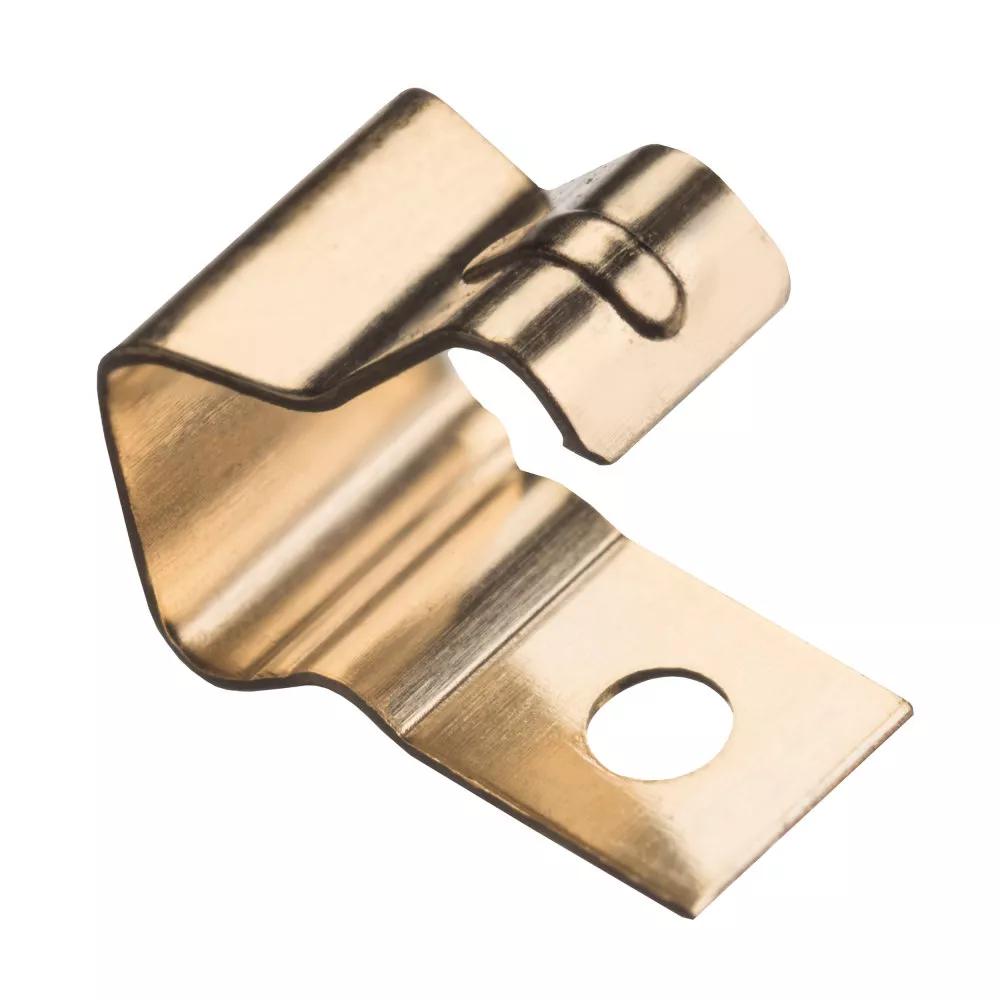

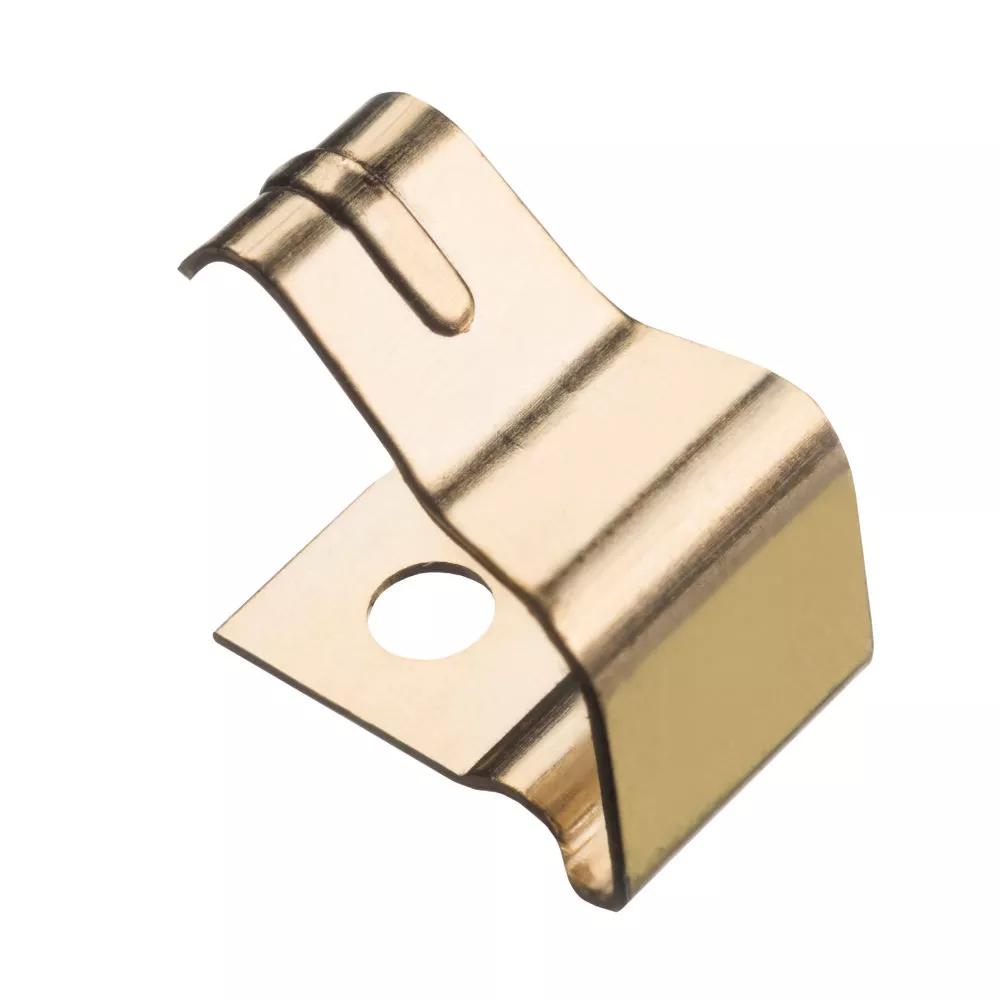

S7191-45R

5.00mm SMT Spring Contact (T+R)

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement.
  • Free height = 5mm. Working height = 3.9 to 4.4mm.

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1A

Operating Temperature:

-20°C to +70°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.045g

Overall Dimensions (L x W x D) in mm:

4.60 x 3.00 x 5.00

Height of Connector above PCB:

5.00mm

Availability

Distributor Location Quantity
Avnet Abacus
Europe
Status1500
Digi-Key
Global
Status19312
Harwin
Europe
Status25500
Mouser Electronics Inc
Global
Status8683
TTI Europe
Europe
Status6000

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
