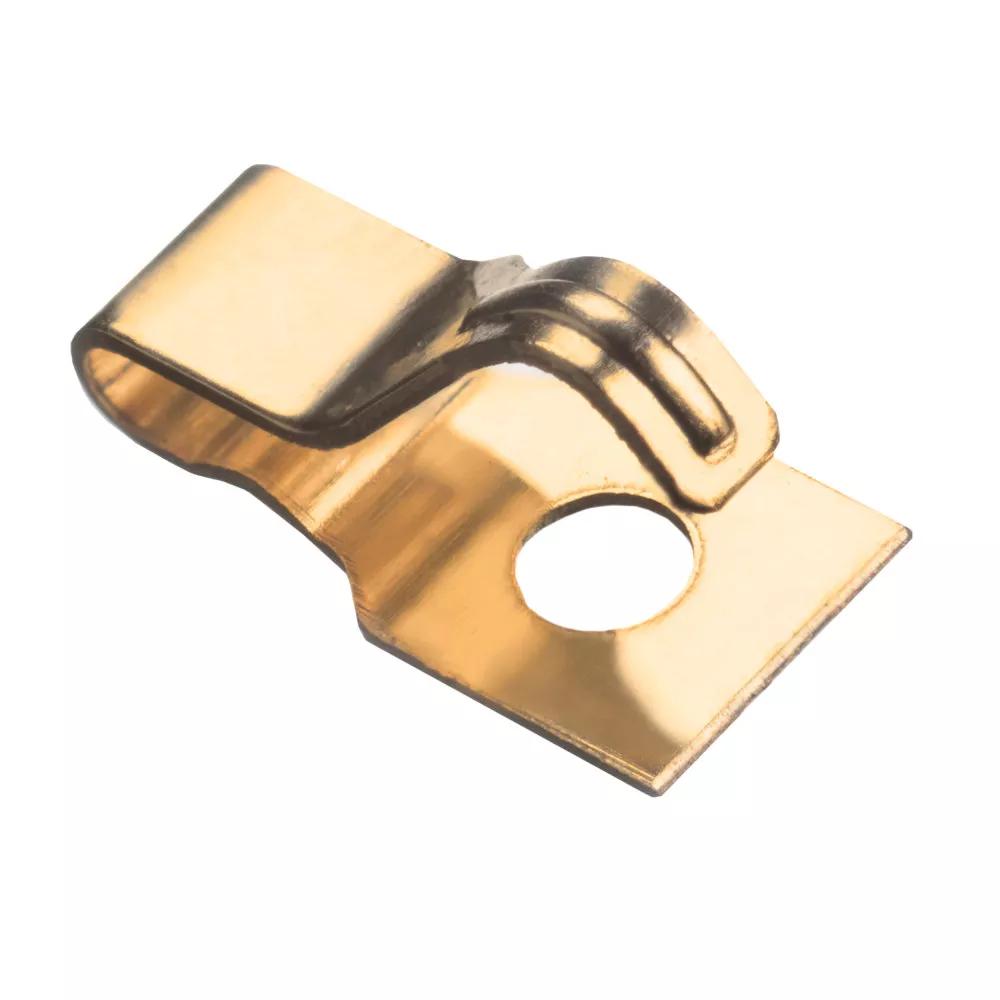

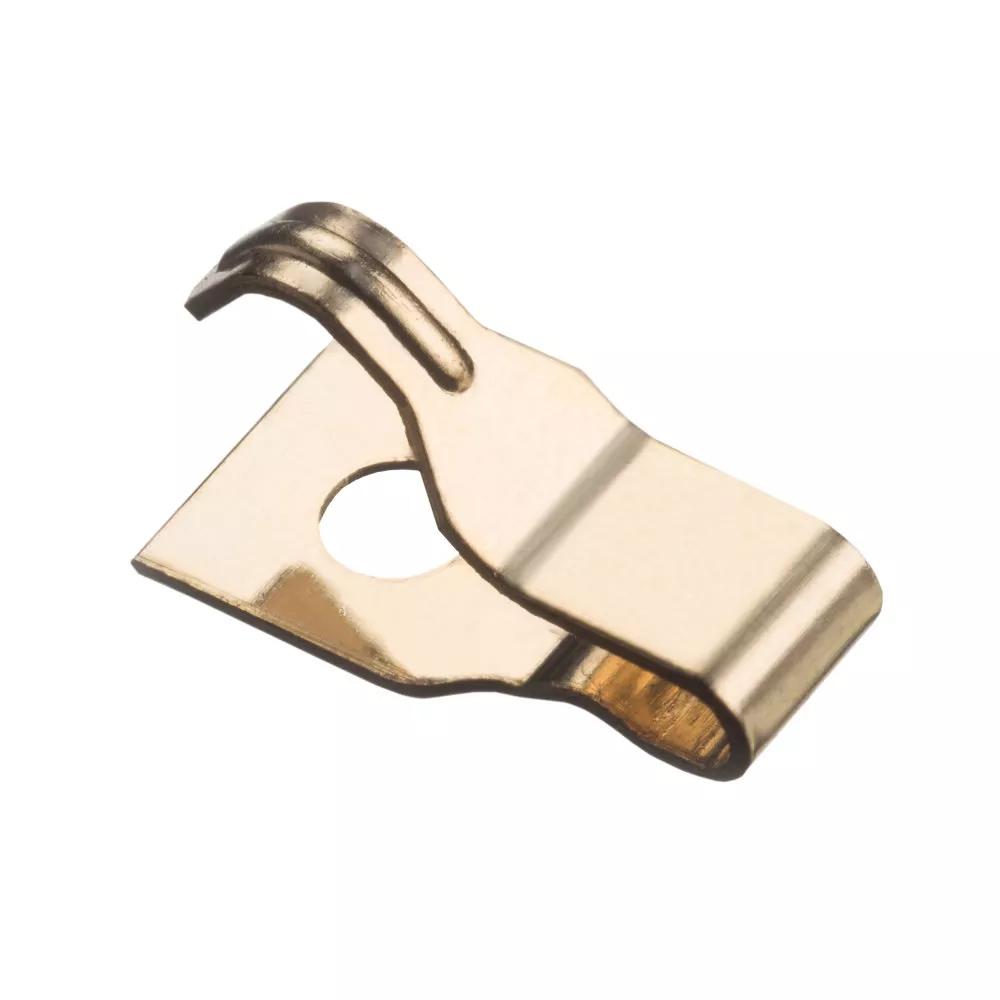

2.50mm SMT Spring Contact (T+R)
SMT Spring Contact
- Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement.
- Free height = 2.5mm. Working height = 1.4 to 1.9mm.
EU RoHS Status:
Surface Mount (SMT)
-20°C to +70°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
4.60 x 2.30 x 2.50
Height of Connector above PCB:
Questions & Answers Ask a Question
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
S7141-45R CAD Model (ZIP file containing STP and IGES)Download
