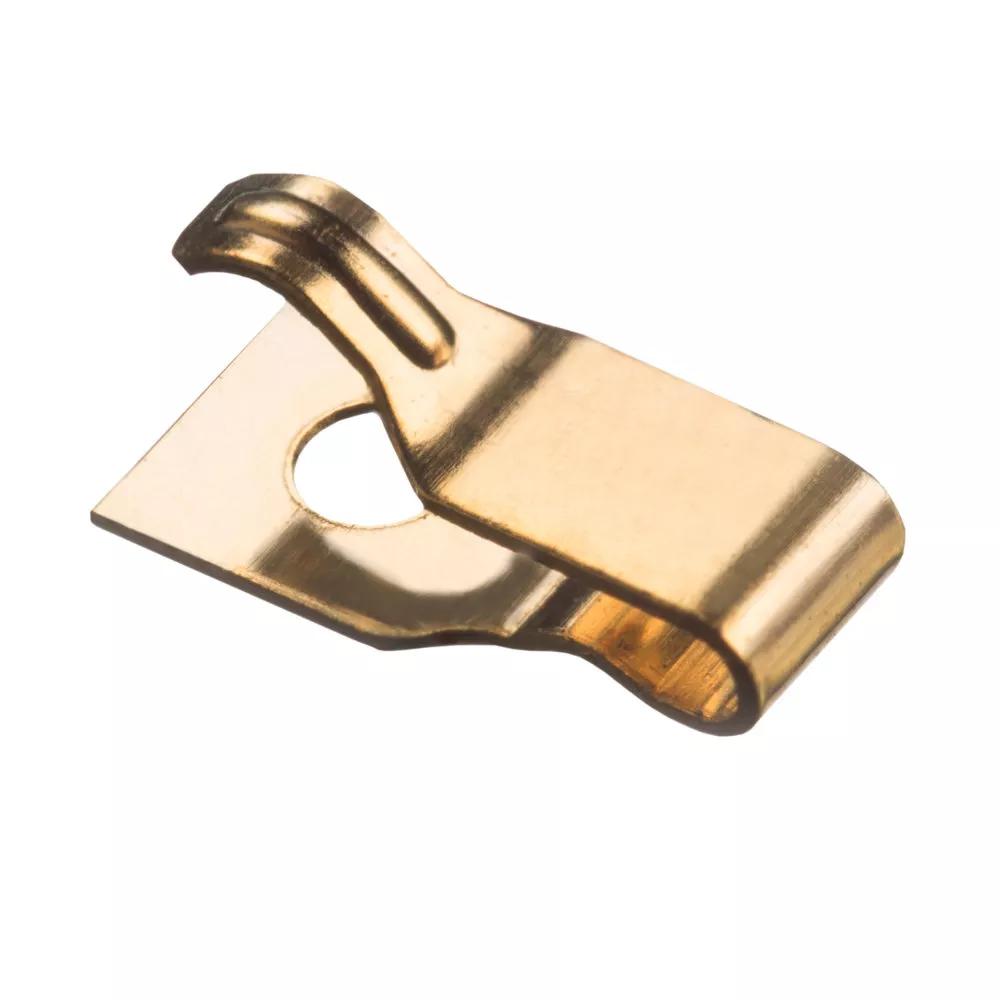

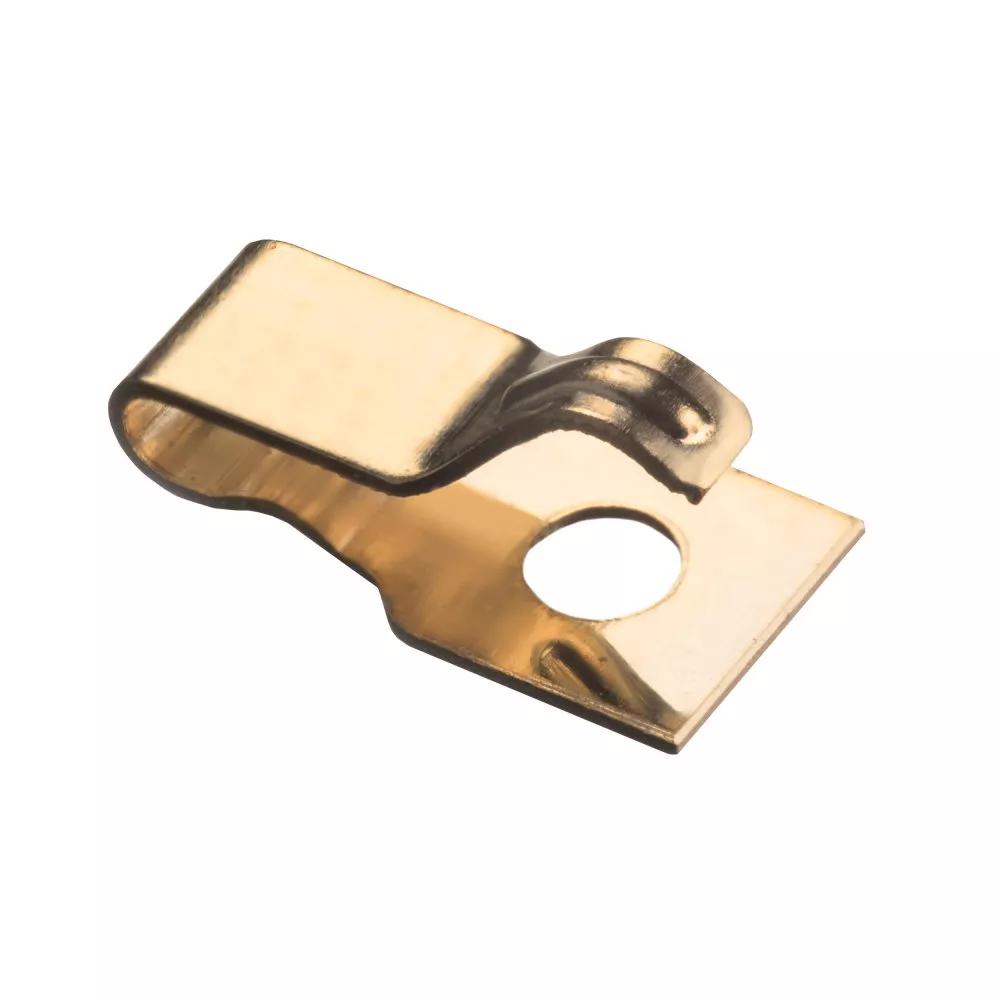

S7131-45R

2.00mm SMT Spring Contact (T+R)

SMT Spring Contact

  • Accommodates both wiping and sliding actions, miniature size ideal for antenna contact. Packaged in Tape & Reel for automated placement.
  • Free height = 2mm. Working height = 1 to 1.4mm.
  • Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1A

Operating Temperature:

-20°C to +70°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.019g

Overall Dimensions (L x W x D) in mm:

4.60 x 2.30 x 2.00

Height of Connector above PCB:

2.00mm

Availability

8,973 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 3000
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2685
Distributor Anglia
Location Europe
Quantity (Updated Daily) 2000
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1288

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
