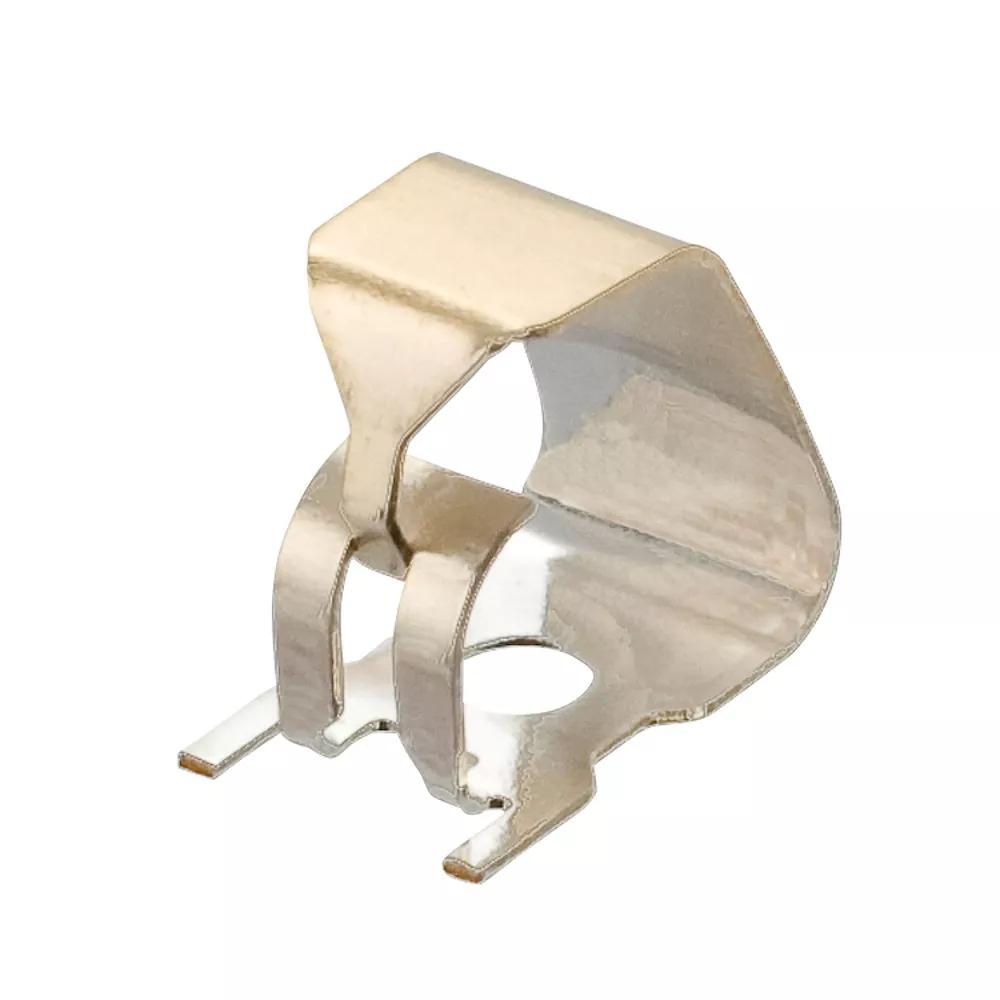

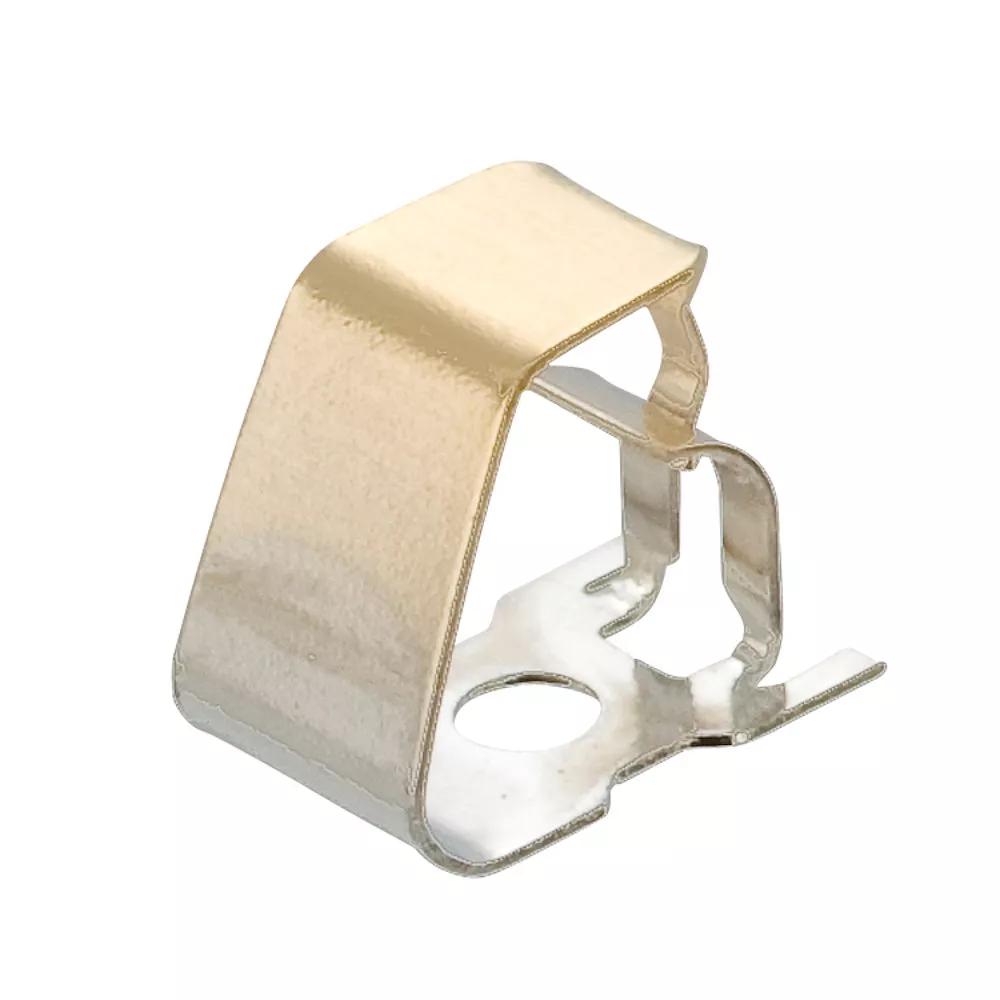

3.50mm SMT Spring Contact (T+R)
SMT Spring Contact
- Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Gold finish on contact area, Tin finish on termination.
- Protected tip prevents product from hooking.
- Free height = 3.5mm. Working height = 3mm, Minimum = 2.5mm.
EU RoHS Status:
Surface Mount (SMT)
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
4.05 x 2.50 x 3.50
Height of Connector above PCB:
42,530 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
